# Stagehand Pro 5: Features

Let’s talk about all the Capabilities and Features you can expect from this powerhouse motion controller:

### New Features <a href="#h.o3s85yaaoaop" id="h.o3s85yaaoaop"></a>

#### Split Acceleration and Deceleration <a href="#h.44xmnclt1exk" id="h.44xmnclt1exk"></a>

Write more complex cues with different ramp up and ramp down times

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-3719724e1add491858bc03d0bf33a00c380c3568%2FSplit%20AcelDecel.jpg?alt=media)

#### Large Graphical OLED Display <a href="#h.y9rdup5xtahz" id="h.y9rdup5xtahz"></a>

See more information at a glance rather than cycling through all the fault codes

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-f8f02524fe2690714569d4ba69ecdfdb7f13a777%2FDrive%20Fault%20-%20E.ECT%20Fault.png?alt=media)

#### Improved Load Cell Input <a href="#h.jt8lpem61g12" id="h.jt8lpem61g12"></a>

Detect changes in load with higher precision

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-317d39eafd6a25b373935f5cebe8afd3475ad3a2%2FJogging%20-%20P393%2C234%2C%20W1%2C294%20LB%20-%20Speed%20100%25.png?alt=media)

#### L21-30 Power Input <a href="#h.ky4rbykjiiuj" id="h.ky4rbykjiiuj"></a>

The Stagehand Pro now comes with a more easily attainable input power connector to connect to more attainable power distributions, including the option to custom order it with our traditional L15-30 Power Input Connector.

#### Increased Dynamic Braking Capacity <a href="#h.ubblic7kozn1" id="h.ubblic7kozn1"></a>

We have more than tripled the dynamic braking capacity to lower heavier loads, at faster speeds, for longer distances without overloading the drive.

#### VFD Parameter Library <a href="#h.5f6mp8jly2oc" id="h.5f6mp8jly2oc"></a>

Change VFD Parameter Set from Spikemark(5.5.2 or later) and not a VFD keypad

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-f03c4e17652abaca411ec583460ca24dfd64629a%2FVFD%20Pr%20from%20Spikemark.jpg?alt=media)

### Existing Features Still Here <a href="#h.7u1kvte6m2om" id="h.7u1kvte6m2om"></a>

* Onboard controls for jogging manually
* Spikemark connectivity with dead-simple addressing and plain ethernet networking
* Redundant Brake Circuits
* Integrated Brake Testing
* Redundant Limit Switch Circuits
* Limit Override Buttons
* Cross Grove Detection
* Discreet Interlock Circuits
* Position Feedback with PID Error Correction - in conjunction with an Encoder
* Full Vector Control - in conjunction with a speed encoder signal, The Stagehand Pro 5 can monitor the speed to hold the load still as the brakes release. Creating buttery smooth motion.
* Circuit Protection
* 3 circuit breakers and 2 time delay fuses

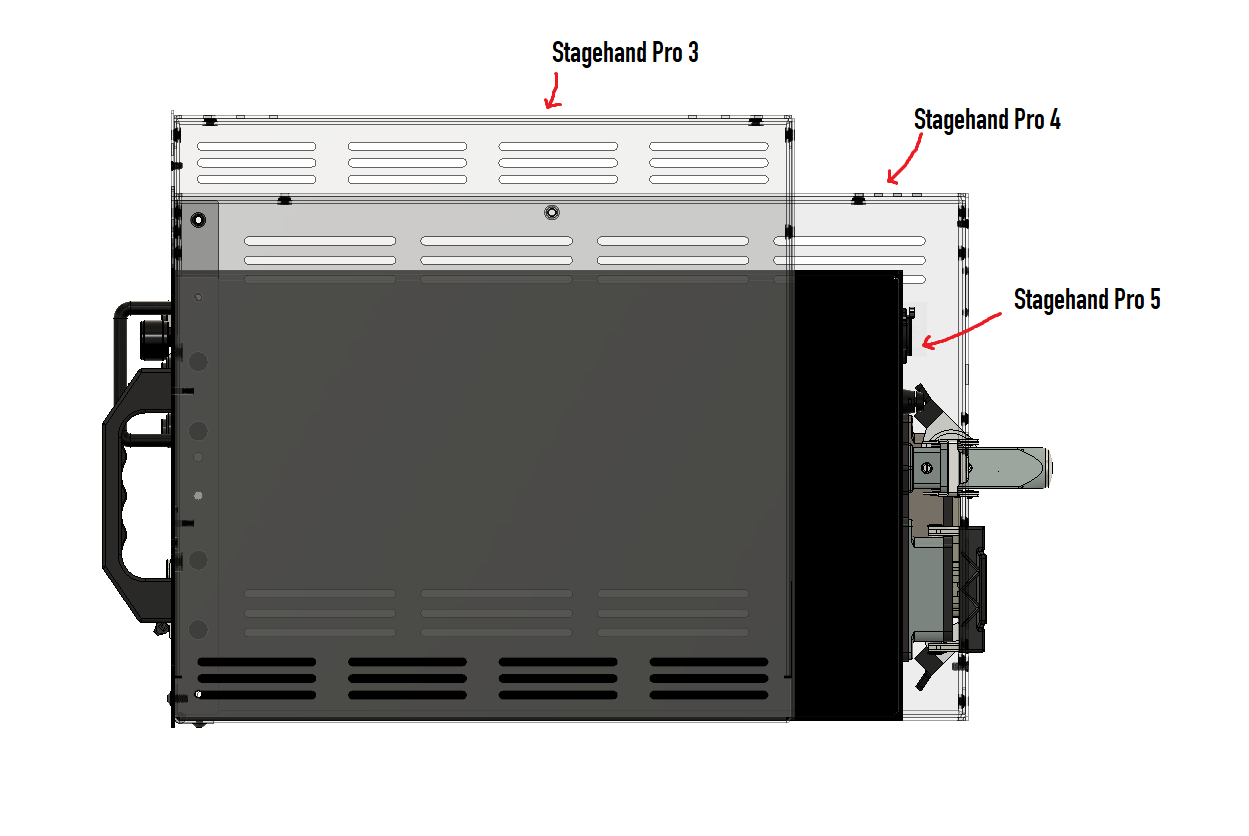

All of this is packed in a Smaller 6U Rack Enclosure

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-dd999e50a864af83639827cbf494bd26b45f902f%2FSize%20Comparison.png?alt=media" alt=""><figcaption></figcaption></figure>

### Capabilities <a href="#h.y8v91ickf8x2" id="h.y8v91ickf8x2"></a>

* 5 HP
* 3 Phase 200VAC-240VAC Input Power
* 30 Amp Max Draw
* 60Hz Speed \*can be overspeed to 120Hz at half capacity.
