Nearest Forward Multiple Spikes

Nearest Forward Multiple Spikes move the motor forward to the closest multiple of Factor plus Offset. Put another way:

$NewPosition=Round↑(CurrentMotorPosition/Factor)∗Factor+Offset$

Nearest Forward Multiple Spikes use the → icon in the Spike List to indicate that they are a nearest forward multiple.

Change The Type

To change the type of spike, select the spike in the Spike List and then select nearest forward multiple from the type dropdown menu.

Changing The Factor

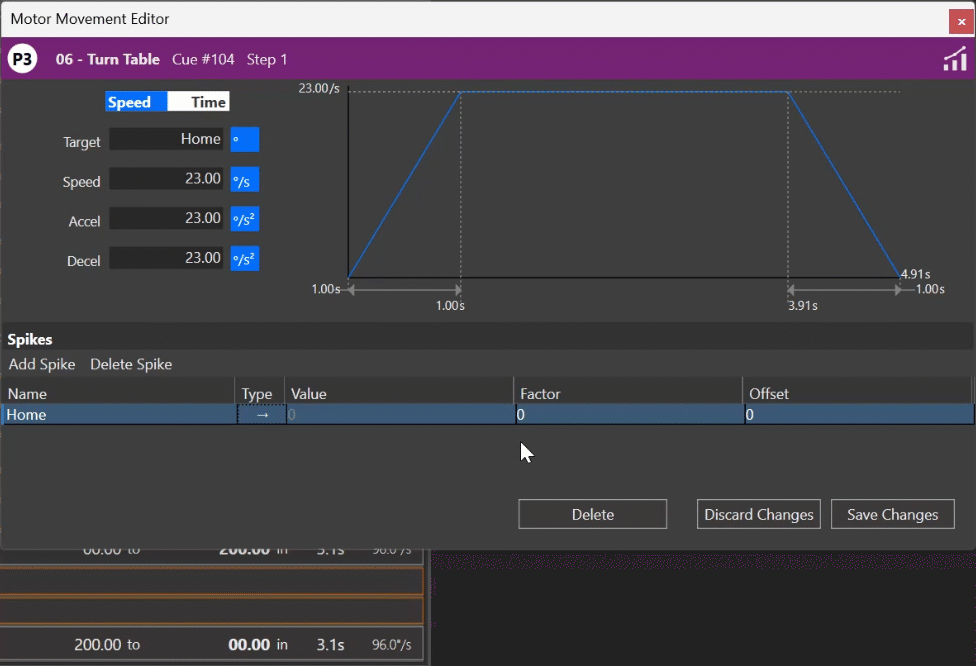

To change the factor double-click in the Factor column and give it a new factor.

Changing The Offset

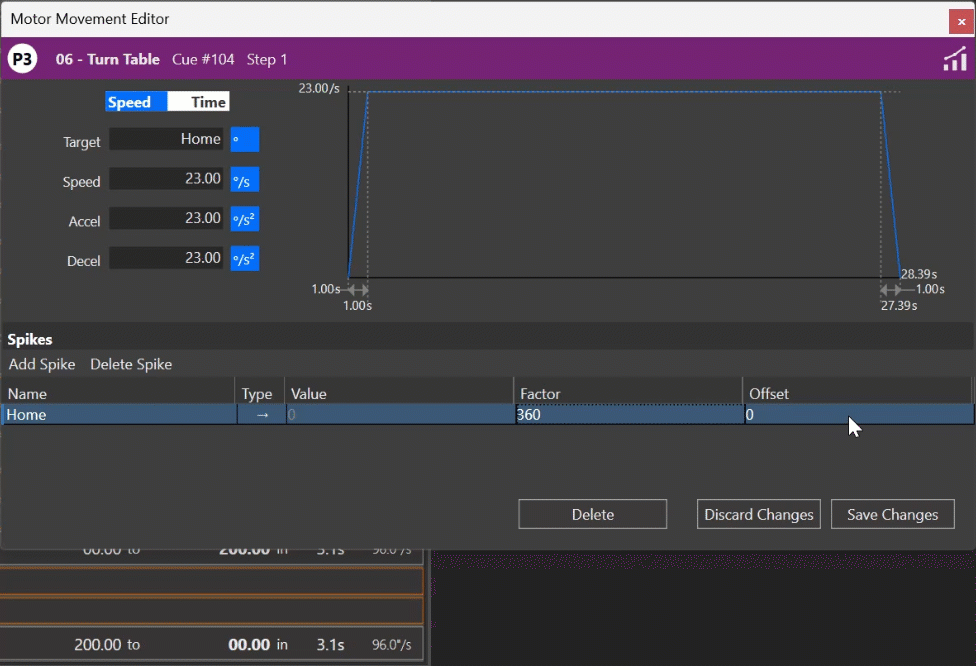

To change the offset double-click in the Offset column and give it a new offset.

Example

In this example we want to rotate the turntable forward to the 9 o'clock position (assuming upstage is 12 o'clock and downstage is 6 o'clock). For this we set our factor to 360 degrees (one full revolution) and our offset to 270 degrees (9 o'clock).
