Installation

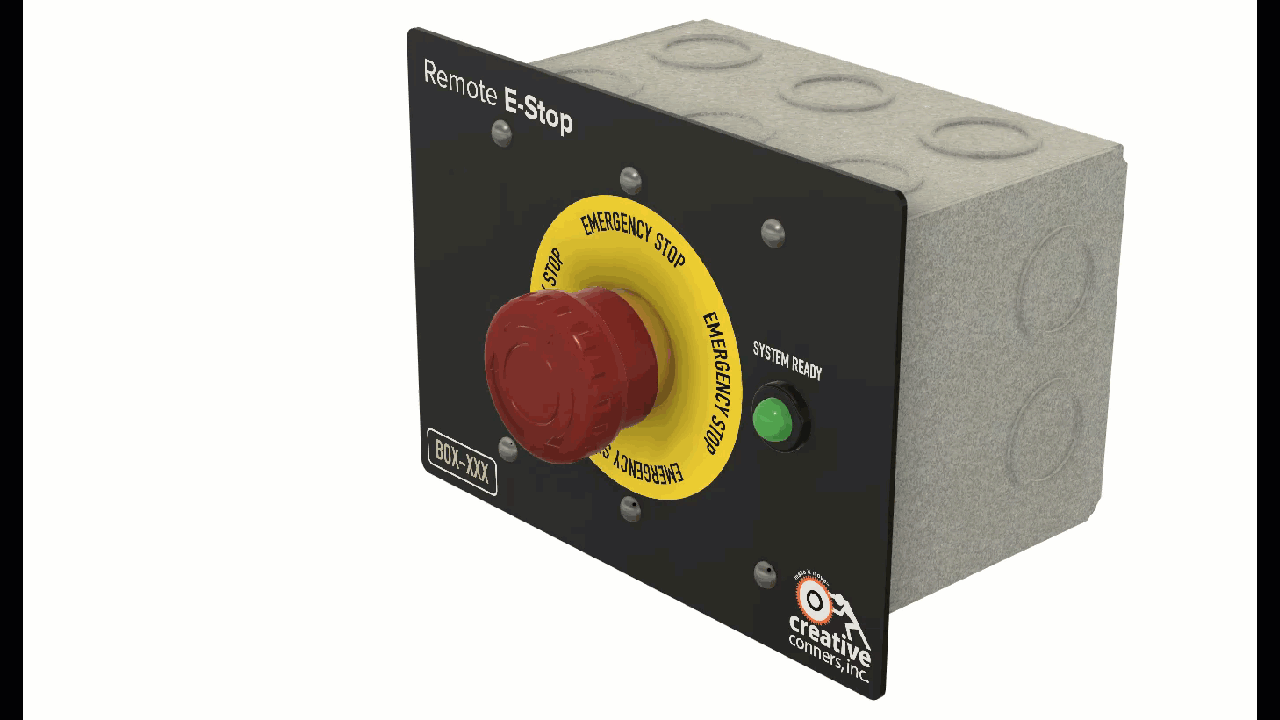

Portable Remote E-Stop

Plug your Showstopper Accessory Cable from the Showstopper Base to to your Showstopper 4 Remote E-Stop

If this is the last E-Sop device in the chain, make sure to move the Showstopper Accessory Terminator from the Showstopper Base to the output of the Showstopper Remote E-Stop

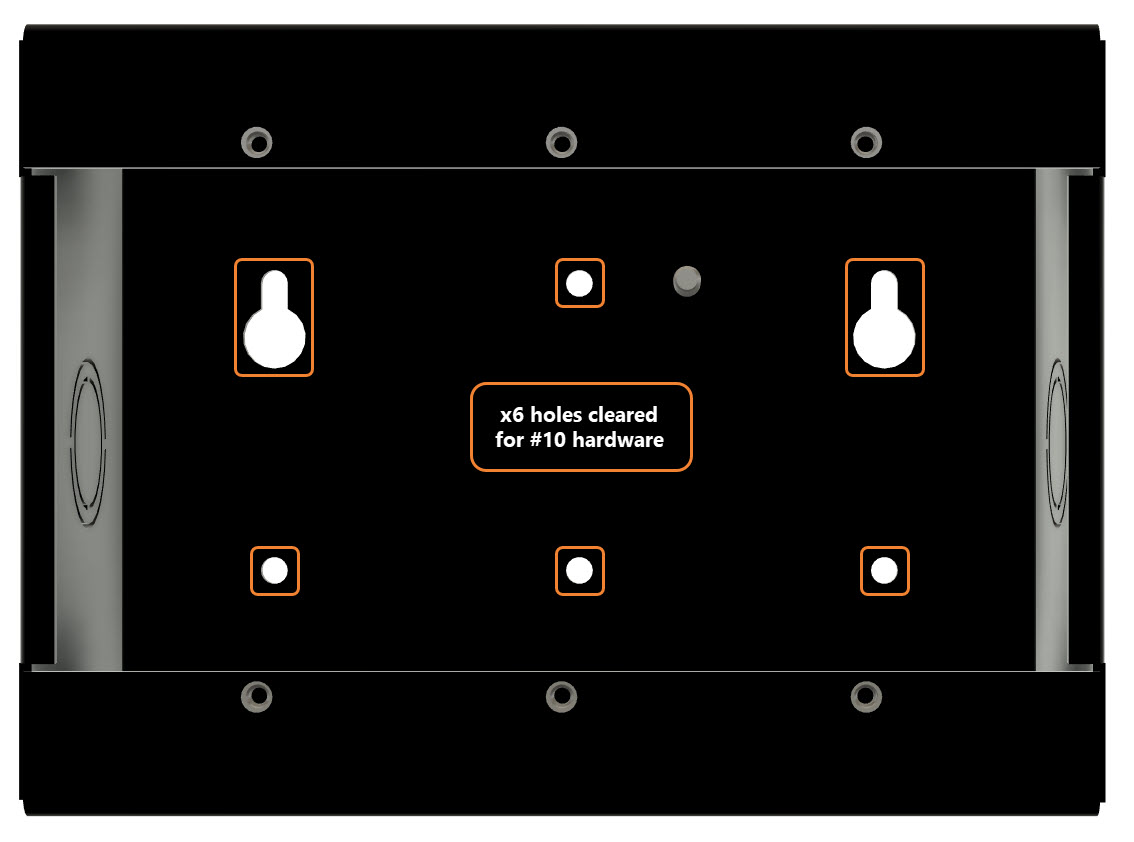

To install the box temporarily, install two pan head screws on a flat surface and hang the box from the two keyhole slots.

If needed, remove the face plate to expose the 4 additional mounting holes. After attaching the box, re-attach the face plate and start using your Remote E-stop

Surface Mount Remote E-Stop

The Surface Mount Remote E-Stop is intended for permanent installations.

Remove the face plate and install the box on the wall using the mounting holes.

The Surface Mount box includes 1/2" & 3/4" knockouts on all 4 sides.

Make the field terminations as shown here.

Re-attach the face plate and start using your Remote E-stop

Flush mount Remote E-Stop

The Surface Mount Remote E-Stop is intended for permanent installations.

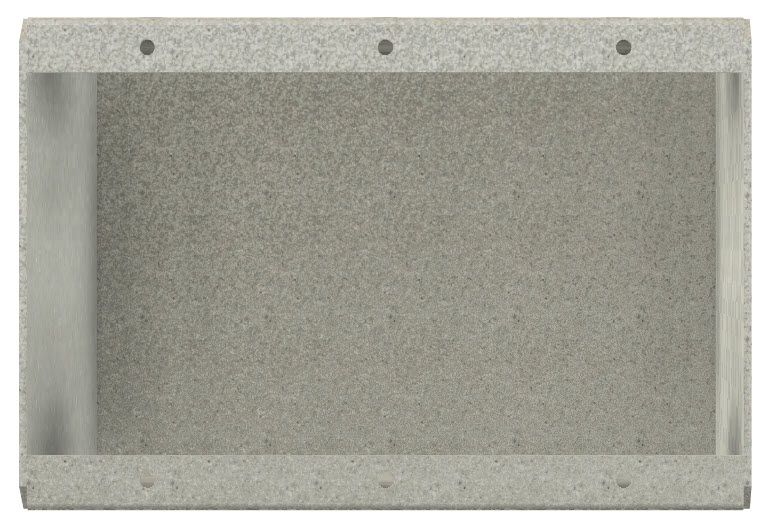

Install a standard 3 Gang Box purchased separately in your wall

Make the field terminations as shown here.

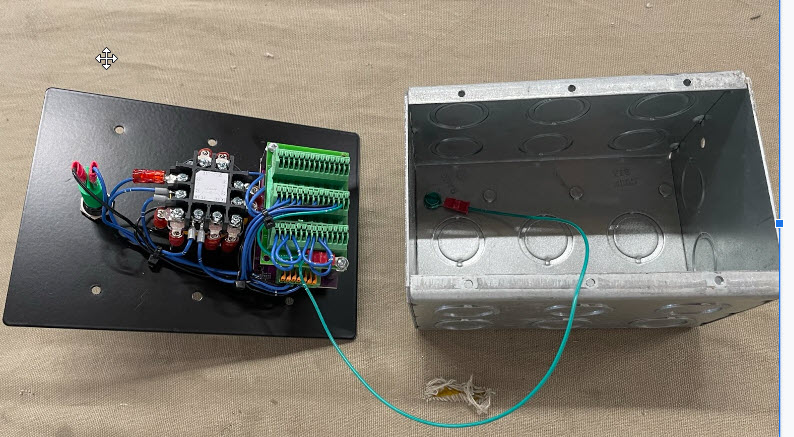

Attach the faceplate ground wire to the back of the box

Attach the face plate and start using your Remote E-stop
