Power Up

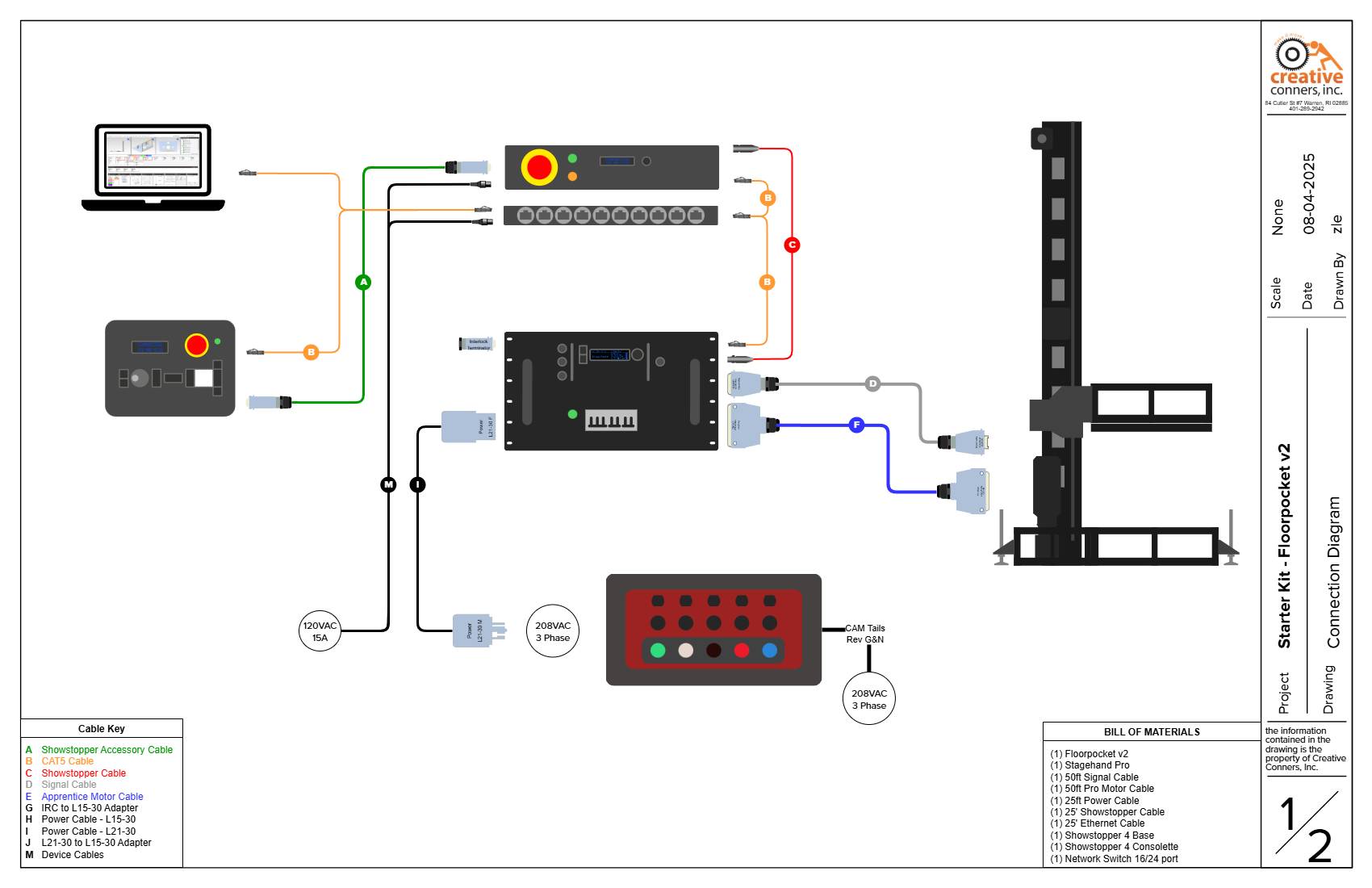

Connect Cables

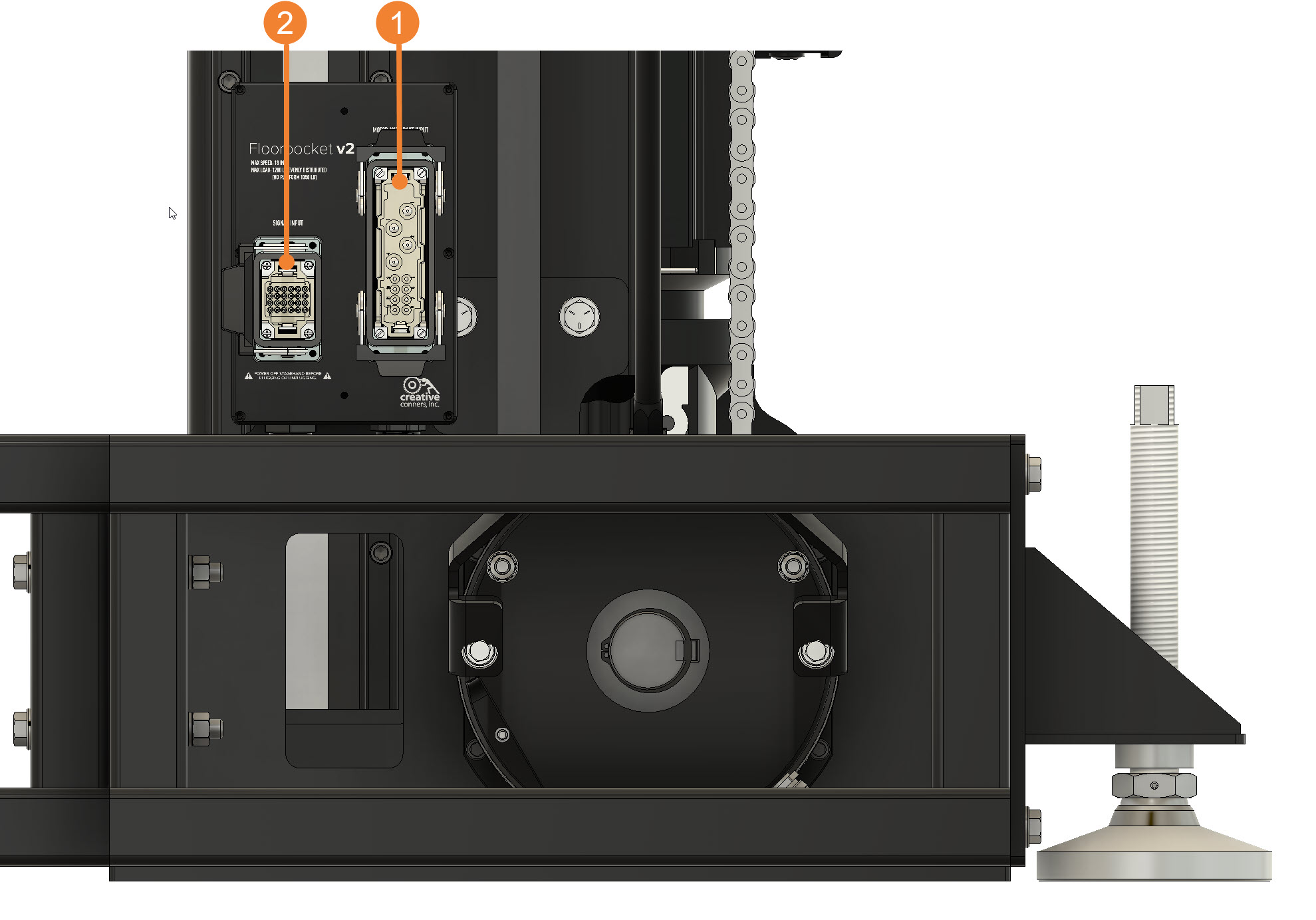

Connect Cables from Stagehand Pro to Floorpocket

  1. Motor Cable

  2. Signal Cable

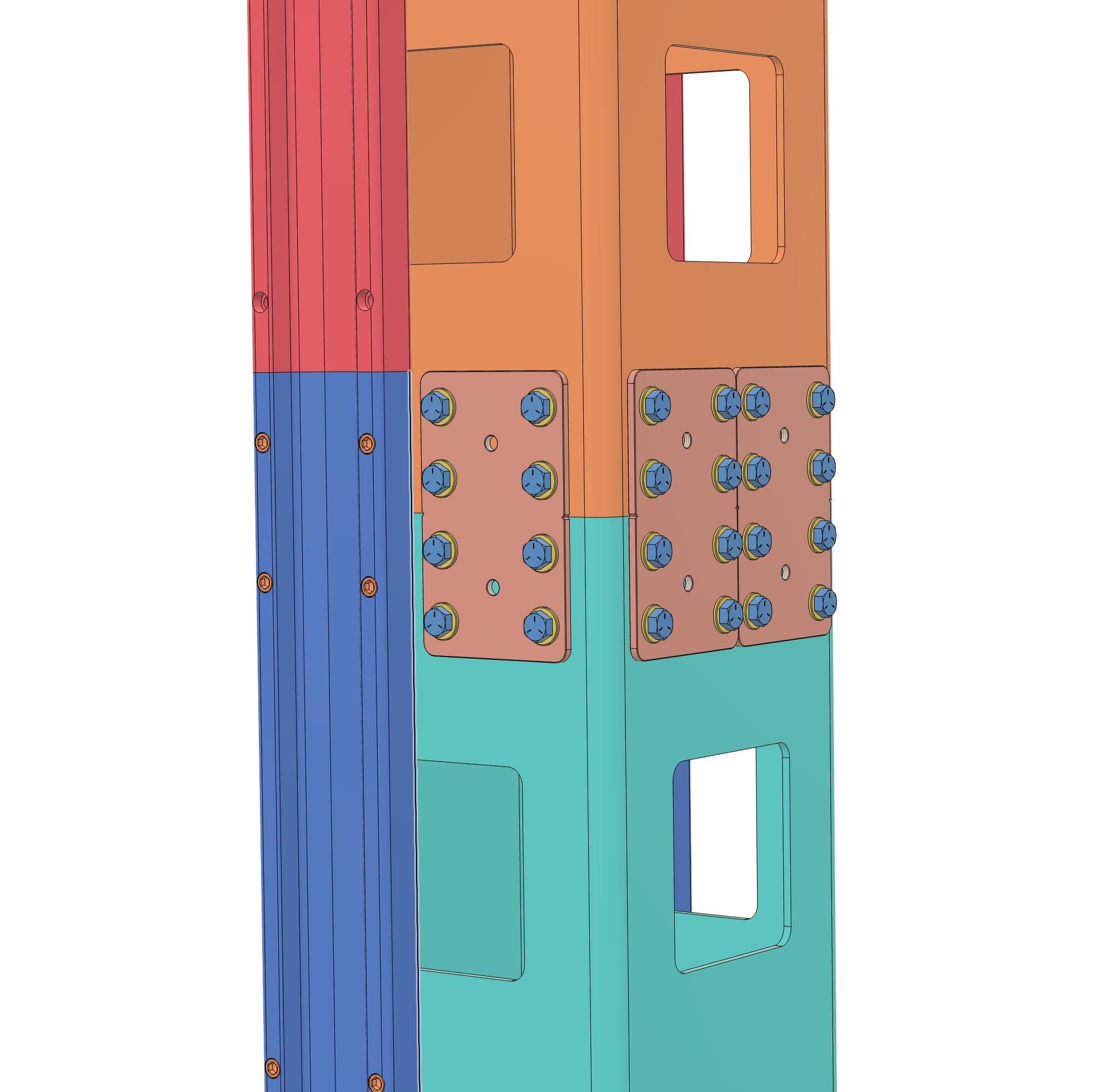

Check Seam Alignment

Jog carriage up and down to check seam alignment.

The carriage should smoothly pass over the seam of the hevi-rail. If the carriage does not smoothly pass over the seam, crack open the bolts connecting the 2 masts together adjust and align, then re-tighten the bolts. Adding in some machine shims may help with alignment.
