# Stagehand Pro+

## Original Versions of the Stagehand Pro

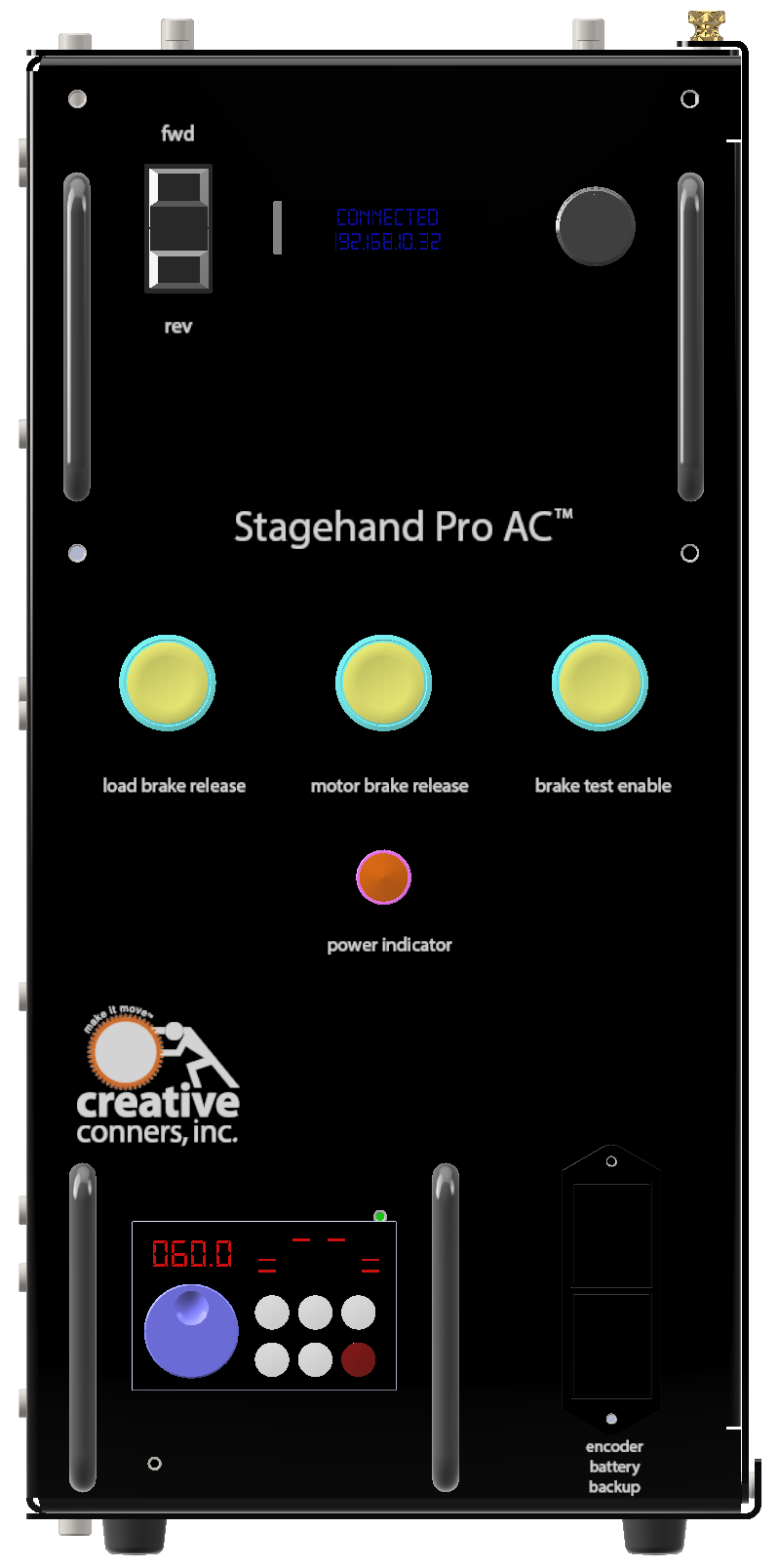

<div data-full-width="true"><figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-7366b56a3cf412625dc50d7a9bc73c788dda9488%2FPro%202%20Front%20Crop.png?alt=media" alt=""><figcaption><p>Pro 2 (2013-2018)</p></figcaption></figure> <figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-156fdda05fa3c0e7c5df7f0c019abefa6f1b24b9%2FStagehand%20Pro%20v3%205HP%20-%20RENDER%20v36.png?alt=media" alt=""><figcaption><p>Pro 3 (2018-2021)</p></figcaption></figure> <figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-414c9c5f16dcfa8b5b718928edaab878d208541c%2FStagehand%20Pro%204%20-%205HP%20Rendering%20v8.png?alt=media" alt=""><figcaption><p>Pro 4 (2021-2023)</p></figcaption></figure></div>

Over the last decade we have introduced several versions of the Stagehand Pro with progressively more capabilities and features. The Stagehand Pro+ brings those previous generations up to date to our latest iteration, Stagehand Pro 5, while maintaining as much of the original packaging as possible for a much more cost-effective upgrade.

At the heart of the upgrade is a brand new Stagehand Control Card, powered by an ARM Cortex M4 processor and a PMD (Performance Motion Devices) Magellan motion chip. This new architecture breaths new features, like split accel/decel and limit overrides into any generation of Stagehand Pro!

## Pro+ New Features <a href="#h.o3s85yaaoaop" id="h.o3s85yaaoaop"></a>

### Split Acceleration and Deceleration <a href="#h.44xmnclt1exk" id="h.44xmnclt1exk"></a>

Write more complex cues with different ramp up and ramp down times

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-3719724e1add491858bc03d0bf33a00c380c3568%2FSplit%20AcelDecel.jpg?alt=media)

### Large Graphical OLED Display <a href="#h.y9rdup5xtahz" id="h.y9rdup5xtahz"></a>

See more information at a glance rather than cycling through all the fault codes

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-f8f02524fe2690714569d4ba69ecdfdb7f13a777%2FDrive%20Fault%20-%20E.ECT%20Fault.png?alt=media)

### Built-In Brake Testing

Instead of big, bulky buttons for brake tests, you can simply navigate to brake test function on the card

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-a368254c93255b367a43351dad0b295217789786%2FStagehand%20Setting%20Select%20Perform%20Brake%20Test.png?alt=media)

### Limit and Sensor Overrides

The limit and sensor override status displays on the Stagehand Display as well as in Spikemark

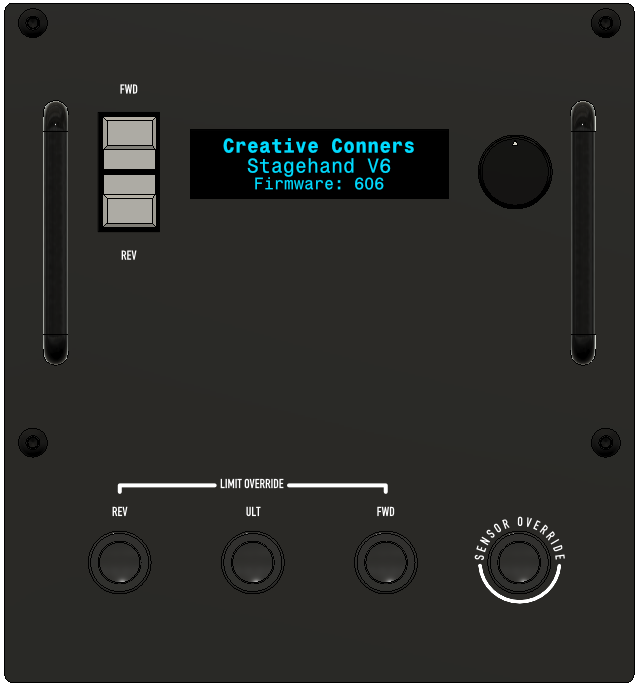

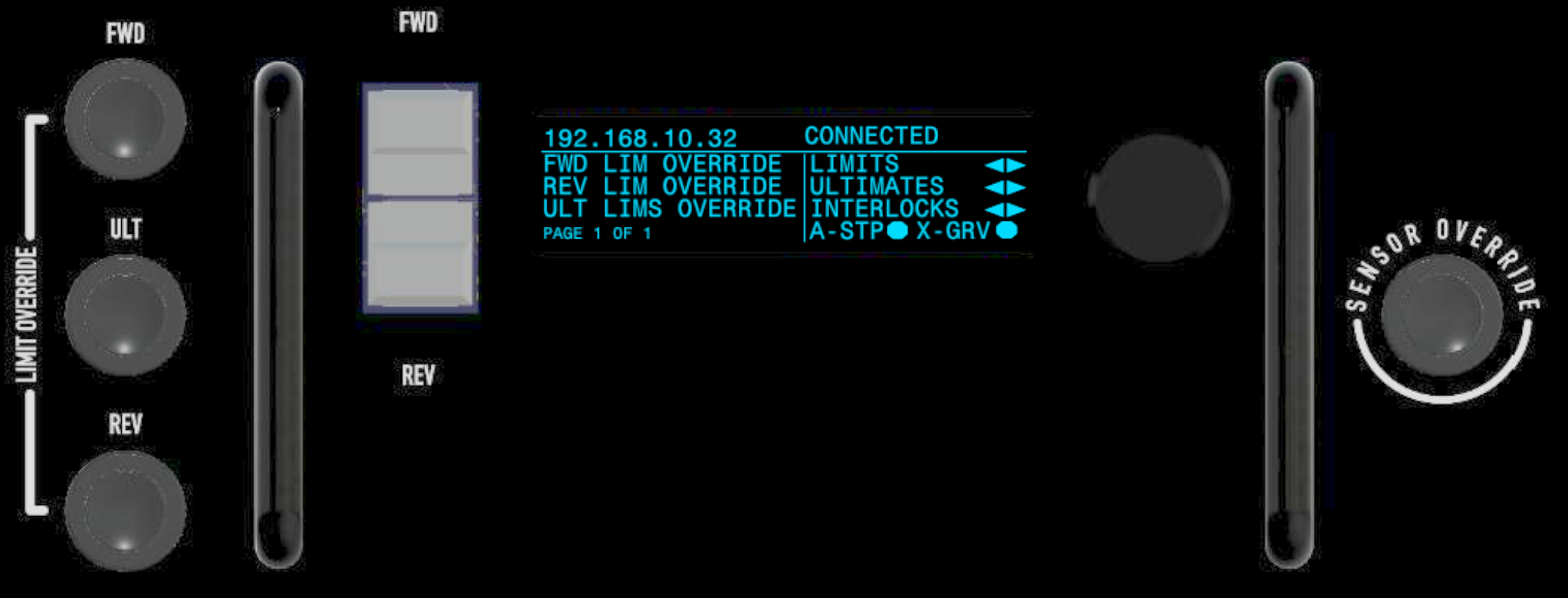

<div><figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-16657f4913ad3cfc92c4d80e61d7a4f006824694%2FStagehand%20Pro%202%2B%20Face%20-%20NOT%20actual%20graphic.png?alt=media" alt="" width="320"><figcaption><p>Pro 2+</p></figcaption></figure> <figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-8e5fc3dfab8475e66f0a38ade4db62d74ac635cd%2FLimit%20Overrides.png?alt=media" alt="" width="563"><figcaption><p>Pro 3/4+</p></figcaption></figure></div>

### Improved Load Cell Input <a href="#h.jt8lpem61g12" id="h.jt8lpem61g12"></a>

Detect changes in load with higher precision

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-317d39eafd6a25b373935f5cebe8afd3475ad3a2%2FJogging%20-%20P393%2C234%2C%20W1%2C294%20LB%20-%20Speed%20100%25.png?alt=media)

### Control Circuit Protection

Since we haven't needed the battery backup since Spikemark 3, we replaced the oldest Pros with much needed fuse protection for the control and encoder circuits

### **VFD Parameter Library**

Change VFD Parameter Set from Spikemark(5.5.2 or later) and not a VFD keypad

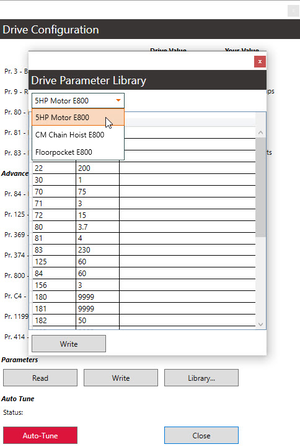

<div align="left"><figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-6a989eee49bc148993b7d0a274110b360eccaeda%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure></div>

## Parameters

With upgraded features comes updated Parameters.

{% hint style="info" %}
**Check out the full list** [**here**](https://docs.creativeconners.com/docs/stagehand/stagehand-parameters/pro+-parameters)**.**
{% endhint %}

## Troubleshooting

The same basic troubleshooting you'll find here holds true with the Pro+, but we did make some changes, so there are a few additional steps to take before reaching out.

### Power

* The Green Power Indicator is not on
  * Check the power is connected and any breakers are turned on
  * Confirm (with a meter) you have 208VAC 3P
* The Stagehand Display isn't on but the Green Power Indicator is
  * Check the 24VDC control fuse

### Encoder

* Encoder counts are not changing on the Stagehand Display
  * Check the 5VDC encoder fuse (depending on Pro version)
  * Check encoder cable connections

### Emergency Stop

* Emergency Stop is Displayed on the Stagehand Display
  * An e-stop is engaged or the Showstopper cable is not connected
  * Confirm the Showstopper Base is operating
* VFD Keypad is displaying "SA"
  * The E-stop is engaged - release the e-stop
    * engage the e-stop then release to clear the Safety Controller
