Stagehand Pro 4: Operation

The next pages step through how to operate machinery using the Stagehand Pro AC

The next pages cover:

• Powering Up and Connecting to Spikemark

• Manual Operation(Jogging) and Persistent Position

• Conducting a Brake Test

• Understanding the Status Displays

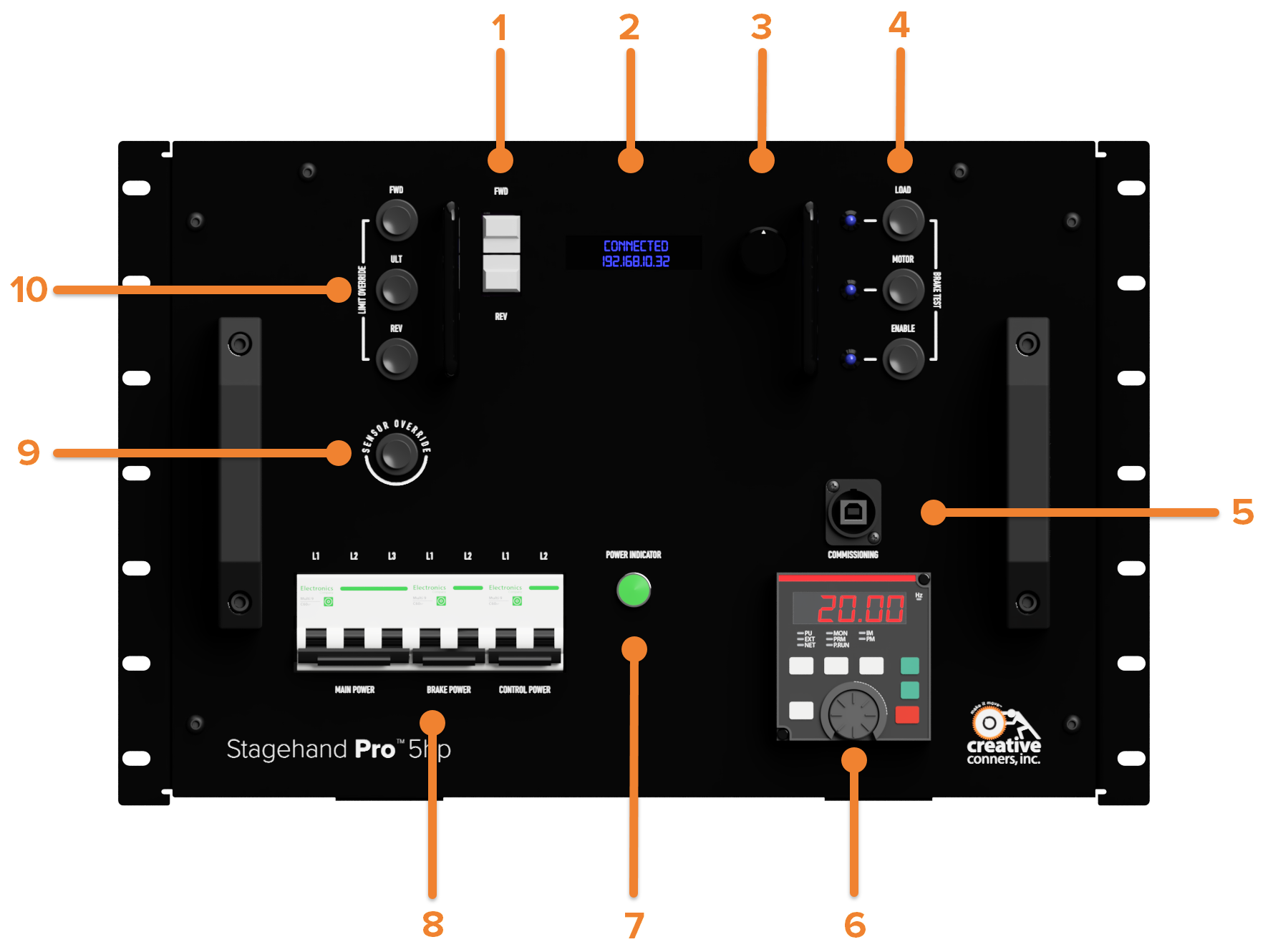

Front Panel Overview

1. Forward & Reverse Jog Buttons

2. Stagehand Display

3. Jog Wheel

4. Brake Test Buttons

5. Commissioning Port (factory use only)

6. VFD Keypad

7. Power Indicator

8. Branch Circuit Protection

   1. Main Power

   2. Brake Power

   3. Control Power

9. Sensor Override

10. Limit Override Buttons
