Stagehand Apprentice 2: Making The Connections

You can get a motor moving with five connections, but to take full advantage of the features you'll need to connect to the other system components.

Plug in your Stagehand

What you will need

• 5hp AC Induction Machine

• Showstopper Base

• PC Computer running Spikemark 5 Software

• Cables

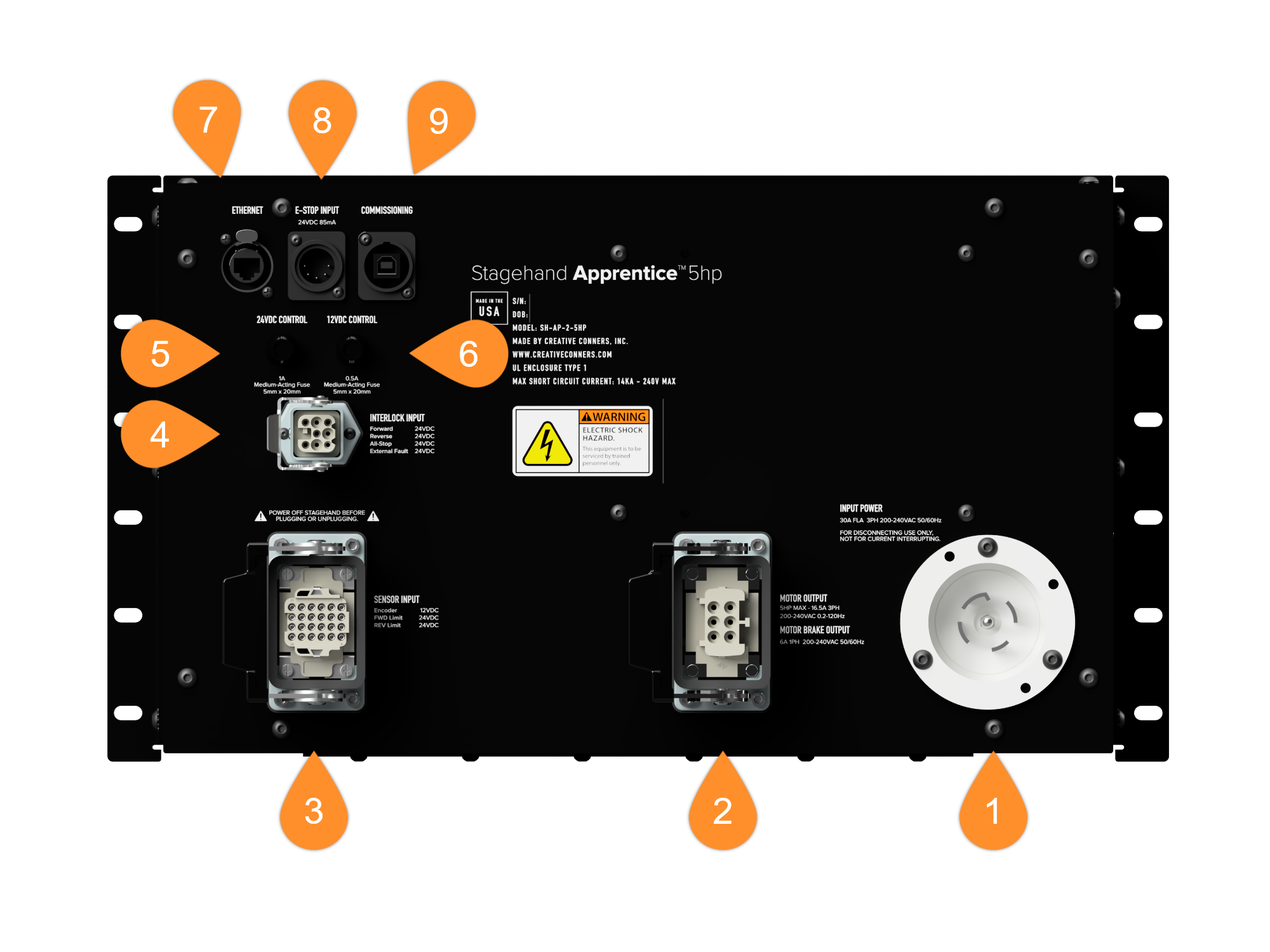

Back panel overview

1. Input Power

2. Motor Output

3. Signal Output

4. Interlock Output

5. 24VDC fuse

6. 12VDC fuse

7. Ethernet Input

8. E-Stop Input

9. Commissioning port (factory use)

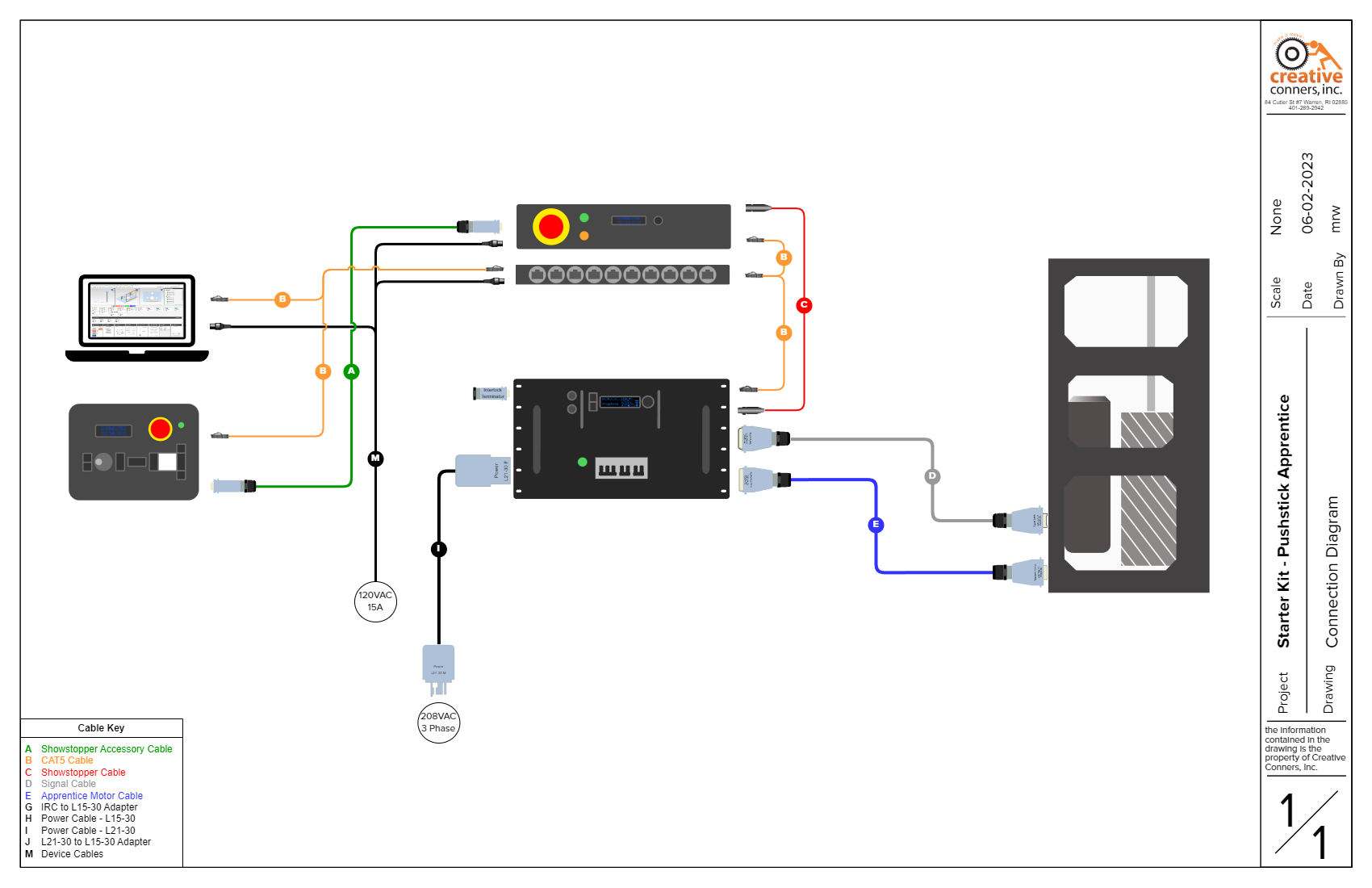

System Diagram

Here's a basic system diagram, showing all the components connected to the Stagehand Apprentice 2.
