How to Use the Mitsubishi VFD Keypad

Change parameters using the VFD Keypad on your Stagehand

The VFD keypads for the Stagehand Apprentice, Stagehand Pro 3e & Stagehand Pro 5 are located inside the controller.

The Stagehand and VFD need to be energized in order to adjust the parameters. Exercise extreme caution as there is live voltage inside the case.

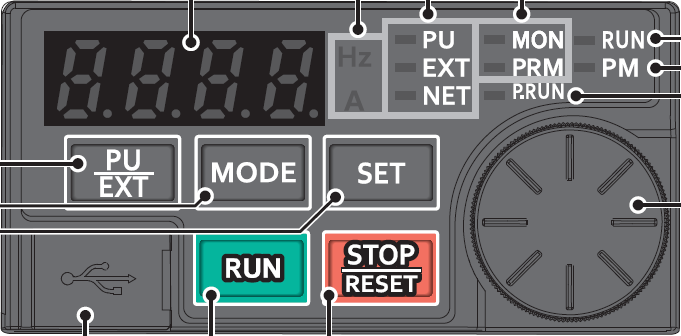

A700

A800

E800

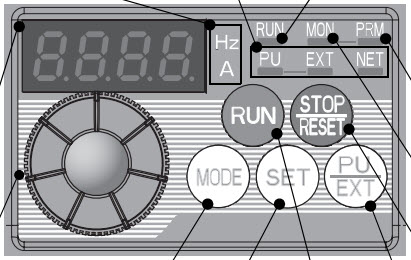

D700

Set Parameter 77 = 2 before jumping into manually entering parameters! Parameter 77 must be set to 2 in order for other parameters to be written

1. Press until P.0 is displayed

2. Use the scroll wheel to select a parameter to set

3. Press the button. The screen will display the current value setting.

4. Change the value with the wheel.

5. Once you are set to the correct value, press to confirm the value -- the display will flash between the parameter number and the new value.

6. Use the wheel to scroll to the next parameter

7. Repeat the steps above for all parameters that you are changing.

8. Lastly, cycle power to your Stagehand
