Docs
Download Spikemark
  • Creative Conners Docs
  • Technical Support
    • Tech Tips
      • Revolver V1 Position Issues
      • Setting Up a New Comptuer for Spikemark
  • Spikemark 6
    • Navigating Spikemark
      • Show Modes
      • Workspaces
        • Jog Workspace
        • Cues Workspace
        • Preset Workspace
        • Customize Your Workspace
      • Selection and Input
      • Tags
      • Filters
      • Search
      • Keyboard Shortcuts
    • Cues
      • Cue Structure
      • Cue Creation
        • Add Movements
        • Add Triggers
        • Add Actions
      • Editing Cue Properties
      • Cue Deletion
    • Movements
      • Motor Movements
      • Movement Analyzer
      • Locked Group Movements
      • Unlocked Group Movements
      • FX Movements
      • OSC Movements
        • Custom OSC Command Library
      • UDP Movements
      • Modbus Movements
    • Triggers
      • Playback Go Trigger
      • Delay Trigger
      • Completion Trigger
      • Position Trigger
      • FX Input Trigger
      • Stacking Triggers
    • Actions
      • Motor Property Action
      • Motor Method Action
      • Playback Property Action
    • Running Cues
      • Playbacks
        • Playback Editing
        • Playback Control Speed
        • Playback Stacking
      • Cue Controls
      • Console
      • Consolette
      • Restore Cue
    • Spikes
      • Simple Spikes
      • Dynamic Spikes
        • Incremental Spikes
        • Nearest Forward Multiple Spikes
        • Nearest Reverse Multiple Spikes
        • Nearest Multiple Spikes
      • Locked Group Spikes
    • Presets
      • Creating, Editing, and Deleting Presets
      • Running Presets
    • User Authentication and Authorization
      • Overview
      • Users
      • Roles
      • Permissions
    • Show Control
      • Open Sound Control (OSC)
        • Send OSC Messages
        • OSC Position Output
        • OSC Input Trigger
          • OSC Input Messages
          • Cue Messages
          • Playback Messages
          • Sequence Step Messages
          • Motor Movement Messages
          • Motor Messages
        • Troubleshooting OSC
          • OSC Response Window
          • Medialon Manager Configuration
      • UDP
        • Send UDP Messages
        • UDP Position Output
      • Watchout Position Output
      • PosiStageNet (PSN)
  • Spikemark 5
    • How to Open Spikemark
    • Spikemark Installation
      • User Authorization
      • Windows Settings
    • Quick Start Tutorial
      • Step 1: Adding Motors
        • 1.1 Simulator Mode
        • 1.2 Add Motors from the Machine Library
        • 1.3 Rename Motors
        • 1.4 Add A Group
      • Step 2: Saving
      • Step 3: Jogging
        • 3.1 Single Axis Jogging
        • 3.2 Jogging Multiple Machines (Multi-Jog)
        • 3.3 Move To Position
      • Step 4: Writing Your First Cues
        • 4.1 Cues Workspace
        • 4.2 Add A Movement
        • 4.3 Duplicate A Cue
        • 4.4 Delete A Movement From A Cue
        • 4.5 Edit Movement - Changing Position, Speed, and Time
        • 4.6 Copy to Group
        • 4.7 Cue Total Time
        • 4.8 Load and Run your Cue
        • 4.9 Spikes
        • 4.10 Cue Links
        • 4.11 Restore Cue
        • 4.12 Delete A Cue
      • Step 5: Going Live
        • 5.1 Set Your IP Address
        • 5.2 Test Manual Movement
        • 5.3 Resetting Position
        • 5.4 Program Your Show
      • Sharpen Your Programming Skills
    • Steps to a Successful Load-In
    • Show Modes
    • Locking Changes
    • Workspaces
      • Customize Your Workspace
    • Selection and Input
    • IP Address and Network Connection
      • Setting Computer IP Address
      • Setting Stagehand IP Address
      • Setting Showstopper Consolette IP Address
      • Setting Pendant IP Address
      • Setting Showstopper IP Address
      • Setting Showstopper Node ID
      • Connecting To A Stagehand
      • Connecting To A Showstopper Consolette
      • Connecting To A Pendant
    • Adding Motors or Machines
      • Adding Motors or Machines From The Machine Library
      • Adding Custom Motors or Machines To Spikemark
      • Importing Motors or Machines
      • Exporting Motors or Machines
    • Stage Model Viewer
      • Changing Your Viewer
      • Adjusting the Stage Size
      • Changing the Type of Scenery
      • Adjusting Model Dimensions
      • Adjusting Model Rotation
      • Adjusting Location On Stage
      • Making Models
        • Modeling A Winch
        • Modeling A Lift
        • Modeling A Hoist
        • Modeling A Vertical Curtain
        • Modeling A Split Curtain
        • Modeling A Turntable or Periaktos
    • Tags
    • Editing Direction Labels
    • Filters
    • Search
    • Position
      • Reset Position
      • Units
      • Position Scale
        • Position Scale Wizard
        • Manually Calculate Position Scale
      • Limits
        • Setting Hard Limits
        • Setting Soft Limits
      • Target Tolerance
      • Strict Timing Mode
      • Position Fault and Max Position Error
      • Motor Tuning Overview
        • Motor Tuning - The Practical Approach
    • Load Cell
      • Load Cell Readout
      • Load Cell Configuration
      • Load Cells and Groups
    • Speed
    • Spikes
      • Adding A Spike
      • Removing A Spike
      • Spike Input Fields
      • Simple Spike
      • Incremental Spike
      • Nearest Forward Multiple Spike
      • Nearest Reverse Multiple Spike
      • Nearest Multiple Spike
    • Editing Cues
      • Adding and Deleting Cues
      • Adding and Deleting Movements
      • Edit Movement
      • Edit Cue Options
    • Cue Controls
    • Cue Status
    • Cue Links
      • Completion Link
      • Time Link
      • Position Link
      • Input Link
      • Deleting A Cue Link
    • Presets
    • Motor Groups
    • Showstopper Node Editor
    • Show Control
      • Open Sound Control (OSC)
        • OSC Position Output
        • OSC Messenger
          • Expanding The Command Library
        • OSC Response Window
        • OSC Input Trigger
          • Input Messages
          • Cue Commands
          • Motor Commands
          • My OSC Input Trigger Isn't Working, Is there another way?
      • UDP
        • UDP Position Output
        • UDP Messenger
      • Watchout Position Output
      • Modbus Effect
      • PosiStageNet (PSN)
    • Drive Communication
      • Drive Information
      • Configuring The Drive
      • Analyzing Movements
      • Drive Communication: Compatibility
      • Drive Communication: Setting VFD Parameters
      • RS-485 Upgrade
        • Upgrading an A800
        • Upgrading an A700
        • Drive Communication Troubleshooting
      • VFD Fault Codes
    • Motor Status Icons
    • Keyboard Shortcuts
    • Advanced Cue Techniques
  • Showstopper
    • Showstopper 4 Base
      • Installation
      • Operation
      • Troubleshooting
      • Specifications
    • Spikemark Console
      • Making-The-Connections
      • Using-the-Console
      • Console-Firmware
      • Troubleshooting
      • Specifications
    • Spikemark Pendant V2
      • Getting Started
      • Setup
      • Operation
      • Troubleshooting
      • Specifications
      • Drawings
    • Showstopper 4 E-Stop Hub
      • Getting Started
      • Installation
      • Operation
      • Troubleshooting
      • Specifications
    • Showstopper 4 Accessory Hub
      • Getting Started
      • Installation
      • Operation
      • Troubleshooting
      • Specifications
    • Showstopper Remote E-Stop
      • Installation
      • Making The Connections
      • Operation
      • Troubleshooting
      • Specifications
    • Control Connection
      • Installation
      • Making The connections
      • Operation
      • Troubleshooting
      • Specifications
    • Drive Connection
      • Installation
      • Making The connections
      • Operation
      • Troubleshooting
      • Specifications
    • Showstopper E-Stop Patch Panel
    • Showstopper Accessory Patch Panel
    • 🦺Safety Interlock
      • Safety Interlock Classic
      • Safety Interlock Pro
      • Safety Interlock Pro 4
      • 4-Axis Safety Interlock
    • Legacy
      • Showstopper 3 Base
      • Showstopper 3 Remote
      • Showstopper 3 E-Stop Patch Panel
      • Stage Manager
        • Getting Started
        • Installation
        • Making the Connections
        • Operation
        • Troubleshooting
        • Specifications
      • Showstopper 4 Consolette
        • Features
        • Making the Connections
          • Accessory Cable Connection
          • Ethernet Connection
          • Multiple Consolettes
        • On-Board Settings
        • Operation & Spikemark Integration
        • Connecting the Consolette to Spikemark
        • Jogging Motors
        • Running Cues
        • Emergency Stop
        • Updating Consolette Firmware
        • Troubleshooting
        • Physical Specifications
        • Drawings
  • Stagehand
    • Stagehand Firmware
      • Manually Updating a Stagehand Unipolar V6 Card via SD Card
      • Manually Updating a Stagehand Unipolar V6 Card via USB
    • Stagehand Parameters
      • Stagehand Pro 2 Parameters
      • Stagehand Pro 3/Pro 4 Parameters
      • Stagehand Pro 3e Parameters
      • Stagehand Pro 5 Parameters
      • Stagehand Apprentice 2 Parameters
      • Stagehand Apprentice
      • Stagehand AC - AKA: The Classic
      • Classic+ Parameters
      • Pro+ Parameters
      • Setting the C3 Value
      • Setting the C4 Value
      • All Clear/Parameter Clear
      • How to Use the Mitsubishi VFD Keypad
      • USB Parameter Sets
      • Parameter Library in Spikemark
    • Stagehand Apprentice
      • Getting Started
      • Installing the Stagehand
      • Making the Connections
      • Hooking up a motorized effect
      • Using the Stagehand
      • Troubleshooting
      • Technical Support
      • Specifications
    • Stagehand Apprentice DC
    • Stagehand Apprentice 2
      • Stagehand Apprentice 2: Features
      • Stagehand Apprentice 2: Installation
      • Stagehand Apprentice 2: Making The Connections
        • Stagehand Apprentice 2: Power Input
        • Stagehand Apprentice 2: Motor and Brake Output
        • Stagehand Apprentice 2: Sensor Input
        • Stagehand Apprentice 2: Interlock Inputs
        • Stagehand Apprentice 2: Ethernet Input
        • Stagehand Apprentice 2: Showstopper Emergency Stop Input
      • Stagehand Apprentice 2: Operation
      • Stagehand Apprentice 2: Troubleshooting
      • Stagehand Apprentice 2 Specifications
      • Stagehand Apprentice 2: Drawings
    • Stagehand FX
      • Getting Started
      • Making the Connections
      • Connecting an Effect
      • Operation
      • Troubleshooting
      • Specifications
    • Stagehand Hydraulic
      • Getting Started
      • Features
      • Installation
      • Operation
      • Troubleshooting
      • Technical Support
      • Specifications
      • Drawings
    • Stagehand Pro 3
    • Stagehand Pro 3E
    • Stagehand Pro 4
      • Stagehand Pro 4: Unpacking
      • Stagehand Pro 4: Installation
      • Stagehand Pro 4: Making The Connections
        • Stagehand Pro 4: Power Input
        • Stagehand Pro 4: Motor and Brake Output
        • Stagehand Pro 4: Sensor Input
        • Stagehand Pro 4: Interlock Inputs
        • Stagehand Pro 4: Ethernet Input
        • Stagehand Pro 4: Showstopper Emergency Stop Input
      • Stagehand Pro 4: Operation
        • Stagehand Pro 4: Powering Up
        • Stagehand 4: Machine Configuration
        • Stagehand Pro 4: Manual Operation (Jogging)
        • Stagehand Pro 4: Brake Test
        • Stagehand Pro 4: Connecting to Spikemark
        • Stagehand Pro 4: Status Displays
      • Stagehand Pro 4: Troubleshooting
        • Stagehand Pro 4: Recovering From Faults
        • Stagehand Pro 4: Monitoring Behavior
      • Stagehand Pro 4: Specifications
      • Stagehand Pro 4: Drawings
    • Stagehand Pro 5
      • Stagehand Pro 5: Features
      • Stagehand Pro 5: Installation
      • Stagehand Pro 5: Making The Connections
        • Stagehand Pro 5: Power Input
        • Stagehand Pro 5: Motor and Brake Output
        • Stagehand Pro 5: Sensor Input
        • Stagehand Pro 5: Interlock Inputs
        • Stagehand Pro 5: Ethernet Input
        • Stagehand Pro 5: Showstopper Emergency Stop Input
      • Stagehand Pro 5: Operation
      • Stagehand Pro 5: Troubleshooting
      • Stagehand Pro 5 Specifications
      • Stagehand Pro 5: Drawings
      • Stagehand Pro 5: Replace Control Card
    • Deck Chief 2
      • Getting Started
      • Features
      • Making the Connections
      • Using the Deck Chief
      • Troubleshooting
      • Specifications
    • Stagehand Classic+
    • Stagehand Pro+
    • Legacy Manuals
      • Deck Chief
        • Getting Started
        • Installation
        • Making the Connections
        • Using the Deck Chief
        • Troubleshooting
        • Specifications
        • Deck Chief Legacy Connections
      • Stagehand Mini^2
      • Stagehand Pro AC (Pro 2)
      • Stagehand AC
      • Stagehand Mini
      • Stagehand DC & DC Max
    • X-Groove Override
  • Machinery
    • Smart Chain Hoist
      • Getting Started
      • Installation
      • Making the Connections
      • Under The Hood
      • Troubleshooting
      • Specifications
    • Floorpocket
      • GettingStarted
      • Installation
      • Making the Connections
      • Prepping the Machine for Operation
      • VFD Settings
      • Troubleshooting
      • Specifications
    • Floorpocket v2
      • Get Started
        • Unpack
        • Installation Tools
      • Assembly
        • Base
        • Column Extension
        • Limit Cables
        • Roller Chain
      • Get Moving
        • Power Up
        • Platform
        • Stay Safe
        • Write Cues
      • Maintain the Machine
      • Troubleshooting
      • Floorpocket v2: Specifications
    • Pivot
      • Getting Started
      • Installation
      • Troubleshooting
      • Specifications
    • Pushstick
      • Getting Started
      • Installation
      • Making the Connections
      • Rigging the Pushstick
        • Rigging a Pushstick v2
      • Setting the Limits
      • Troubleshooting
      • Specifications
    • Pushstick Mini
      • Getting Started
      • Installation
      • Making the Connections
      • Rigging the Pushstick Mini
      • Troubleshooting
      • Technical Support
      • Specifications
    • Revolver
      • Installation
      • Making the Connections
      • Making It Move
        • Friction Wheel Tension Guide
      • Position Scaling
        • Encoder Finessing
      • Troubleshooting
      • Specifications
        • Drawing
      • Multi-Motor Configuration
      • Revolver v1 Manual
    • Rotator
      • Getting Started
      • Installation
      • Making the Connections
      • Troubleshooting
      • Technical Support
      • Specifications
    • Spotline
      • Getting Started
      • Installation
      • Rigging the Spotline
      • Operation
      • Troubleshooting
      • Specifications
    • Spotline V2
      • Spotline V2: Setup Process
      • Spotline V2: Installation
      • Spotline V2: Rigging the Spotline
      • Spotline V2: Operation
      • Spotline V2: Troubleshooting
      • Spotline V2 Accessories
      • Spotline V2: Maintenance
      • Spotline V2: Specifications
    • Spotline Mini v2
    • Spotline Practical
      • Practical v2
        • Getting Started
        • Installation
        • Rigging the Machine
        • Setting the Limits
        • Troubleshooting
        • Specifications
      • Practical v1
        • Getting Started
        • Installation
        • Operation
        • Troubleshooting
        • Specifications
    • Turntable Template
      • Overview
      • Bill Of Materials
      • Fabrication
      • Turntable Assembly and Installation
      • Turntable Assembly Guide
      • Tech Support
      • 20' Turntable Specs
      • Turtable Research Notes for Nerds
    • Retired
      • Curtain Call
      • Trickline
        • TricklineProductManualv1.0
        • Getting Started
        • Installation
        • Making the Connections
        • Troubleshooting
        • Specifications
      • Spotline Mini
        • Getting Started
        • Installation
        • Making the Connections
        • Rigging the Spotline Mini
        • Troubleshooting
        • Specifications
      • Pushstick Manual
    • Stromag Limits
  • Broadweigh Load Cells
Powered by GitBook
On this page
  • HOW TO ACCESS THE PARAMETER LIBRARY
  • HOW TO INSTALL A CUSTOM PARAMETER SET
  • Default Parameter Set Location in Windows Explorer:
  • Parameter Set File Naming Convention
  • WRITING A CUSTOM PARAMETER SET FILE
  • XML Syntax

Was this helpful?

  1. Stagehand
  2. Stagehand Parameters

Parameter Library in Spikemark

Accessing the Parameter Library and using Parameter Sets

PreviousUSB Parameter SetsNextStagehand Apprentice

Last updated 6 months ago

Was this helpful?

The Parameter Library is only available for Stagehands with a 6th Generation Stagehand Control Card AND a Mitsubishi E800 VFD.

COMPATABLE STAGEHANDS (as of 11.15.2024)

  • Pro 5

  • Apprentice 2

JUMP TO SECTION

HOW TO ACCESS THE PARAMETER LIBRARY

  1. Open Spikemark

  2. Select and connect to your compatable Stagehand

  3. In the Properties Panel on the right hand side, scroll down to Drive section, and select

  4. Take note of the Pr. C4 - Speed Gain Max Drive Value. You will need to rewrite this later.

  5. Select Library towards the lower, right hand corner of the Drive Configuration Window

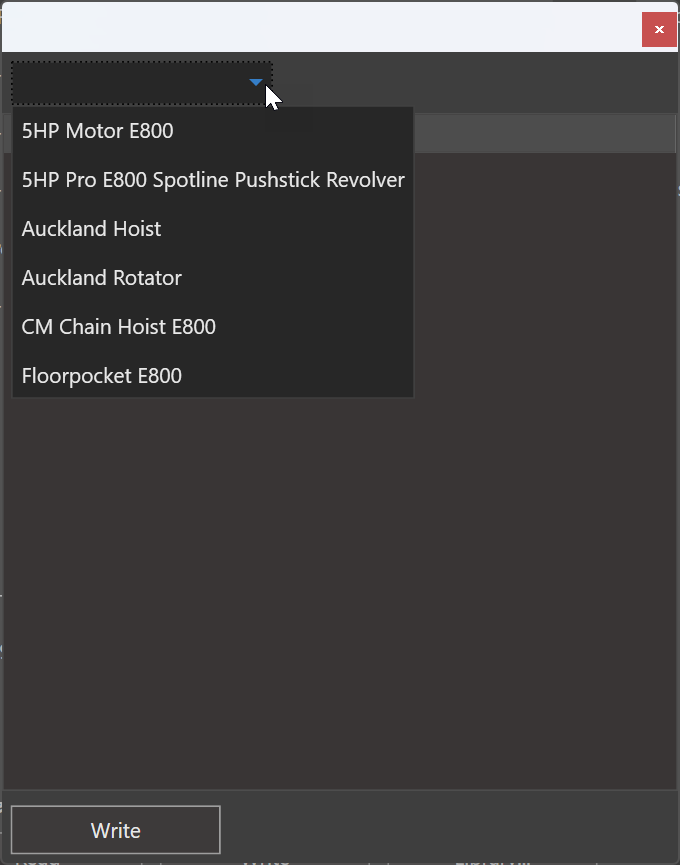

  6. Click the dropdown menu at the top of the Library Window to select your desired Parameter Set

  7. Preview the parameters and values to be written in the scrolling window, then select Write to update the VFD

    1. The write process will take approximately 15 seconds. While writing, the Write button will turn grey.

    2. Once complete, the VFD will automatically reset (you can hear a faint click if you're by the Stagehand), and the Write button will become clickable again.

  8. X out of both the Library Window to return to the Drive Configuration Window

  9. Verify that each My Value matches the Drive Value. Note the discepancy at Pr. 9. Simply update the My Value to 13.5 to match the Drive Value.

    1. For Pr. C4 - Spped Gain Max, use the value you write down from before updating the Parameter Set.

  10. After verifying all parameters, click Write to update the VFD.

  11. Once complete, and Spikemark has re-read the Drive Value column, select Auto-Tune to run the auto-tune sequence.

HOW TO INSTALL A CUSTOM PARAMETER SET

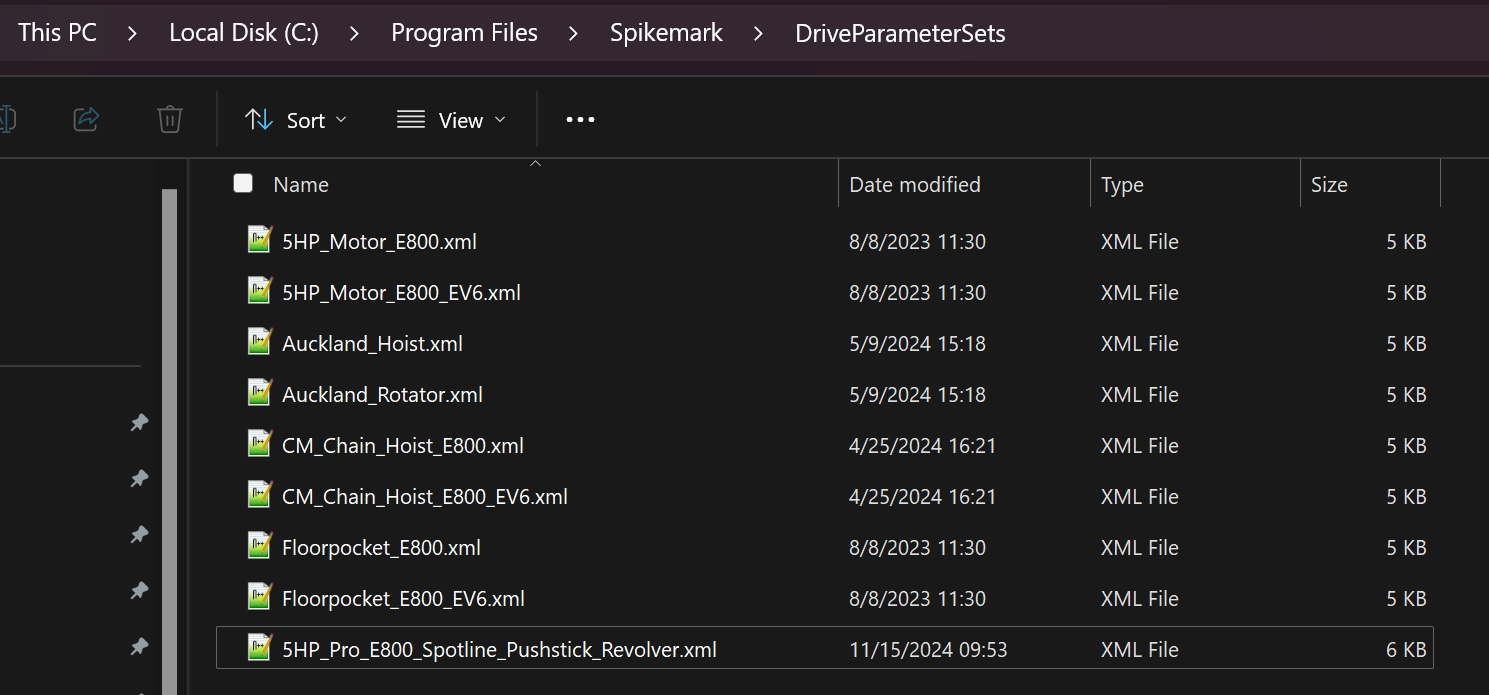

Default Parameter Set Location in Windows Explorer:

C:\Program Files\Spikemark\DriveParameterSets

  1. Copy your desired .XML file to the above folder

  2. Verify in Spikemark that your file shows up in the Parameter Library

Parameter Set File Naming Convention

  1. Must have the .XML file extension

  2. No spaces or special characters

WRITING A CUSTOM PARAMETER SET FILE

XML Syntax

<parameterSet>
    <name>5HP Motor</name>
    <description>11.15.2024 - 5HP E800 Parameters for Spotline, Pushstick, and Revolver</description>
    <version>11.15.2024 </version>
    <parameter>
        <number>0</number>
        <value>4</value>
        <scaling>0.1</scaling>
    </parameter>
</parameterSet>

Keep in mind that you are effectively writing code when you create or edit these files, so If there are any incorrect spellings, punctuations, missing elements pieces (the stuff enclosed by <>), the file will either not show up in the dropdown menu, or it could cause Spikemark to crash when selected.

Every file must include all of the following pieces:

Root Element The entire document must be enclosed by the root element parameterSet as shown below:

<parameterSet>

</parameterSet>

Name The name is what shows up in the dropdown menu of the Spikemark Library

<parameterSet>
    <name>Your Custom Parameter Set</name>
</parameterSet>

Description The description will show up in Spikemark when the Parameter Set is selected. It can give the user more information about the details or specific uses of the Parameter Set, such as what machines the parameters are intended for.

<parameterSet>
    <name>Your Custom Parameter Set</name>
    <description>Gary made this file for the deck winch in THE SHOW in 2007</description>
</parameterSet>

Version This doesn't show up in Spikemark (yet), but can be used internally to track updates to Parameter Sets.

<parameterSet>
    <name>Your Custom Parameter Set</name>
    <description>Gary made this file for the deck winch in THE SHOW in 2007</description>
    <version>1.2.3</version>
</parameterSet>

Parameter This is where you actually indicate what parameter to write and what it should be set to. Each parameter that you want to change needs to have a separate Parameter element. This element also includes 3 x sub elements that all must be filled out.

    <parameter>
        <number>800</number>
        <value>40</value>
        <scaling>1</scaling>
    </parameter>

Number This is the Pr. Number found in the Mitsubishi Manual

Value This is the value you want the parameter to be set to. The available values can be determined from the Mitsubishi Manual. If you only care about what it's currently set to, you can navigate to the actual Pr. # on the VFD and see the current setting.

Scaling This is the increment to which the value can be adjusted. This can be found either in the Mitsubishi manual, or in a pinch, can be determined by going into the Pr. on the VFD itself and seeing how much one click of the wheel changes. the value. The typical settings are:

  • 0.01

  • 0.1

  • 0

You will need the to reference the parameters, values and scale.

It might also be useful to reference the current .

Mitsubishi E800 Information Manual (Function)
Stagehand Parameters
Root Element
Name
Description
Version
Parameter
Number
Value
Scaling
Drive Config
How to access and use the Parameter Library
How to install a custom Parameter Set
How to write a custom Parameter Set
