Getting Started

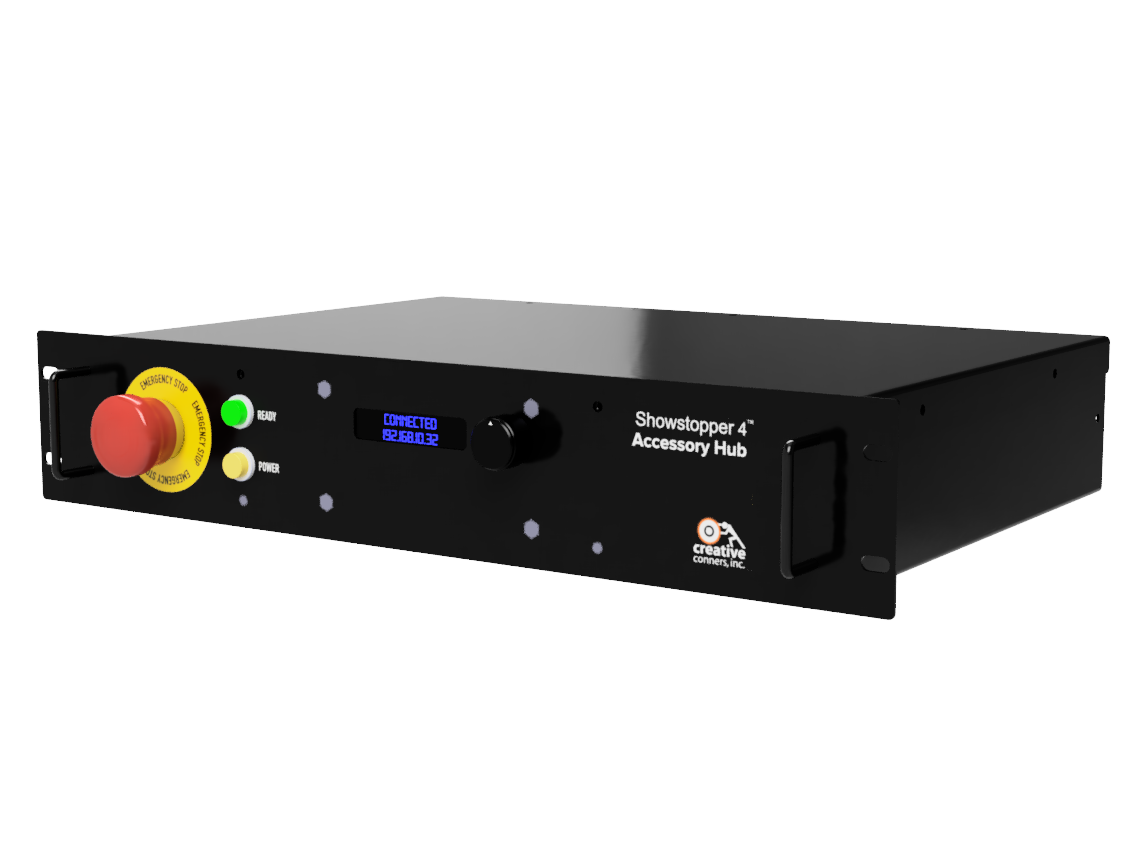

Congratulations on your purchase of Showstopper 4 Accessory Hub from Creative Conners, Inc! The Showstopper 4 Accessory Hub expands the capabilities of your Showstopper 4 Base, allowing six additional Showstopper 4 Accessory devices to be connected to your Emergency Stop Network. In order to use a Showstopper 4 Accessory Hub, you will also need a Showstopper 4 Base to power your Accessory Hub.

This manual will guide you through:

• Unpacking

• Installation

• Connecting Devices

• Troubleshooting

If you need help along the way, contact us via email ([e-mail]), our website (creativeconners.com), or by phone [phone] x2). We want your automation to succeed, and we are here to help you through any issues you may encounter.

WHAT’S IN THE BOX

• 1 x Showstopper 4 Accessory Hub (2U)

• 1 x IEC Power Cable

• 6 x Showstopper 4 Accessory Terminators

• 4 x 10x32 Rack Screws

If any of these components are missing, please contact us for a replacement.

SHOWSTOPPER 4 ACCESSORY HUB FEATURES

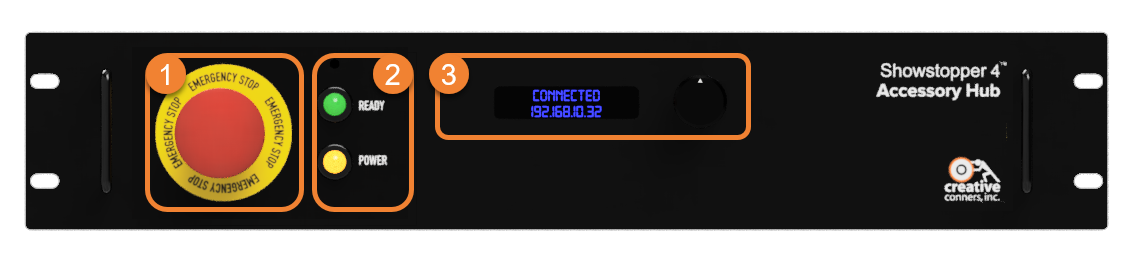

Front Panel

1. Illuminated E-Stop Button

2. Indicator Lights

3. Status Display

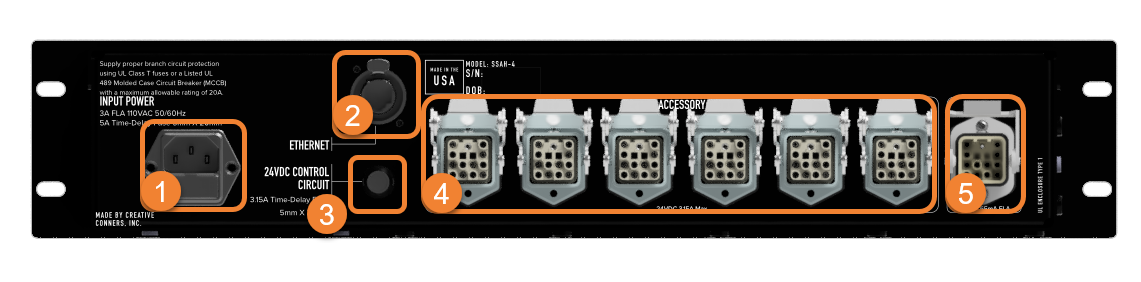

Rear Panel

1. Input Power - 120VAC 3A

2. EtherCON Connection

3. 24 VDC Control Circuit Overcurrent Protection

4. Six Showstopper 4 Accessory Outputs

5. Showstopper 4 Accessory Input
