Stagehand Pro 5: Power Input

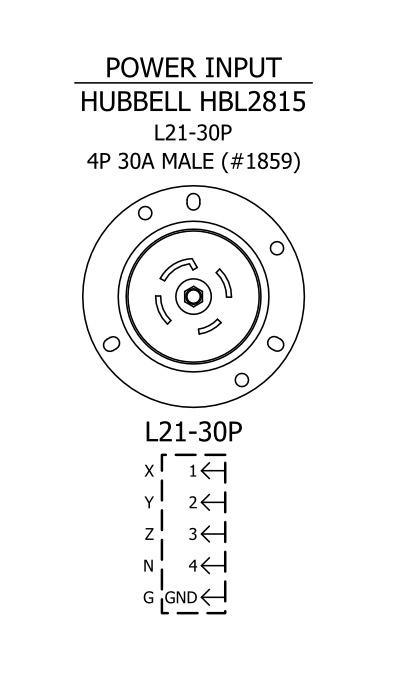

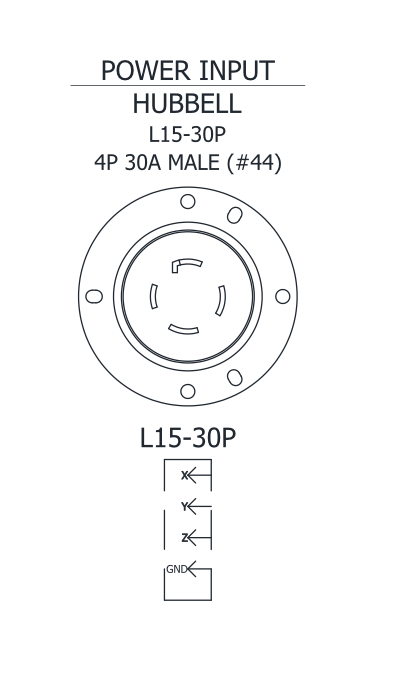

The Stagehand Pro 5 ships standard with an L21-30 power inlet. It is also available with an L15-30 power inlet.
The Stagehand Pro 5 requires a power circuit with these specifications:
| Specification | 5hp | 10hp |
|---|---|---|
Voltage | 200VAC-240VAC | 200VAC-240VAC |
Phase | 3P | 3P |
Circuit | 4-wire (L1, L2, L3, G) | 4-wire (L1, L2, L3, G) |
Amperage | 30A | 50A |
Cable Plug | NEMA L21-30 | 50A Twistlock |
The Stagehand Pro 5 is equipped with 3 circuit breakers on the front panel.
Flip the MAIN POWER breaker OFF before making or breaking the power connection.
The power inlet has a higher current ratings than the draw of the controller.
