Adjusting Location On Stage

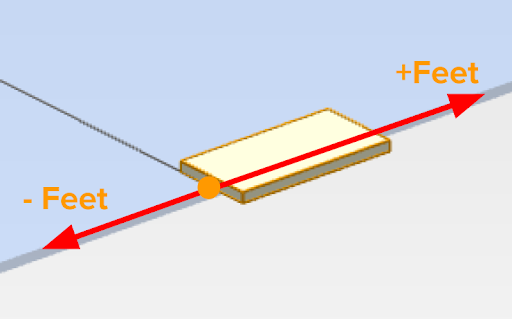

Distance from Center

This number is the distance away from the Centerline in feet. A negative number will move the Zero Point towards Stage Right, and a positive number will move the Zero Point towards Stage Left.

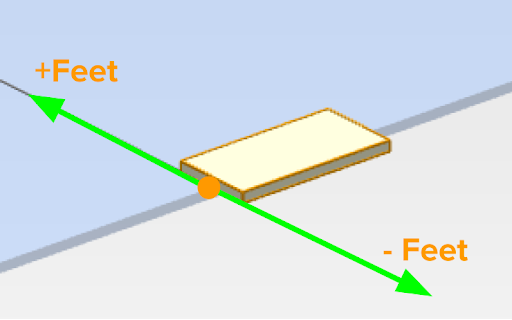

Distance from Plaster

A positive number will move the unit further Up Stage. Note that the Zero Point is at the center of the unit, so you’ll need to calculate the location of the Down Stage edge by subtracting ½ the unit width from your Distance from Plaster.

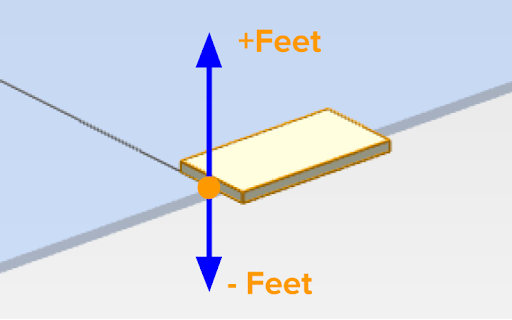

Elevation from Stage

This number moves the Zero Point up and down from the upper surface of the Stage. A negative number moves the Zero Point below the stage, and a positive number moves the Zero Point above the stage. This is especially useful for traveler tracks and elevators that don’t typically sit on the deck.
