OSC Input Trigger

OSC Input triggers allow you to control Spikemark from some other software.

It can be dangerous to trigger motion automatically, the other computer won't be able to know if there is a person in the way. We strongly encourage the use of hold to run.

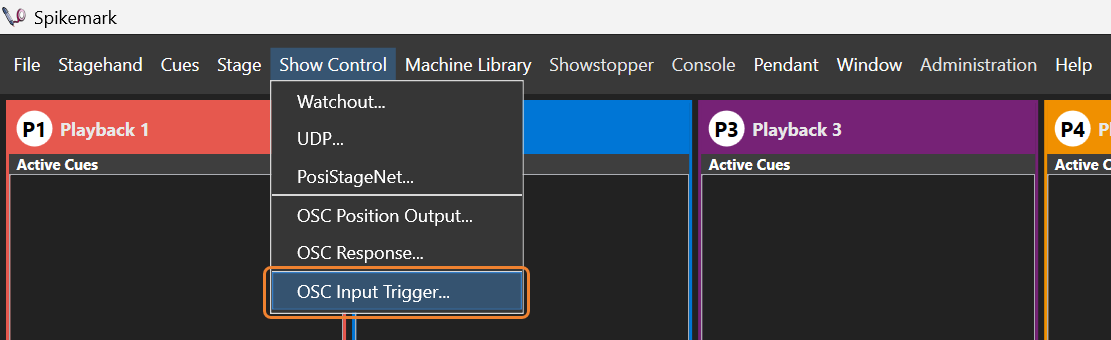

From the Show Control menu, select OSC Input Trigger... to open the OSC Input Trigger configuration window.

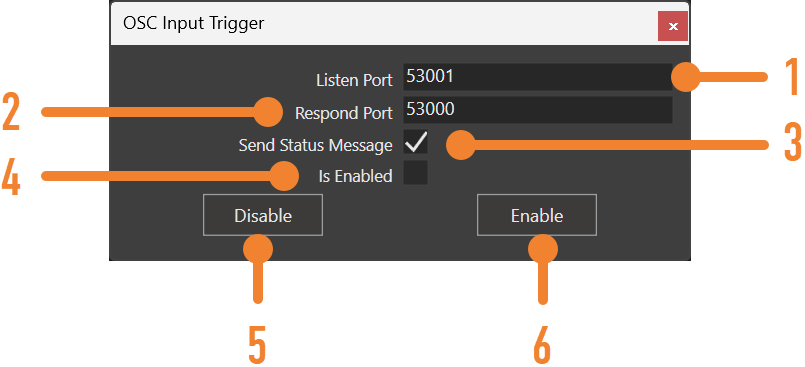

Configuration

1. Listen Port

The port that Spikemark will start listening on for incoming OSC messages.

2. Respond Port

The port that Spikemark sends response and data messages back to.

3. Send Status Messages

Toggle on or off Spikemark's response messages.

4. Is Enabled

Indicates whether Spikemark is listening for OSC messages.

5. Disable

Stop listening for OSC messages.

6. Enable

Start listening for OSC messages
