# Stagehand Pro 4: Making The Connections

## Back panel overview

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-046e52b6fb8cdb92e9f7db1ab9c924815028b186%2FPro%204%20-%20Rear%20Overview.png?alt=media" alt=""><figcaption></figcaption></figure>

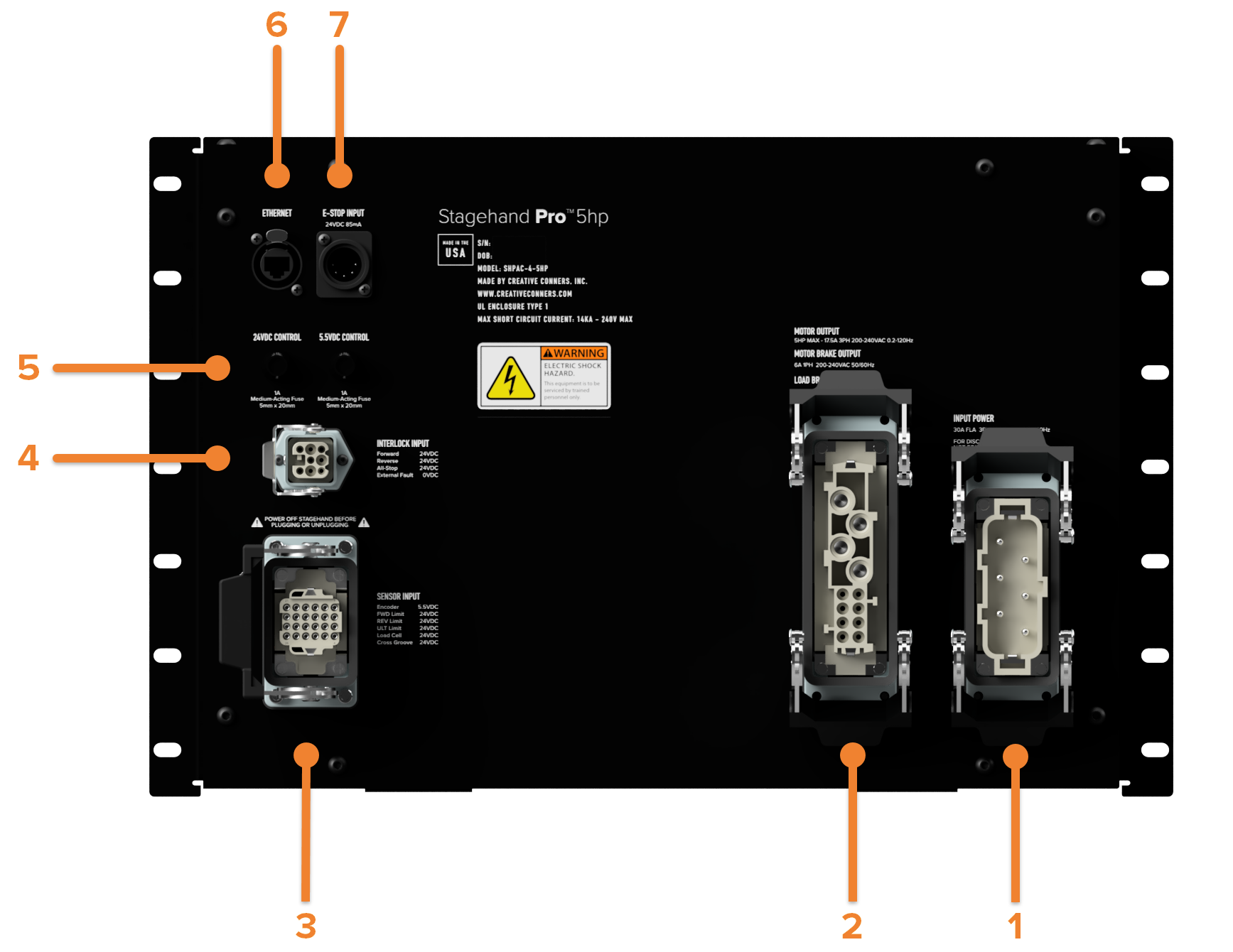

1. Input power
2. Motor and Brake(s) Output
3. Sensor Input
4. Interlock Input
5. Control & Encoder Fuse Protection
6. Ethernet
7. Showstopper Input (emergency stop)

## System Diagram

![](https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-0ff7cae1f017adec51f86bb8f7ee40b5efbb9772%2FPro%204%20System%20Diagram.drawio%20\(1\).png?alt=media)
