# Stagehand Pro 5: Installation

## What’s In Box? <a href="#h.7p5lqugk6b48" id="h.7p5lqugk6b48"></a>

* Top Sheet with a link to these docs
* Printed Schematic
* Mitsubishi VFD Manual
* Power Cable
  * L21-30 Typical
  * L15-30 Custom Ordered
* (12) #10-32 Rack Screws with washers
* Interlock Terminator
* USB MBED Programming Cable(for down-grading firmware)

If any of these items are missing, let us know and we will send these items to you.

## Rack Mount <a href="#h.11wagm8xxql9" id="h.11wagm8xxql9"></a>

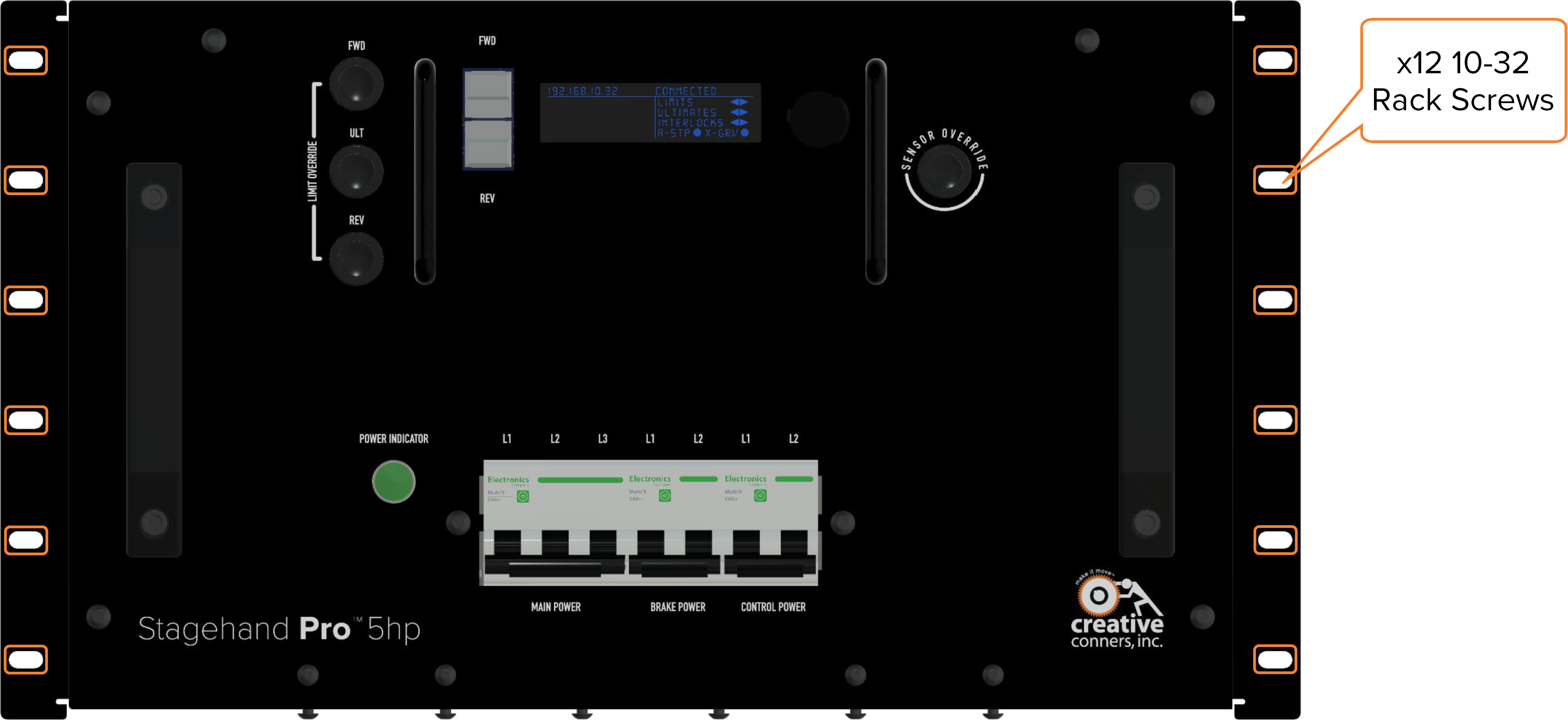

Install the Stagehand Pro 5 in any 19” equipment rack using up to qty: 12 10-32 Rack Screws.

<figure><img src="/files/3OZLAsZt7IVJbG9gEbDx" alt=""><figcaption></figcaption></figure>

## Making the Connections <a href="#h.esw2vec4ddqd" id="h.esw2vec4ddqd"></a>

### **System Diagram**

<figure><img src="/files/gDn9TO5xJh1taKqvAhyR" alt=""><figcaption></figcaption></figure>

### **Plug in your Stagehand**

**What you will need**

* [5hp AC Induction Machine](/docs/machinery.md)
* [Showstopper Base](/docs/showstopper/showstopper-base.md)
* [PC Computer](/docs/spikemark/spikemark-installation.md) running Spikemark Software
* Cables

<figure><img src="/files/MW2YTvXftQoJohemdQye" alt=""><figcaption></figcaption></figure>

1. **Input Power** - Plug in your L21-30 Cable to your power source
   * Power source: 3 Phase 30 Amp 200-240VAC via L21-30 wall outlet or power distribution unit
2. **Motor Output** - Plug your Pro Motor Cable in between your machine and Stagehand Pro
3. **Signal Output** - Plug your Signal Cable in between your machine and Stagehand Pro
4. **Interlock Output**
   * If you are not using interlock switches or safety bumpers in your system, plug in the included Interlock Jumper
   * If you are using interlock switches or safety bumpers in your system, you will need to connect this to a [Safety Interlock Pro](/docs/showstopper/safety-interlock/safety-interlock-pro-4.md)
5. **E-Stop Input** - Plug in your Showstopper Cable(5 Pin XLR) between the Showstopper Base and the Stagehand pro
6. **Ethernet Input** - Using Ethernet Cables, plug in your Stagehand, Computer, and any other networked gear into a Network Switch. So you can Make It Move! Through [Spikemark!](/docs/spikemark/quickstart.md)


---
