Stagehand Pro 5: Replace Control Card

Required Tools

1. 1/16" Hex Key

2. 1/8" Hex Key

3. #2 Phillips Screwdriver

Stagehand Card Replacement Steps

1. Turn off the main breaker at the front of the Stagehand and remove power input from the rear of the Stagehand.

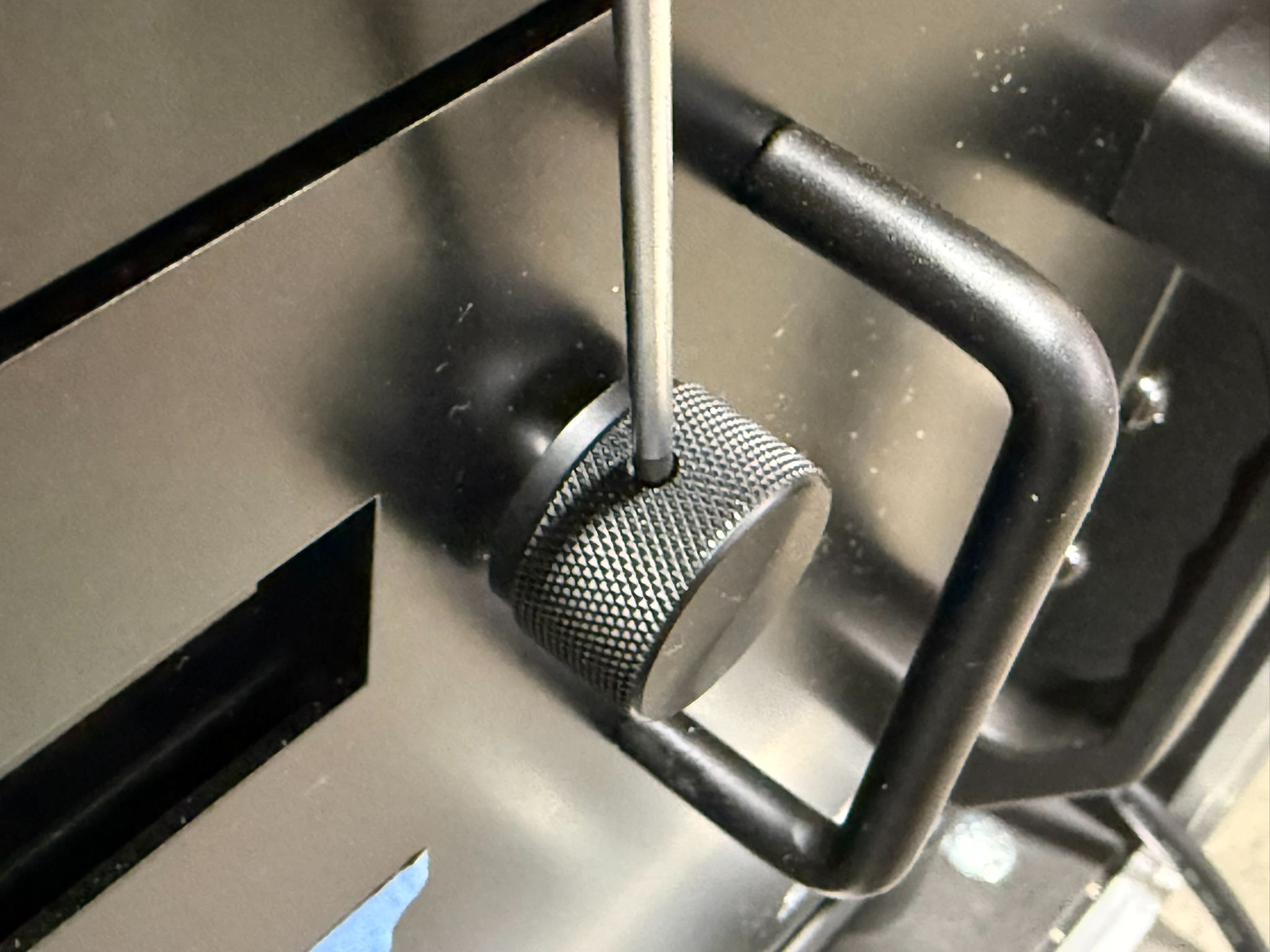

2. Remove the encoder knob using the 1/16" Hex Key.

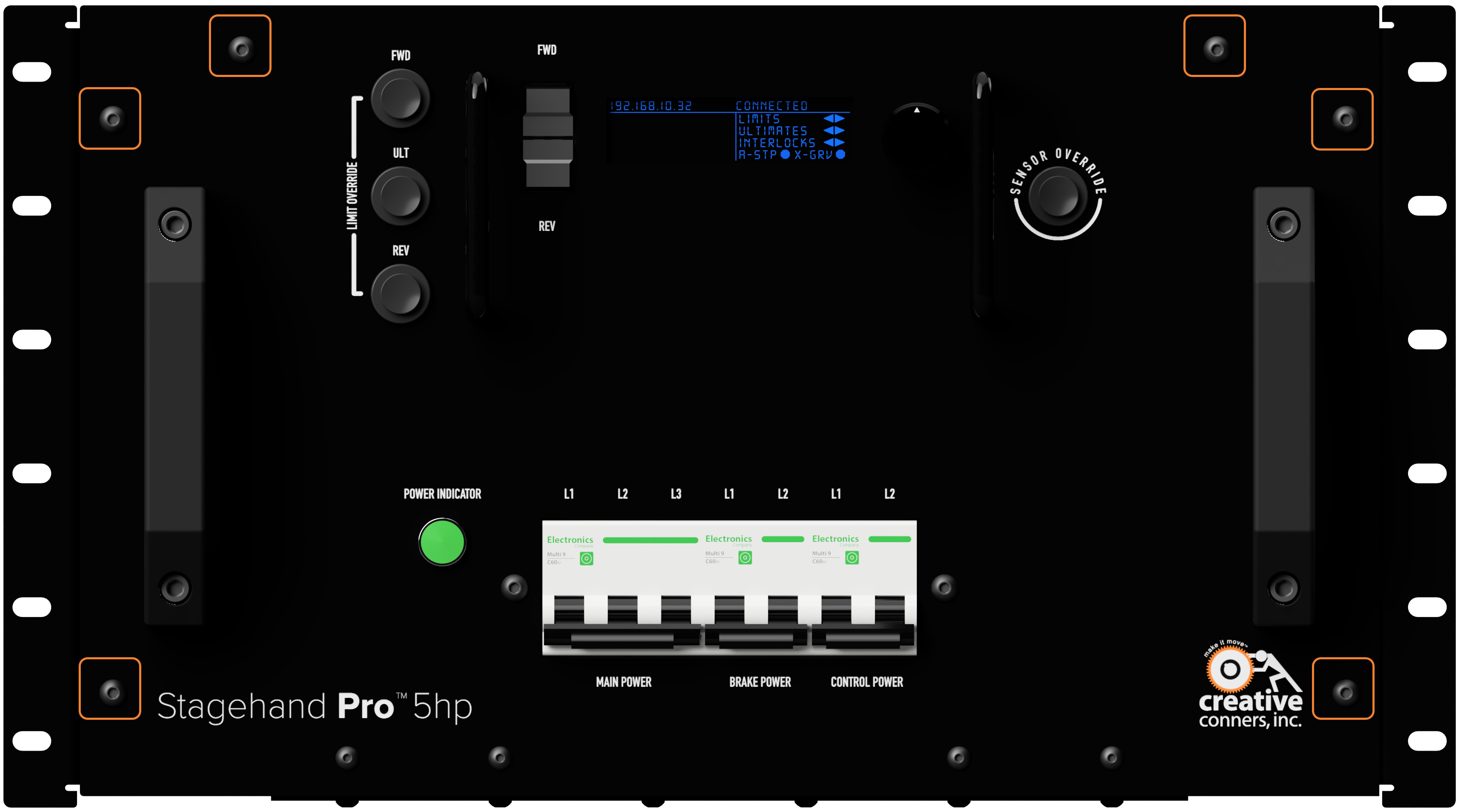

3. Remove the 6 x #10 button head screws from the front of the enclosure using the 1/8" Hex Key.

   • The front panel will swing down/out without having to remove the Stagehand from the rack.

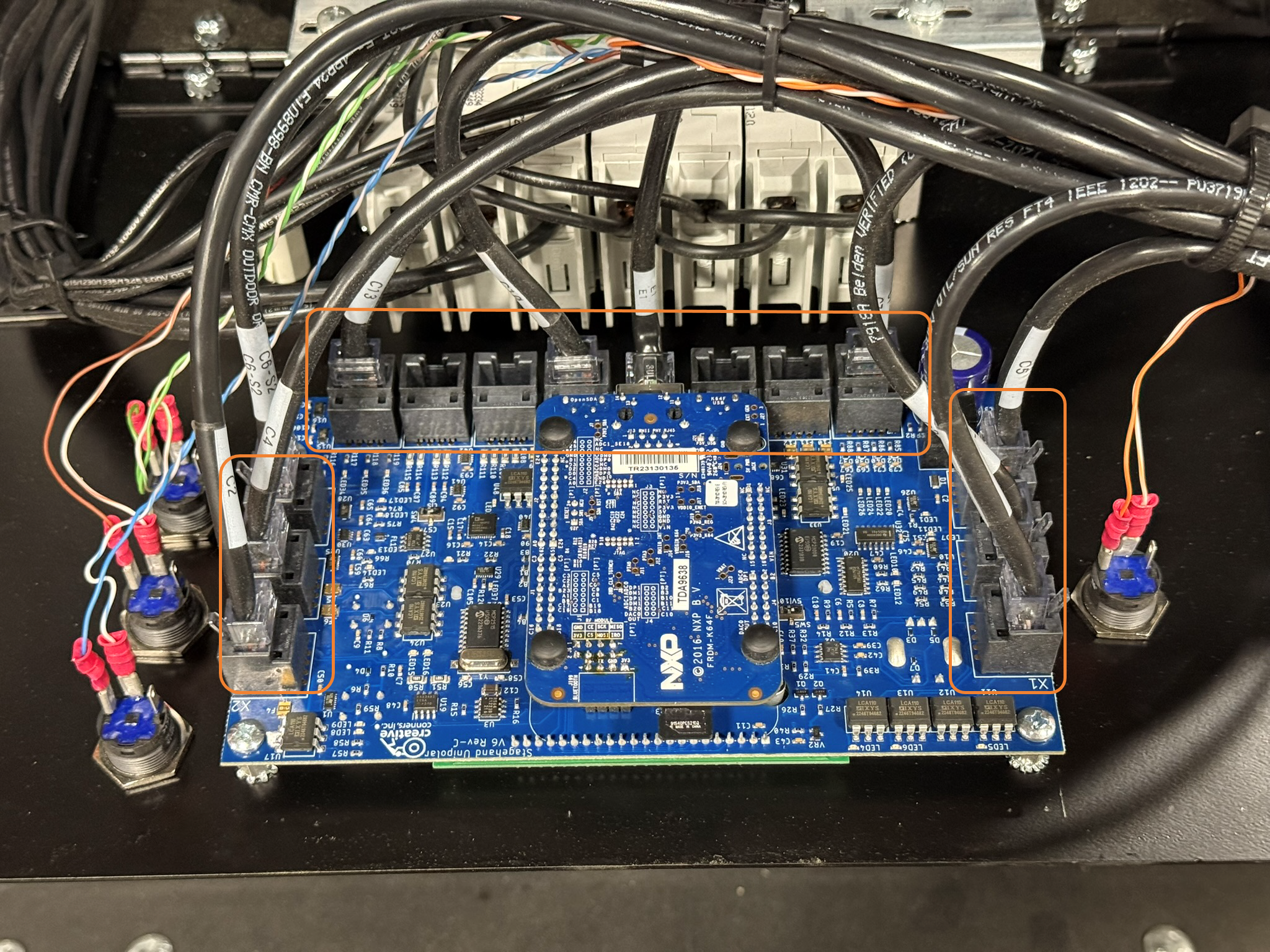

4. Carefully remove all 10 Cat5 cables from the Stagehand Control Card

   • 3 x left side

   • 3 x right side

   • 3 x bottom

   • 1 x from the ARM Card in the center

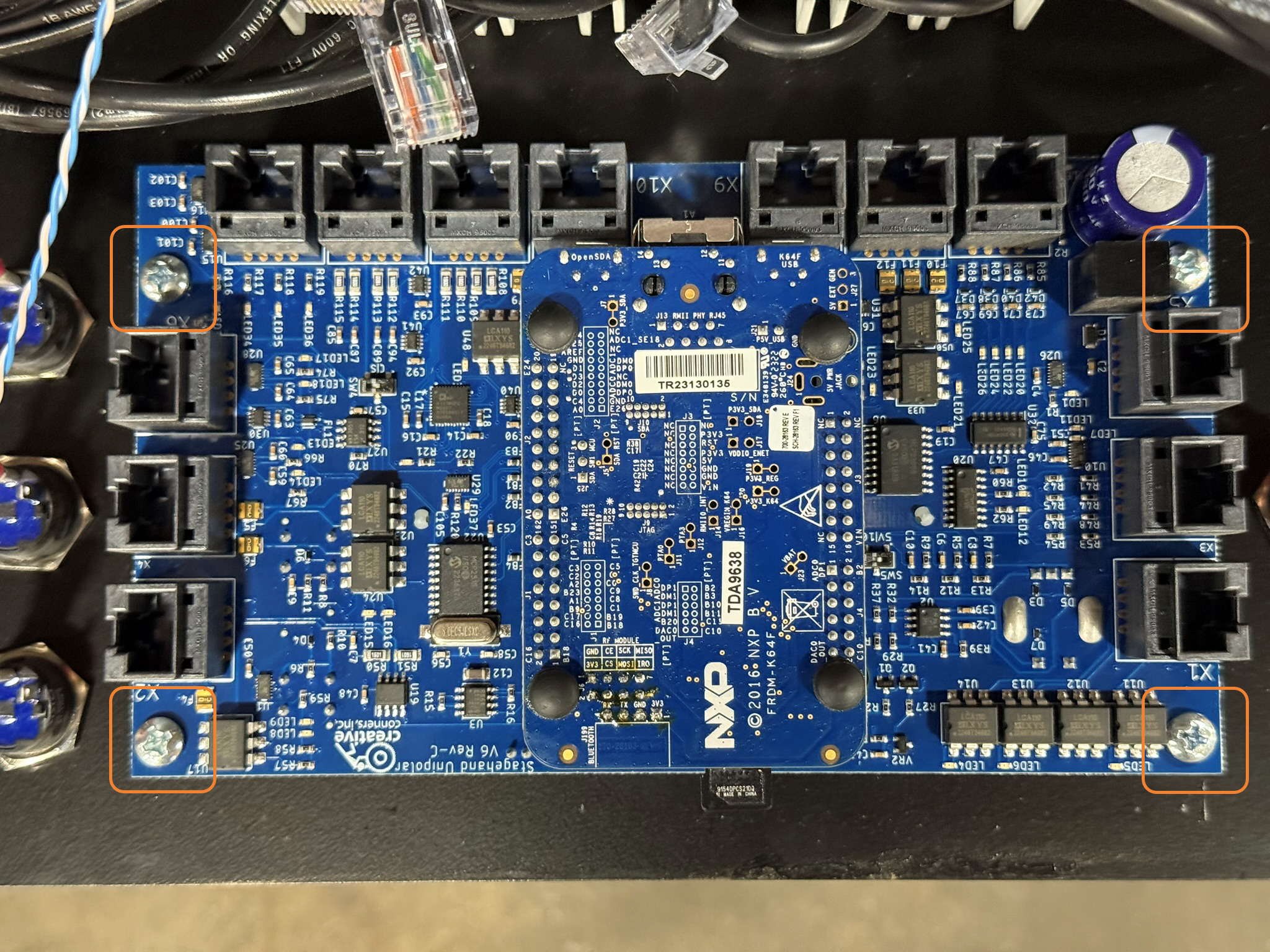

5. Remove the 4 x pan head screws from the four corners of the Stagehand Control Card using the #2 phillips screwdriver.


6. Carefully remove the card from the front panel and replace it with the new one

7. Replace the 4 x pan head screws to secure the Stagehand Control Card

8. Replace all 10 Cat5 cables into the appropriate inputs

   - DOUBLE CHECK THE INPUTS MATCH THE CABLES

9. Close the front panel of the Stagehand and install the 6 x #10 button head screws

10. Replace the encoder knob, ensuring that the set screw secures onto the flat section of the stem

    • If your stem is fully round or gnurled without a flat section, secure the encoder knob in any orientation you like

11. Restore the power input cable to the rear of the Stagehand and turn on the brakers.

12. Verify that you have the most recent Stagehand Firmware
