Nearest Reverse Multiple Spikes

Nearest Reverse Multiple Spikes move the motor reverse to the closest multiple of Factor plus Offset. Put another way:

NewPosition=Round(CurrentMotorPosition/Factor)Factor+OffsetNewPosition=Round↓(CurrentMotorPosition/Factor)∗Factor+Offset

Nearest Reverse Multiple Spikes use the icon in the Spike List to indicate that they are a nearest reverse multiple.

Change The Type

Dynamic Spike Edit Nearest Reverse Multiple Type

To change the type of spike, select the spike in the Spike List and then select nearest reverse multiple from the type dropdown menu.

Changing The Factor

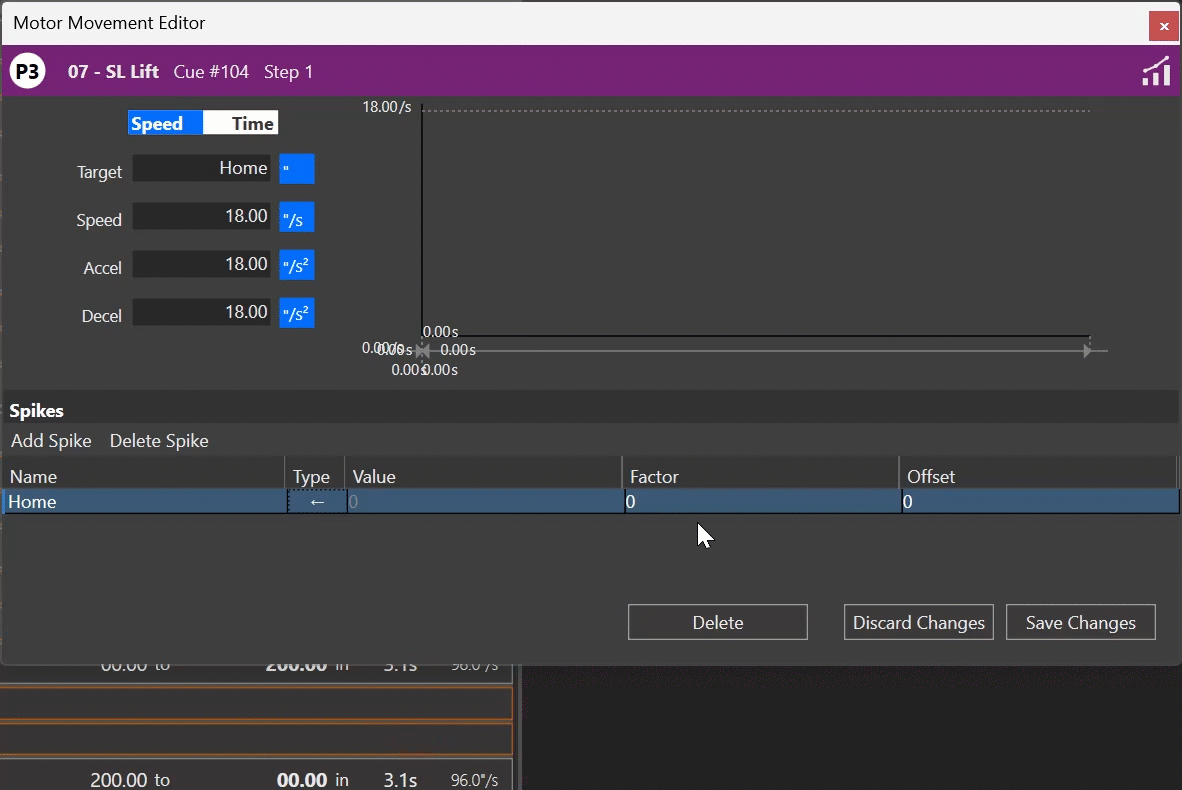

Dynamic Spike Edit Nearest Reverse Multiple Factor

To change the factor double-click in the Factor column and give it a new factor.

Changing The Offset

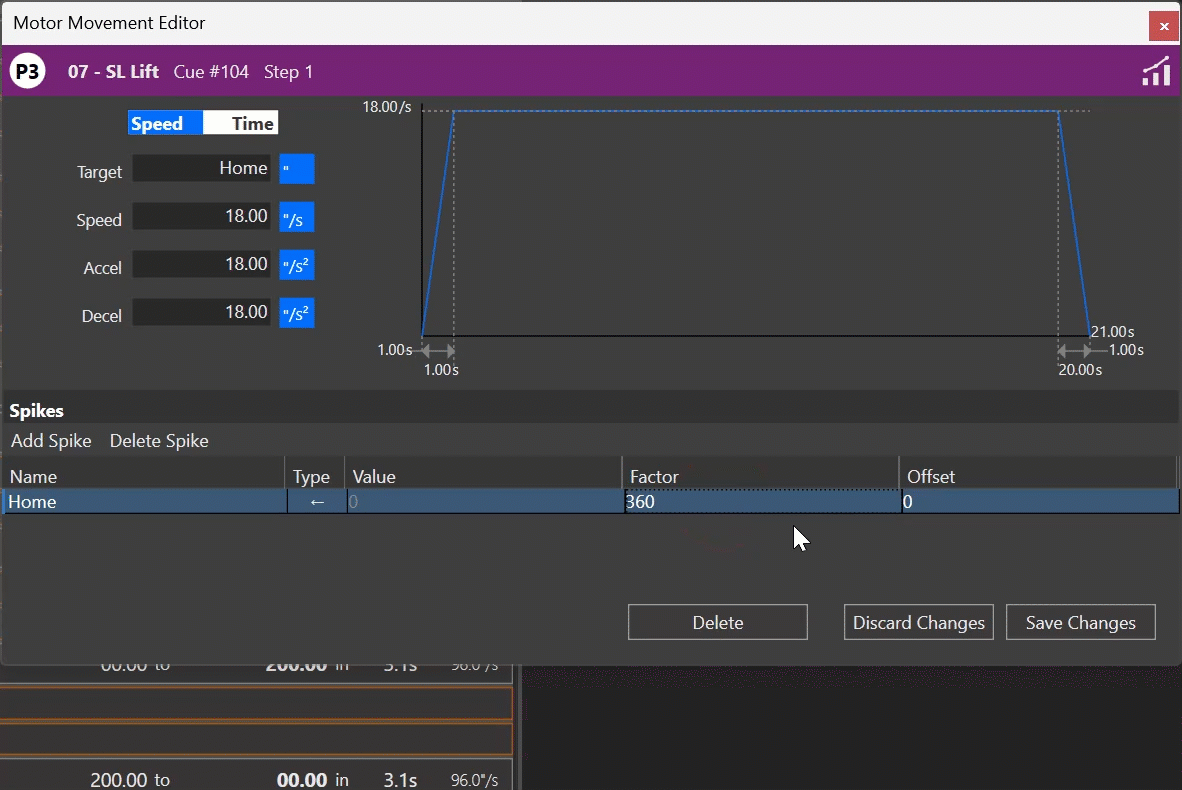

Dynamic Spike Edit Nearest Reverse Multiple Offset

To change the offset double-click in the Offset column and give it a new offset.

Example

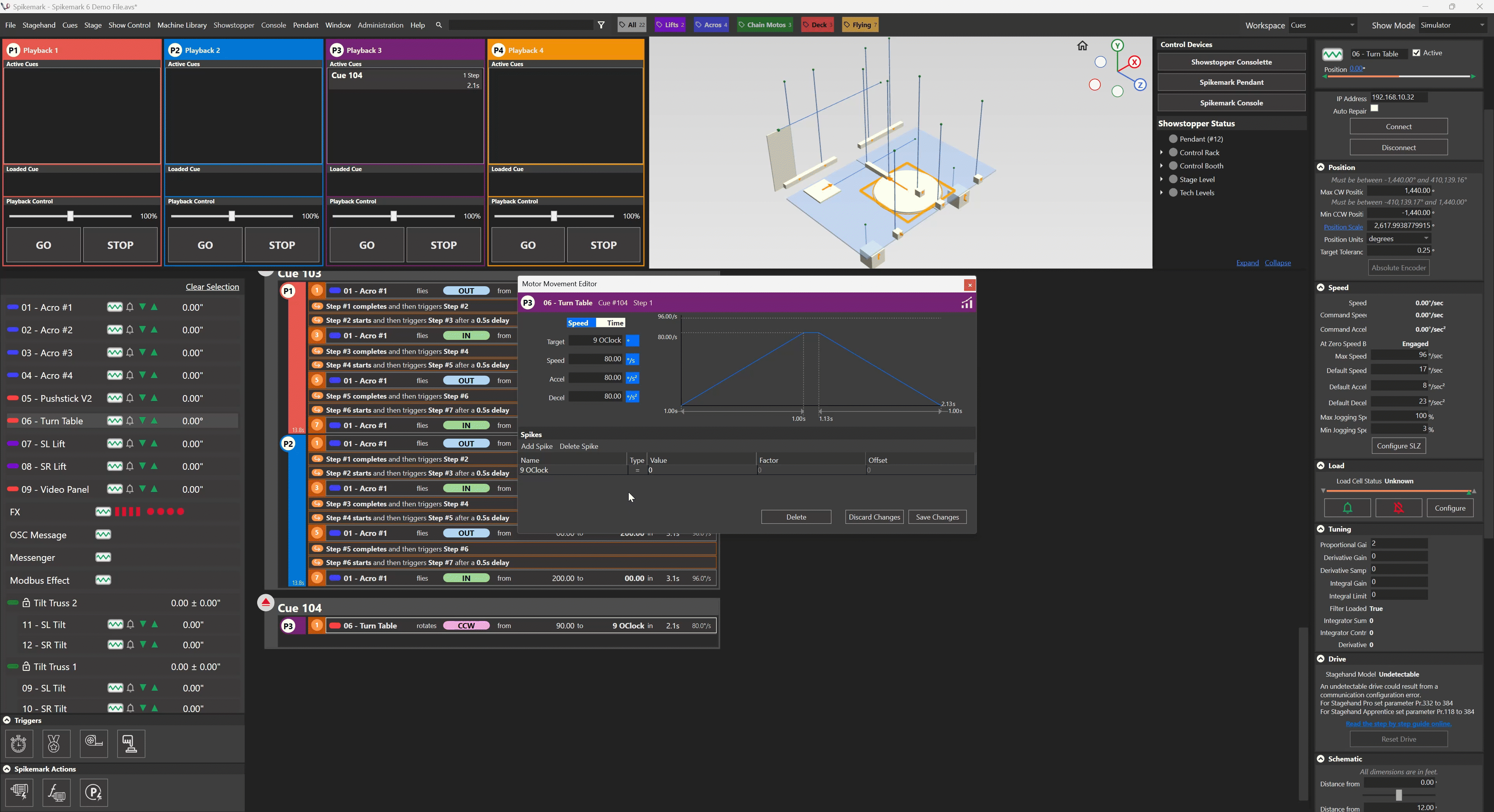

Dynamic Spike Example Nearest Reverse Multiple

In this example we want to rotate the turntable reverse to the 9 o'clock position (assuming upstage is 12 o'clock and downstage is 6 o'clock). For this we set our factor to 360 degrees (one full revolution) and our offset to 270 degrees (9 o'clock).
