Control Connection

Getting Started

The Control Connection is a Showstopper Accessory designed for permanent installations that allows for any control device to be connected into the system. Easily drop in a Spikemark computer, Stage Manager, Showstopper Hub, Consolette, Remote E-Stop, or Pendant without re-running cables!

This guide will walk you through:

• Installation

• Operation

• Troubleshooting

• Specifications

• Drawing

What's Included

The Control Connection will arrive as a partially pre-wired faceplate to be installed on a standard 3 gang wall box, or with a Surface Mount box.

Features

• 2 x EtherCON/RJ45 Ethernet ports

• 1 x Showstopper Accessory Output

• 1 x Showstopper Accessory Terminator on a lanyard

Models

The Control Connection comes in 2 configurations.

Flush Mount Control Connection

Flush Mount Control Connection

The Flush Mount version is a faceplate with two EtherCON ports and the Showstopper Accessory socket and terminator. This is designed to be used with a standard 3 Gang Electircal Box that you can get from any electrical supplier or local hardware store.

Creative Conners can typically supply a 3 Gang Box with the Control Connection upon request! Be sure to ask our sales reps at 401.289.2942 x1

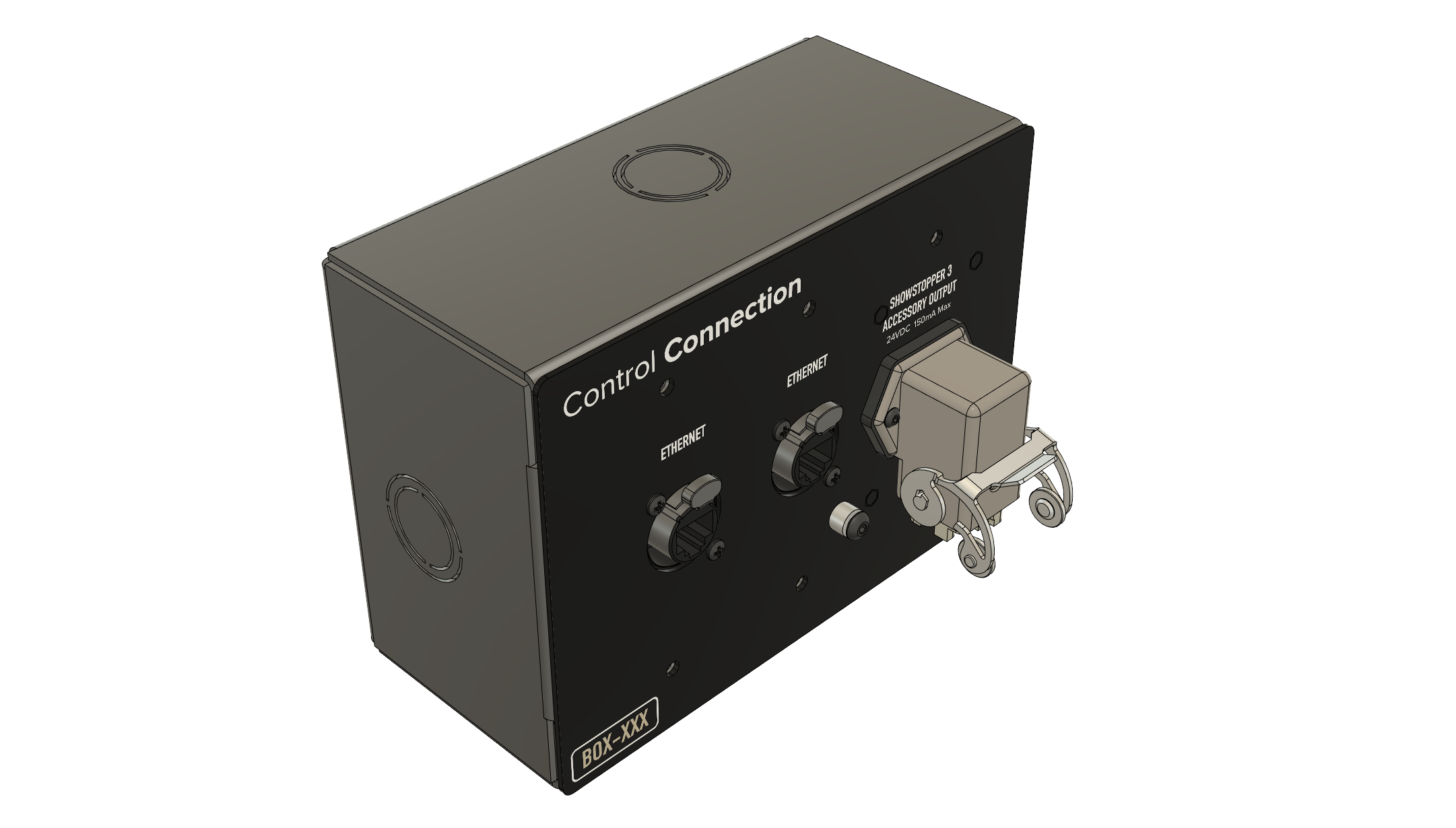

Surface Mount Control Connection

Surface Mount Control Connection

The Surface Mount Control Connection is the same faceplate, but also includes a finished, black powder coated enclosure that looks spiffy mounted directly to your wall. The enclosure includes 4 x 1/2" or 3/4" conduit knockouts for permanent installation in your venue.
