Installation

Flush Mount Drive Connection

• Install your 3 Gang Box on or inside your wall

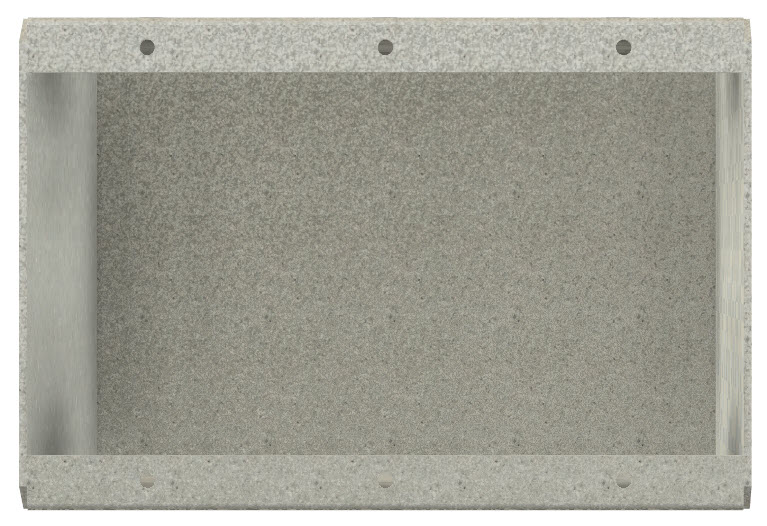

  Standard 3 Gang Electrical Box
• Install conduit between the Showstopper Base and network switch

• Run Showstopper Cable and Cat5 Cable through conduit

• Wire your cables into the back of the Drive Connection

• Attach the green ground wire from the faceplate to the gang box

• Attach the face plate to the gang box and begin using your Drive Connection!

Surface Mount Drive Connection

• Remove the face plate from the back enclosure

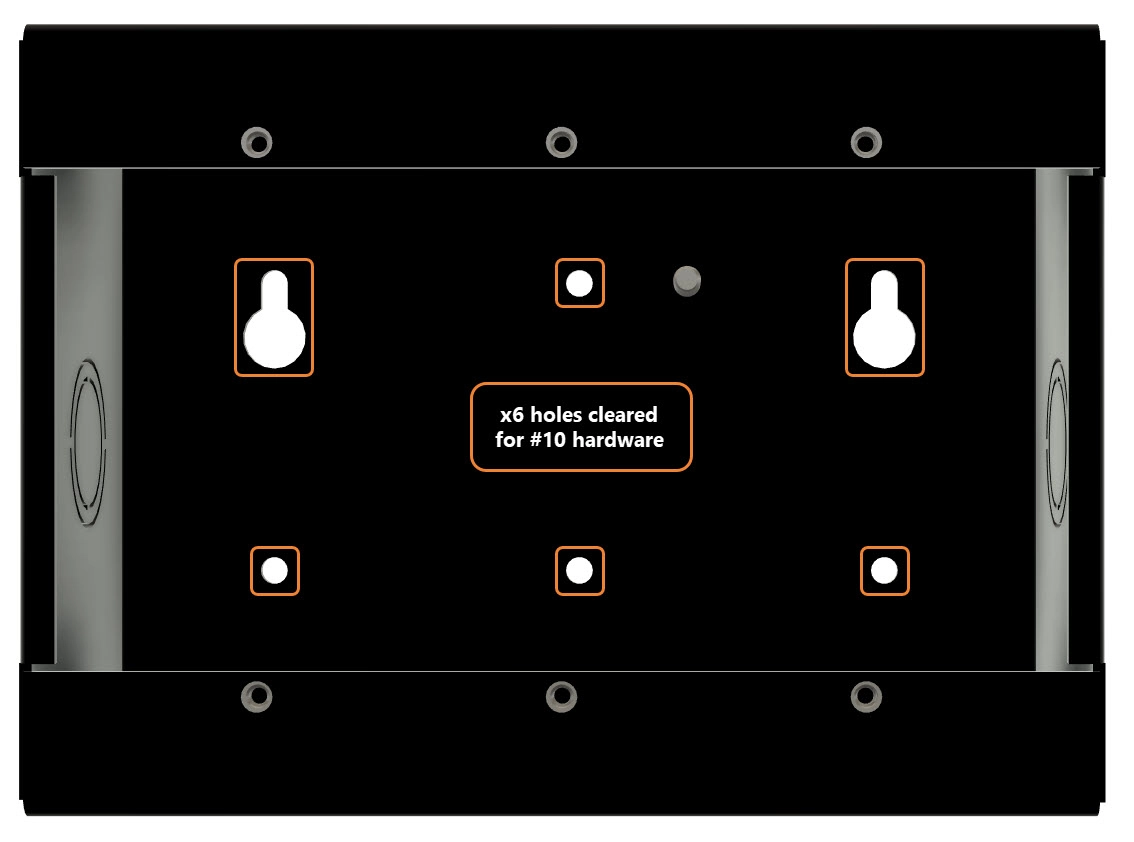

CCI Surface Mount Enclosure

• Install the box on the wall. Be sure to use appropriate wall anchors

• Install conduit between the Showstopper Base and network switch

• Run Showstopper Cable and Cat5 Cable through conduit

• Wire your cables into the back of the Drive Connection

• Attach the green ground wire from the faceplate to the gang box

• Attach the face plate to the gang box and begin using your Drive Connection!
