# Medialon Manager Configuration

Sending OSC from Medialon Manager to Spikemark is the special case where you have to manually do the [null padding](https://docs.creativeconners.com/docs/spikemark-6/show-control/osc/troubleshooting.md).

Medialon Manager has OSC Output Device, but the OSC Output Device adds in additional information into the command that Spikemark isn't expecting which causes Spikemark not to take the OSC action.

Do Not Use the OSC Output Device to send OSC commands to Spikemark. It will not work.

Instead, use a Medialon Low Level Communicator Device instead of an OSC Output Device.

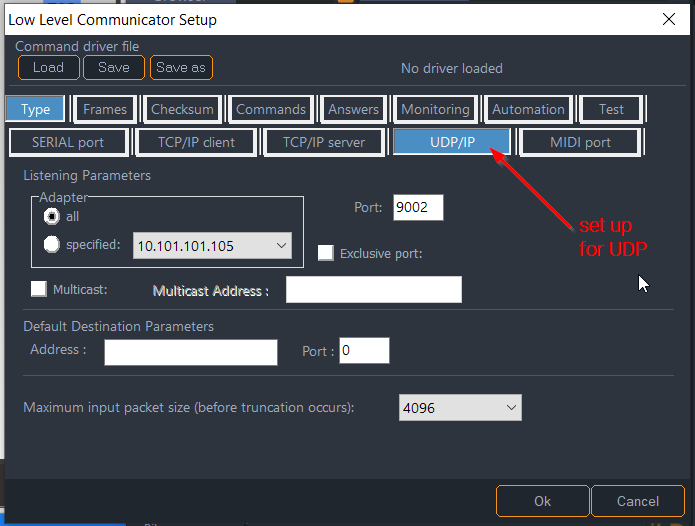

Configure the Medialon Low Level Communicator Device as a UDP Output, and assign the port to match the listening port of Spikemark.

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-d48ad2dcaecb9c4d0e3a4d5513bdd5688c8bf7cb%2Fmedialon-manager-setup.png?alt=media" alt="Medialon Manager LLC Config"><figcaption></figcaption></figure>

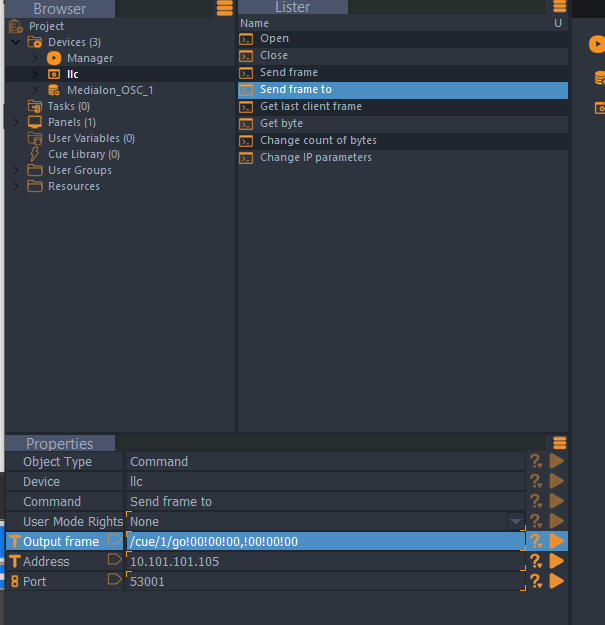

Then setup your Output Command with the correct Spikemark IP Address and Listening Port, and use the above structure to format the command using 4-bye null padding.

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-3db6f720c3d142573d51d1d8c019da3fc462e9e7%2Fmedialon-manager-output-command.png?alt=media" alt="Medialon Manager Output Command"><figcaption></figcaption></figure>


---
