# Making the Connections

The Revolver connects to a Stagehand with a standard Signal cable and can be configured with Apprentice or Pro motor/Brake connectors. The encoder(s) connect with an M12 style connector.

{% hint style="info" %}
To use the TR3 encoder with a Pivot, disconnect the M12 connector from the encoder and use the extension cable.
{% endhint %}

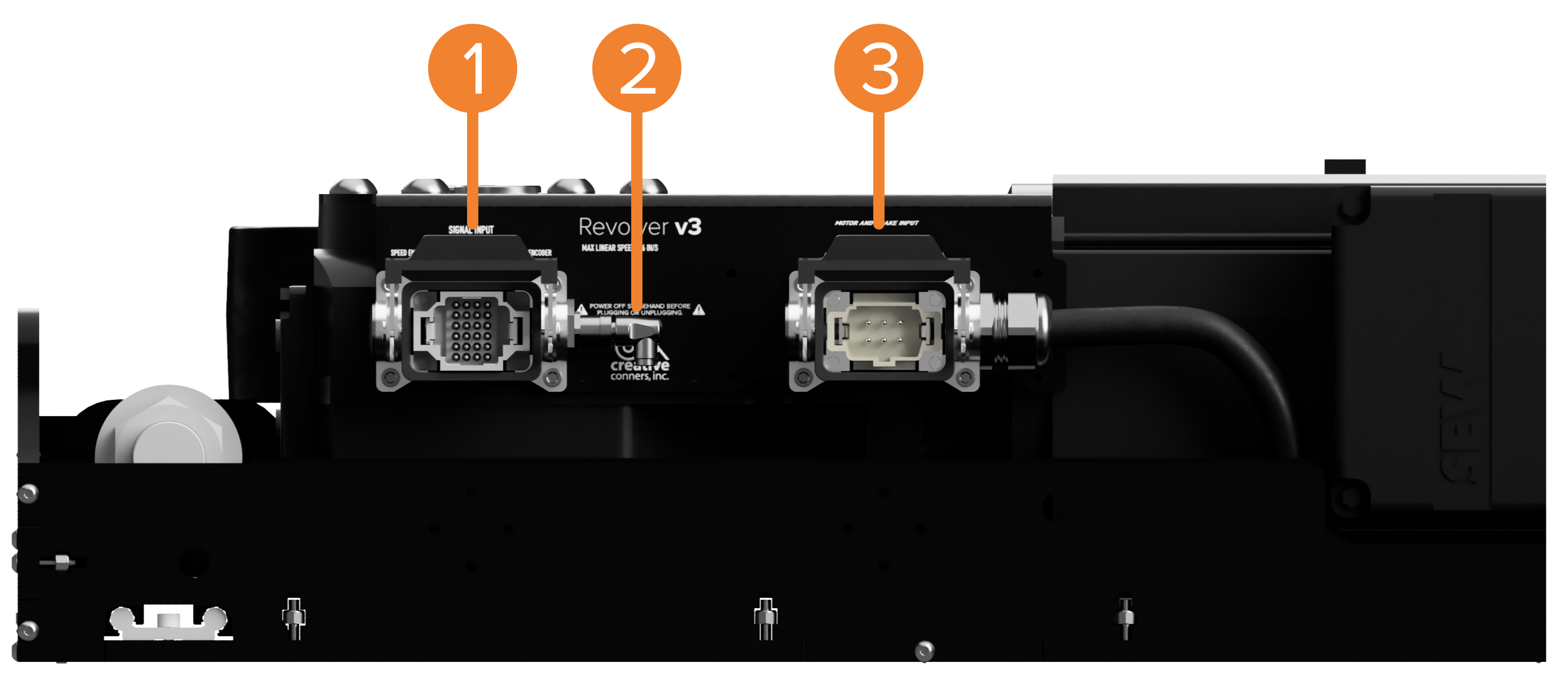

<figure><img src="/files/YkbZVasKfkZVxocZejiT" alt=""><figcaption><p>Revolver with Apprentice Connectors</p></figcaption></figure>

1. Signal connector
2. Position encoder connection
3. Apprentice Motor/Brake connector

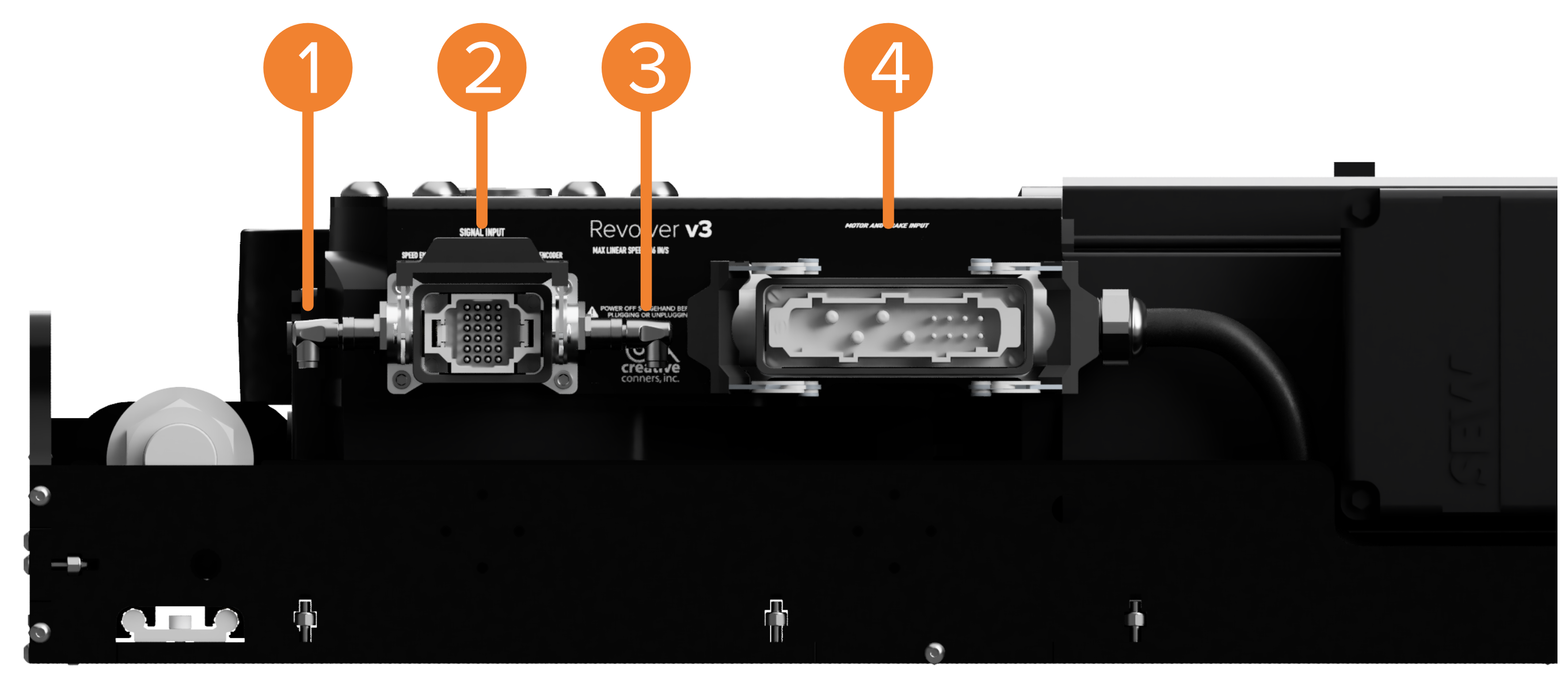

<figure><img src="/files/sVSiaGCX8wfowiDmyCun" alt=""><figcaption><p>Revolver with Pro Connectors</p></figcaption></figure>

1. Speed encoder connection
2. Signal connector
3. Position encoder connection
4. Pro Motor/Brake connector

## Classic Connections <a href="#dyykvvaba7j2" id="dyykvvaba7j2"></a>

Any Revolver can run from a Stagehand Classic, you'll need a motor and signal quid to make the connections.


---
