# Base

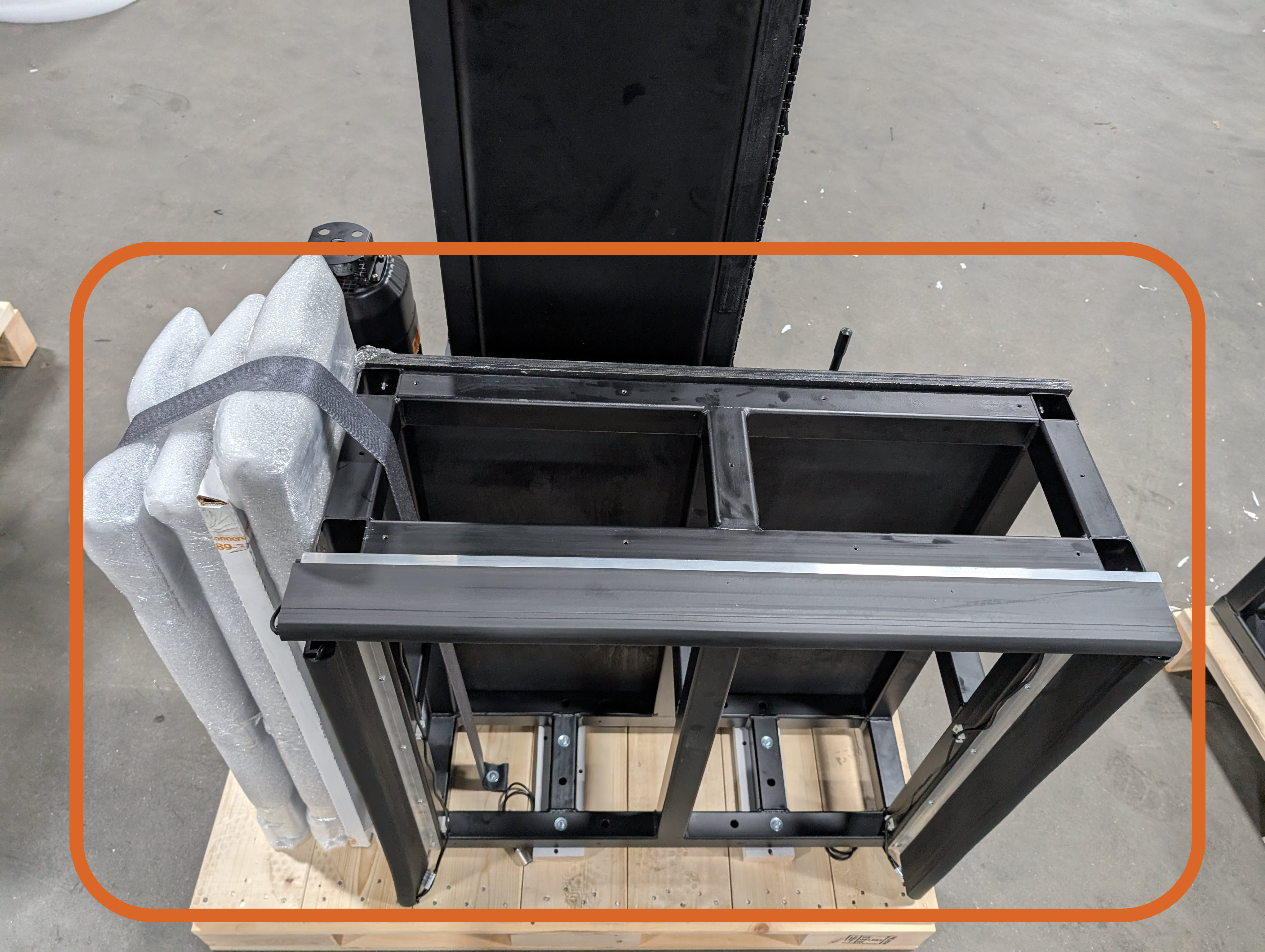

### Remove the platform and base pieces from the pallet

Set it aside

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-89c1798c01983ca3b55fa58699079a2f35445506%2Fremove-platform.jpg?alt=media" alt=""><figcaption></figcaption></figure>

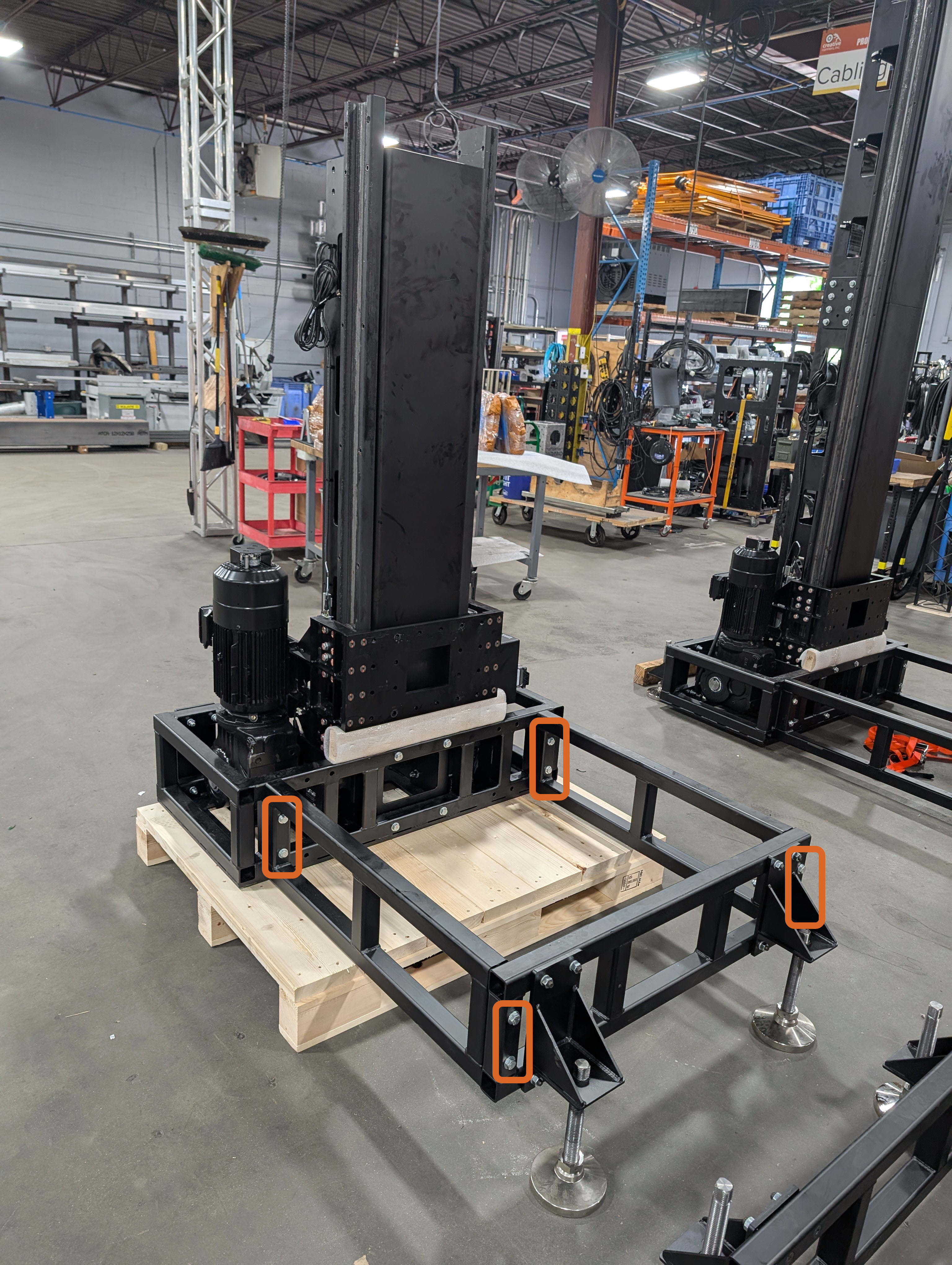

### Bolt the base together

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-df57cc1f5e2d2cbbb7e607ab3f839a32c6504406%2Fattach-base.jpg?alt=media" alt=""><figcaption></figcaption></figure>

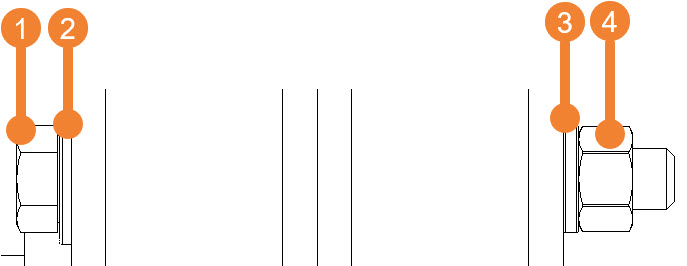

Hardware:

1. Qty: 8 - 1/2" x 5" Hex Bolt
2. Qty: 8 - 1/2" Flat Washer
3. Qty: 8 - 1/2" Lock Washer
4. Qty: 8 - 1/2" Hex Nut

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-4de5f8364fd02dcabec644d4695f37af2fdd4016%2Fbase-platform-connection-detail.jpg?alt=media" alt=""><figcaption></figcaption></figure>

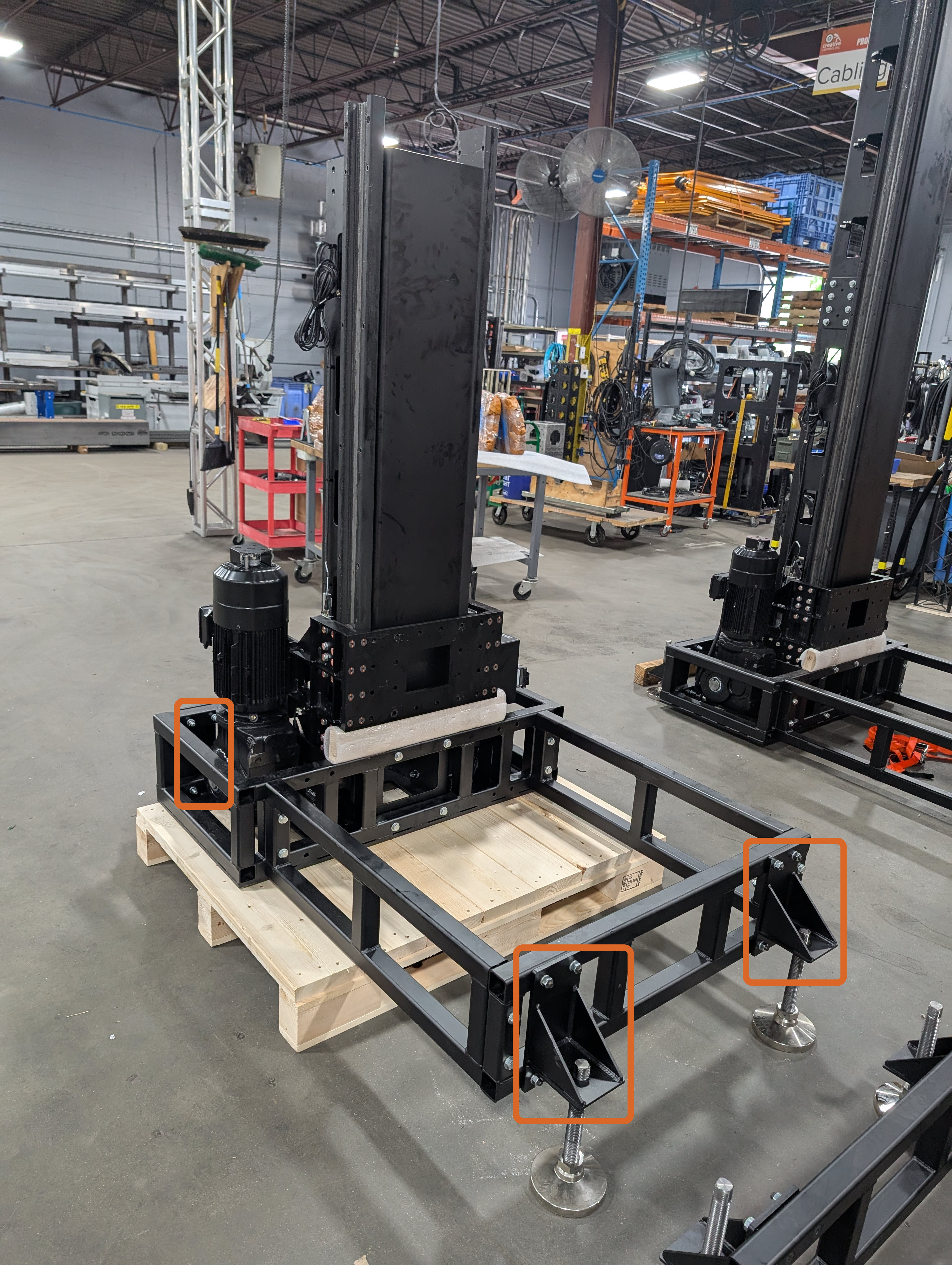

### Attach the feet to base

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-abff7c3dc0d172f38cba50a2e4bbf14bb91f2382%2Fattach-feet.jpg?alt=media" alt=""><figcaption></figcaption></figure>

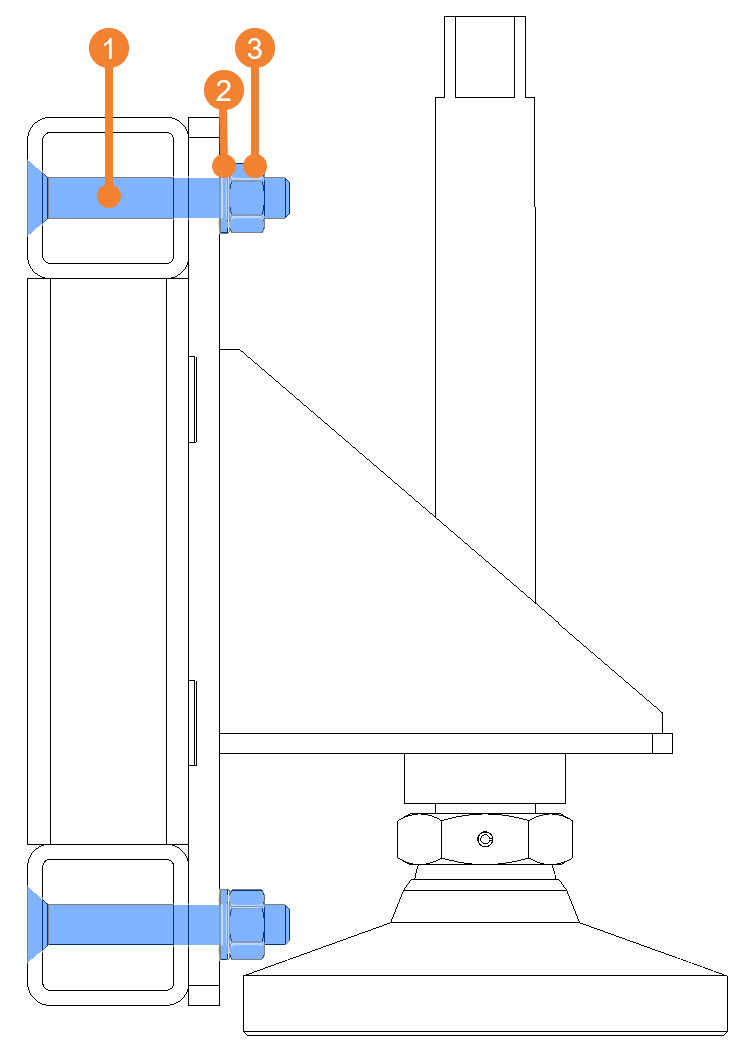

Hardware:

1. Qty: 16 - 1/2" x 3.25" Flat Head Cap Screw
2. Qty: 16 - 1/2" Lock Washer
3. Qty: 16 - 1/2" Hex Nut

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-42a1a77bf418c9a9c72d477b0c5fe2839fa6b5d2%2Ffeet-connection-detail.jpg?alt=media" alt=""><figcaption></figcaption></figure>

### Jack the base up and slide the pallet out of the wa.
