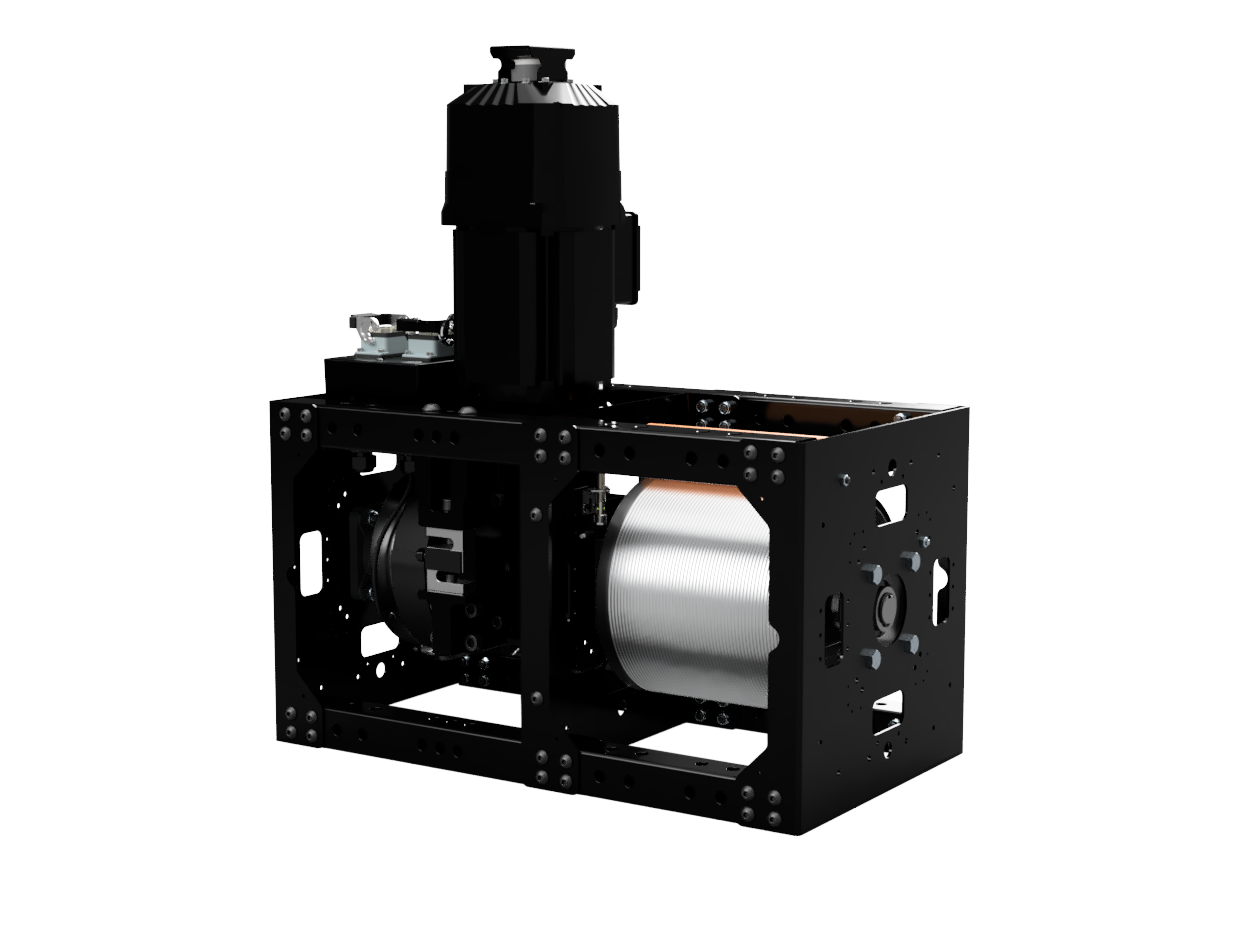

# Spotline Mini v2

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-56193a90d30a43888db110cebd39003765450d9f%2FSpotline_Mini_v2.png?alt=media" alt=""><figcaption></figcaption></figure>

## Electrical Specs

| Input Voltage            | 208-230V/460V 60HZ, 3 PHASE |
| ------------------------ | --------------------------- |
| Input Current            | 6 amps/3 amps               |
| Motor brake              | 200-240VAC                  |
| Load brake               | 200-240VAC                  |
| Load Capacity at 36"/sec | 250 lbs                     |
| Drum Diameter            | 10"                         |
| Wire Rope Size           | 1/8”                        |
| Wire Rope Capacity       | 127'-0"                     |

## Physical Specs

|                                 |                     |
| ------------------------------- | ------------------- |
| Weight                          | 260lbs              |
| Shipping Weight                 | 300lbs              |
| Dimensions (LxDxH)              | 28-5/8" x 16" x 32" |
| Manual brake release min weight | 45lbs               |

## Drawings

{% file src="<https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-d83c3b5398d1be20bc67b5bad904ace27978bd71%2FSpotline%20Mini%20v2%20-%20Overview.pdf?alt=media>" %}

Documentation is in the works - check back soon for updates!
