Load Cell Troubleshooting

Load cells are super cool and can help reduce underload and overload situations. They are yet another sensor that can cause trouble.

Load Status Icons

Overweight	Underweight	Load Cell Mismatch

Load Cell Mismatch

The load cell mismatch fault rears its ugly head when any of Weight Scaling or Weight Alarm numbers differs between what's stored on the Stagehand and what's stored in Spikemark.

How To Fix Load Cell Mismatch

• Click Update Values to send the Spikemark Values to the Stagehand OR

• Click Accept Stagehand Values to import the Stagehand Values into Spikemark.

When does this typically happen?

• Starting a new show file

• Swapping to a different Stagehand

• Reconnecting to a Stagehand (rounding error)

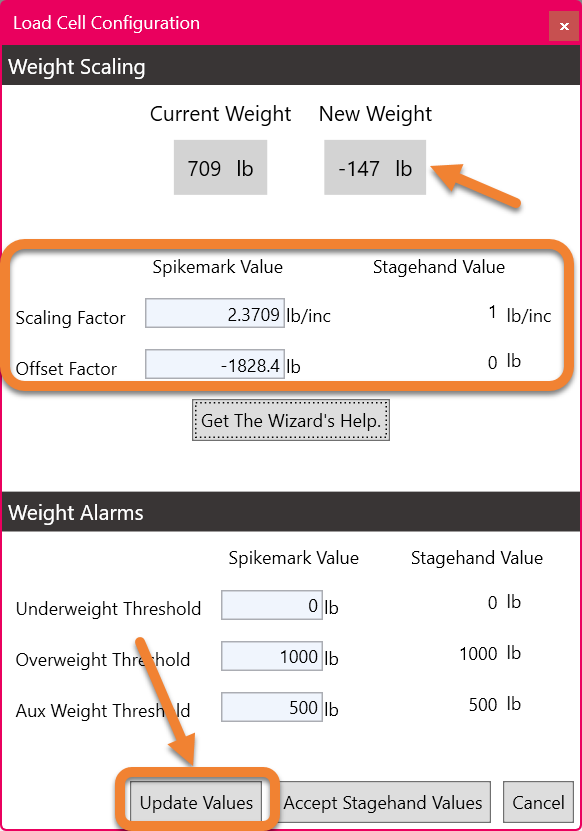

In this image, the Weight Scaling numbers are different, so we are telling Spikemark to send the new "Spikemark Values" to the Stagehand

Swapping Stagehand

If you've connected a new Stagehand, it's almost guaranteed that the stored Load Scale will be different from what is stored in the Spikemark file. In this case you want to push the Spikemark value to the Stagehand:

Reconnecting to the Same Stagehand

If you haven't changed the show file, Stagehand controller or the hoist yet still encounter the Load Cell Mismatch, the issue is a rounding error. Computers are really good at storing numbers - they can store many digits to the right of the decimal. That's great for precision, but challenging to display and parse for human brains. Spikemark rounds the scale value to fewer digits than is initially stored on the Stagehand, and causes the mismatch fault to display. In this case, you want to pull the Stagehand Value into Spikemark.
