# Showstopper 4 Base

![](https://lh3.googleusercontent.com/7Zkd4p5SVp73ATgFTz53XnWnJ1gpPweFmmKG2N6K48d8uqYAeIXM1vM1ixfOT40NnMwNaw_aWDto3PGgMt0dIEBEr_Fx8p77BmxeliGoFralQ0HgNh3MJVyZbbBYK5jMey1jMBVt)

### GETTING STARTED

Congratulations on your purchase of the Showstopper 4 Base from Creative Conners, Inc! The Showstopper 4 Base is the mastermind behind bringing your Show To A Stop during an emergency.

Built with SIL 3 rated components and addressable E-Stop buttons, the Showstopper 4 Base is the foundation of your automation system.

This manual will guide you through:

* Unpacking
* Installation
* Connecting Devices
* Troubleshooting

If you need help along the way, contact us via email (<support@creativeconners.com>), our website (creativeconners.com), or by phone (401-289-2942 x2). We want your automation to succeed, and we are here to help you through any issues you may encounter.

### WHAT’S IN THE BOX <a href="#h.yhcxx59nnxkp" id="h.yhcxx59nnxkp"></a>

* 1 x Showstopper 4 Base (2U)
* 1 x IEC Power Cable
* 3 x Showstopper 4 Accessory Terminators
* 4 x 10x32 Rack Screws

If any of these components are missing, please contact us for a replacement.

### SHOWSTOPPER 4 BASE FEATURES

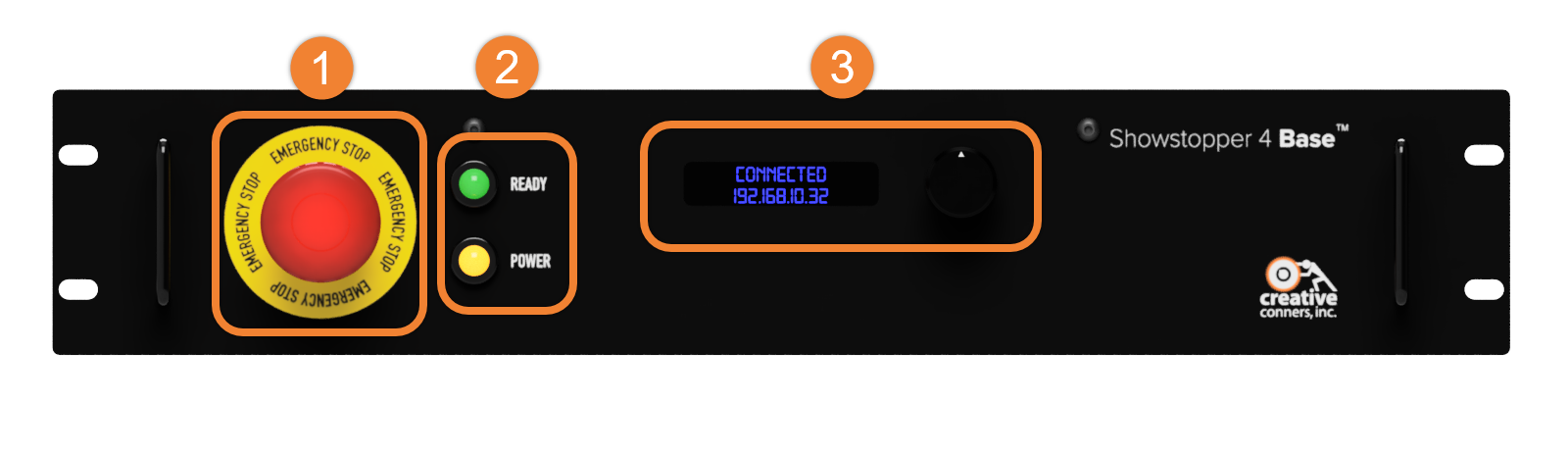

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-675c57b4b10ebe28e6f60e7c2bb7ca24a367cabe%2FFeatures%20-%20Front.png?alt=media" alt=""><figcaption><p>Front Panel</p></figcaption></figure>

1. Illuminated E-Stop Button
2. Status indicator Lights
3. Status Display

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-d4dcb1450a52d22bc71b78cdf60ca893f8ca7603%2FFeatures%20-%20Rear.png?alt=media" alt=""><figcaption></figcaption></figure>

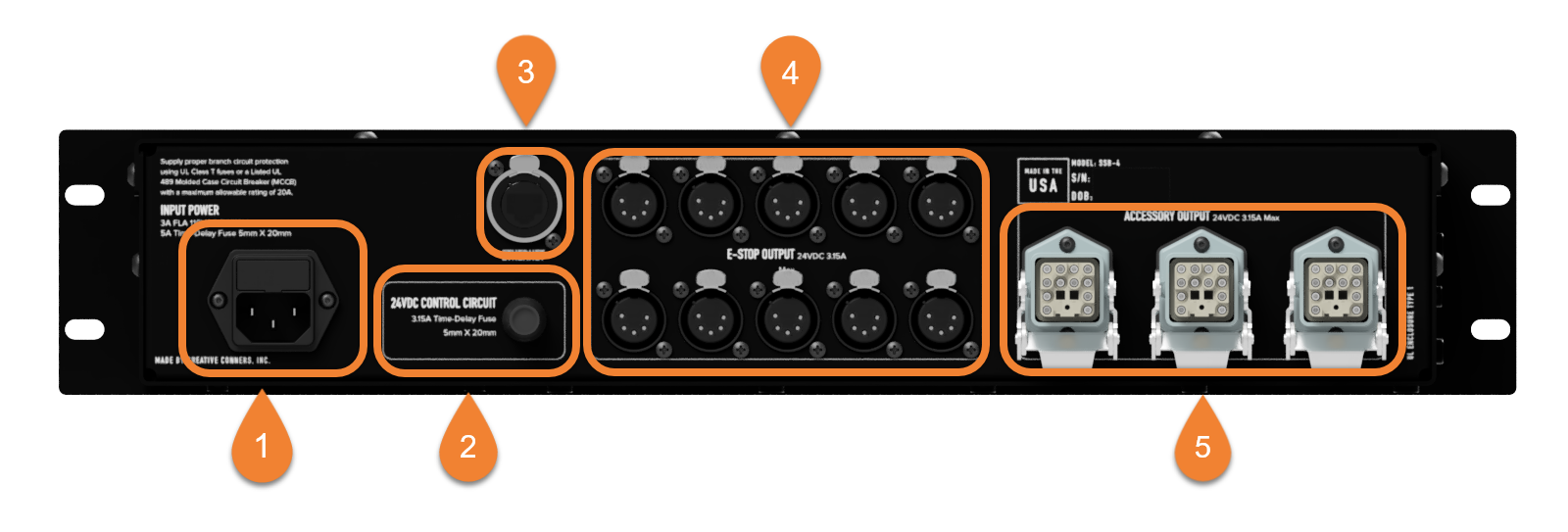

1. Input Power - 120VAC 3A
2. 24 VDC Control Circuit Overcurrent Protection
3. EtherCON Connection
4. E-Stop Outputs (24VDC)
5. Showstopper 4 Accessory Outputs
   1. Each Accessory Output must be terminated
