Unlocked Group Movements

An unlocked group movement is denoted in a cue by a gray header with an unlocked symbol to the left of the group name. Then each of the motors in the group are listed below with their own movement because unlocked groups allow each motor to move to a different location with a different speed. Aside from the way the group is displayed in the cue, each child movement is programmed identically to a regular Motor Movement.

Additional Properties

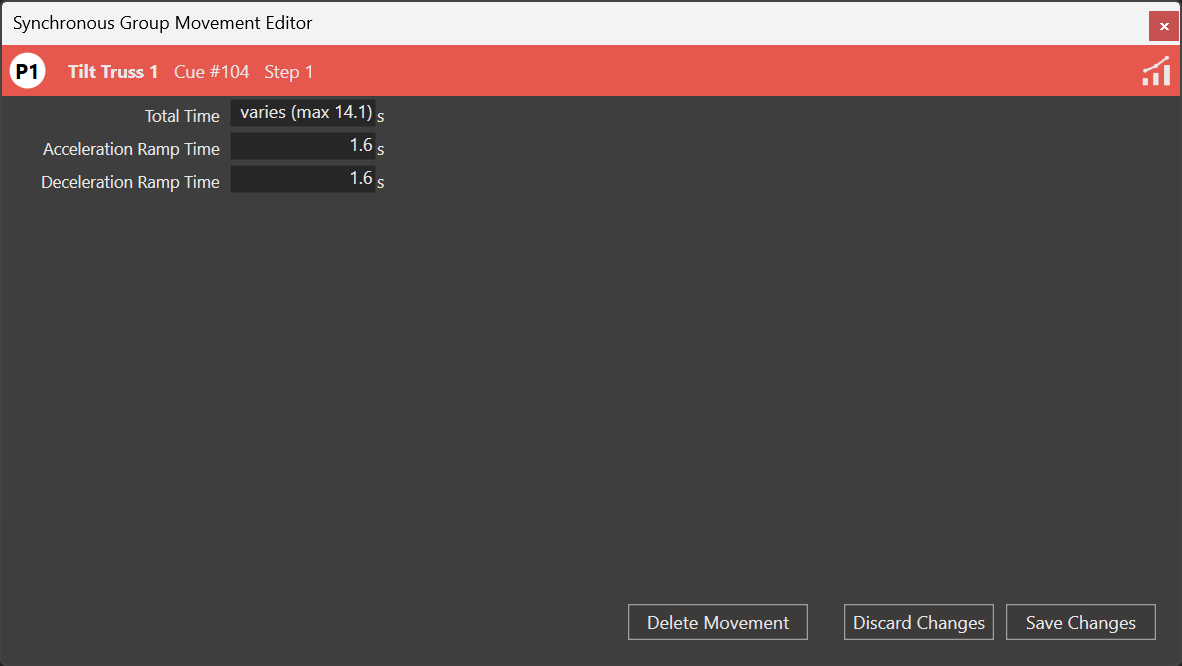

If you click the gray unlocked group header in the cue list then the unlocked group movement editor will open. This editor allows you to set total time, acceleration ramp time, and deceleration ramp time for all the child movements. This allows the child movements to run to different positions but still happen in the same amount of time.
