# Column Extension

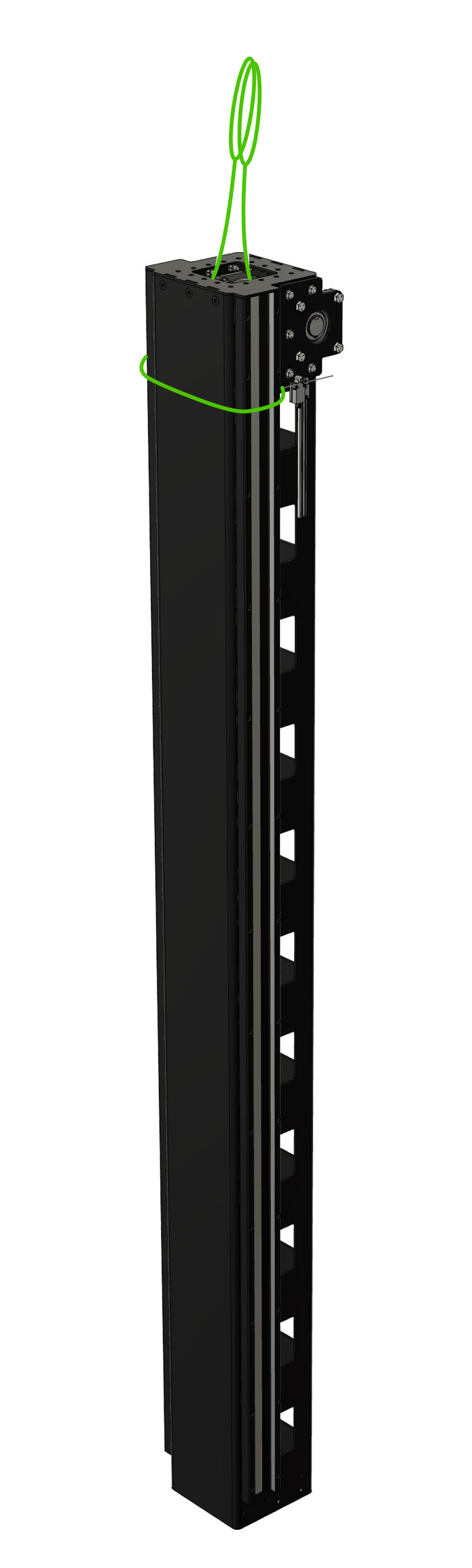

### Lift the extension up and place on top of base column.

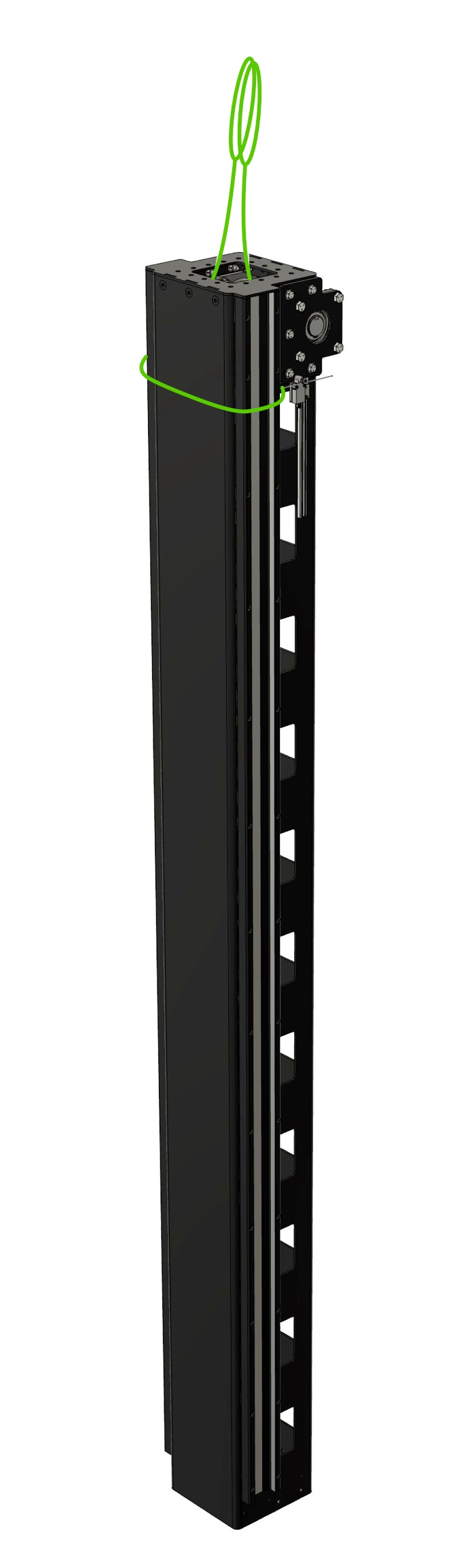

![Column Extension Lifting Sling](https://creativeconners.com/files/Manuals/floorpocket-v2/column-extension-lifting.png)

### Make the splices, leave bolts loose

Pro-Tip: Using a drift pin is helpfup for aligning the hole and making the bolted connection.

#### Splice Hardware

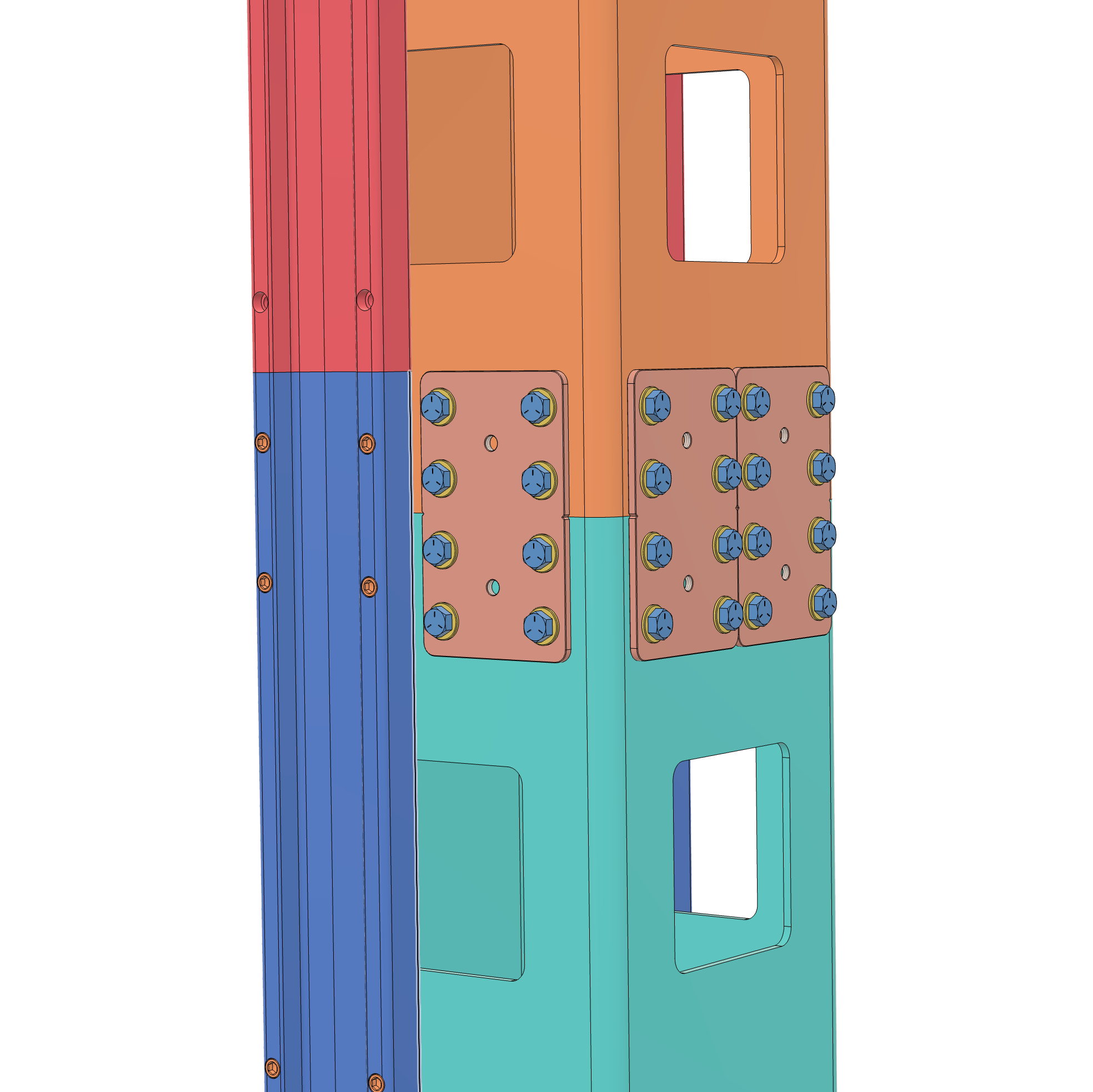

![Column Splice](https://creativeconners.com/files/Manuals/floorpocket-v2/column-seam.png)

Hevi- Rail Hardware:

* Torque Specification: 41 ft/lbs
* Qty: 4 - 3/8" x 2" Socket Head Cap Screws
* Qty: 4 - 3/8" Lock Nuts

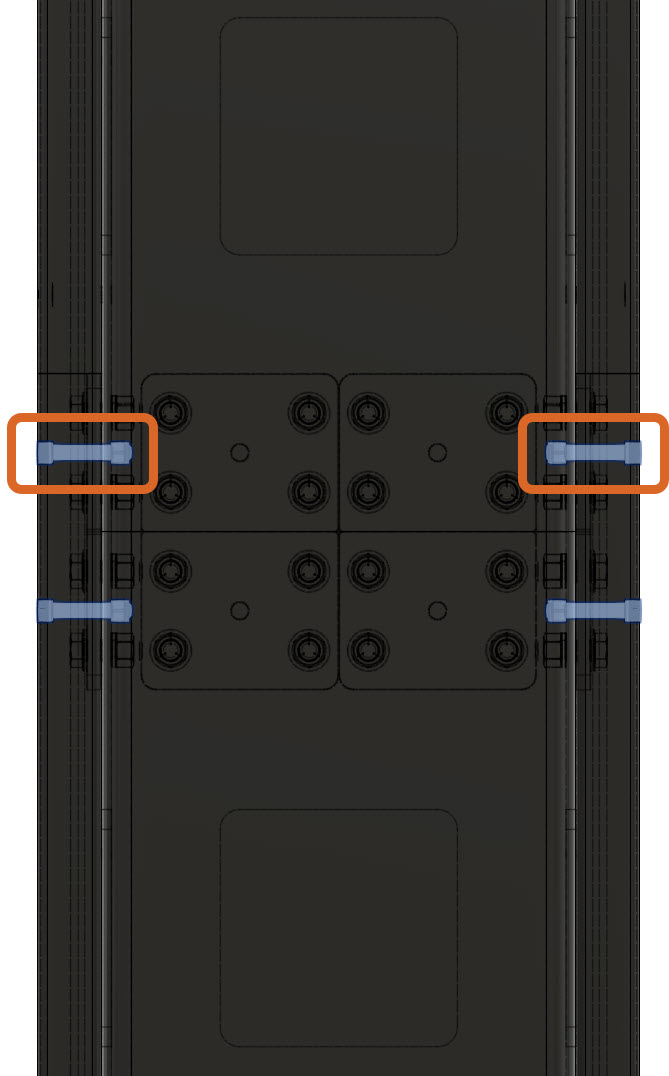

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-1c1b65ff598bfa722b9221393f578b39292a0ee6%2Fhevirail-splice-connection-detail.jpg?alt=media" alt=""><figcaption></figcaption></figure>

Splice Hardware:

* Torque Specification: 57 ft/lbs
* Qty: 4 - Splice Plates

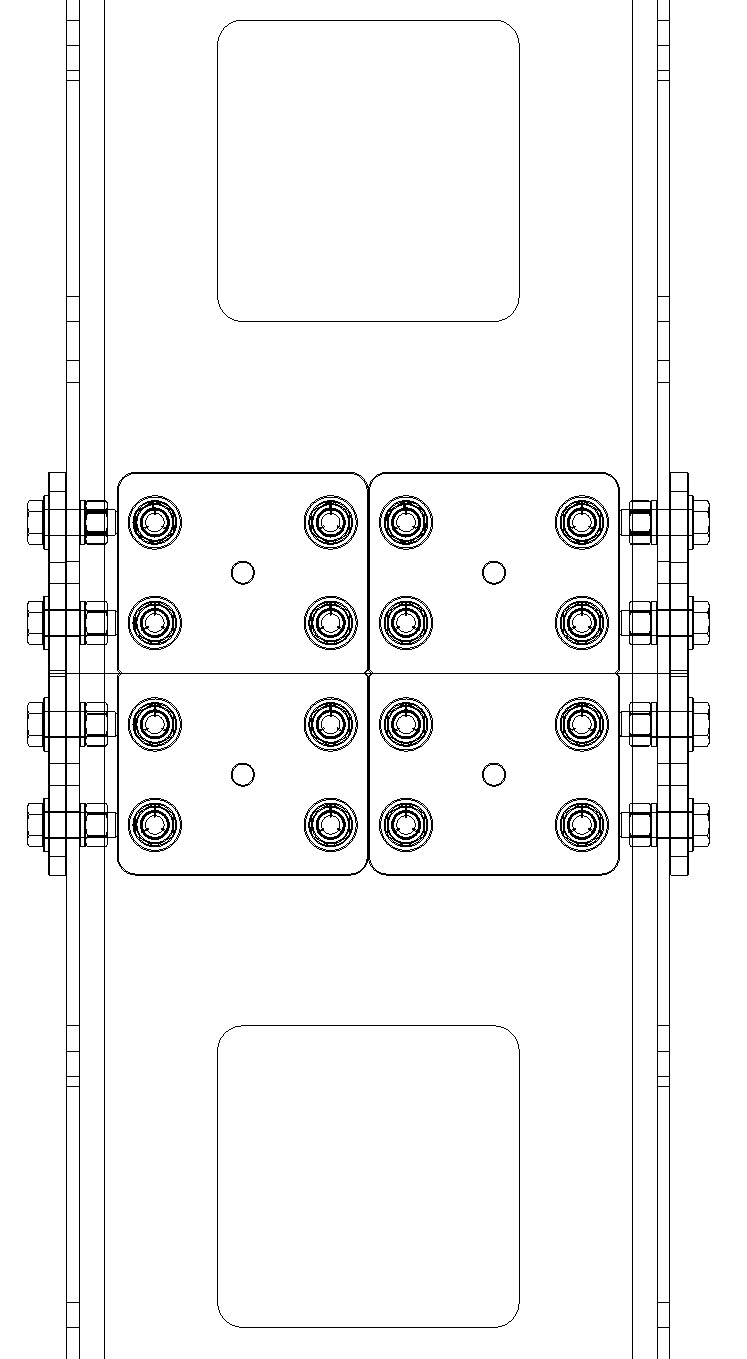

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-c9d8e7b0331c13fe0538b62414933c76a953acf5%2Fsplice-detail.jpg?alt=media" alt=""><figcaption></figcaption></figure>

1. Qty: 32 - 1/2" x 1.5" Hex Bolt
2. Qty: 32 - 1/2" Flat Washers
3. Qty: 32 - 1/2" Lock Washers
4. Qty: 32 - 1/2" Hex Nut

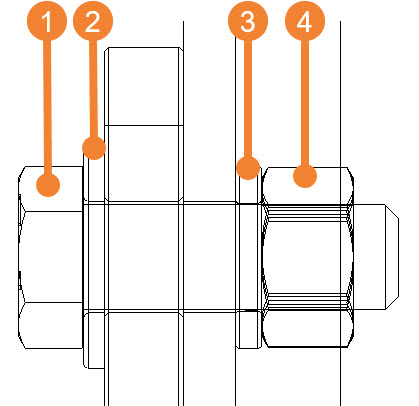

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-35362a70f8c57f99bcd3ccd52046e0c47ba1ad80%2Fsplice-hardware-detail.jpg?alt=media" alt=""><figcaption></figcaption></figure>

### Align the hevi-rail.

* Make sure the seems on the hevi-rail line up
* Tighten bolts

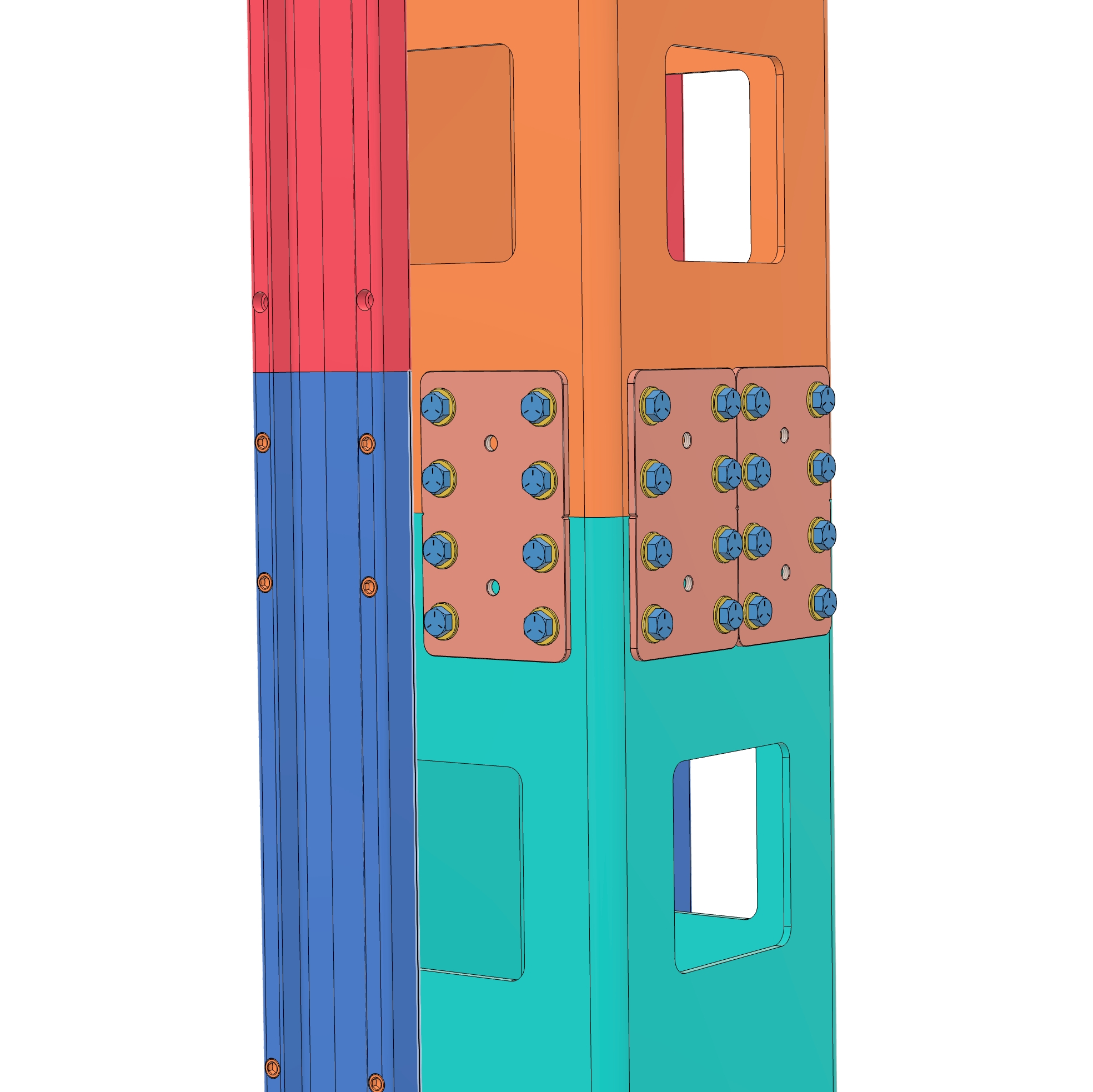

![Splice Plate Detail](https://creativeconners.com/files/Manuals/floorpocket-v2/column-seam-detail.png)

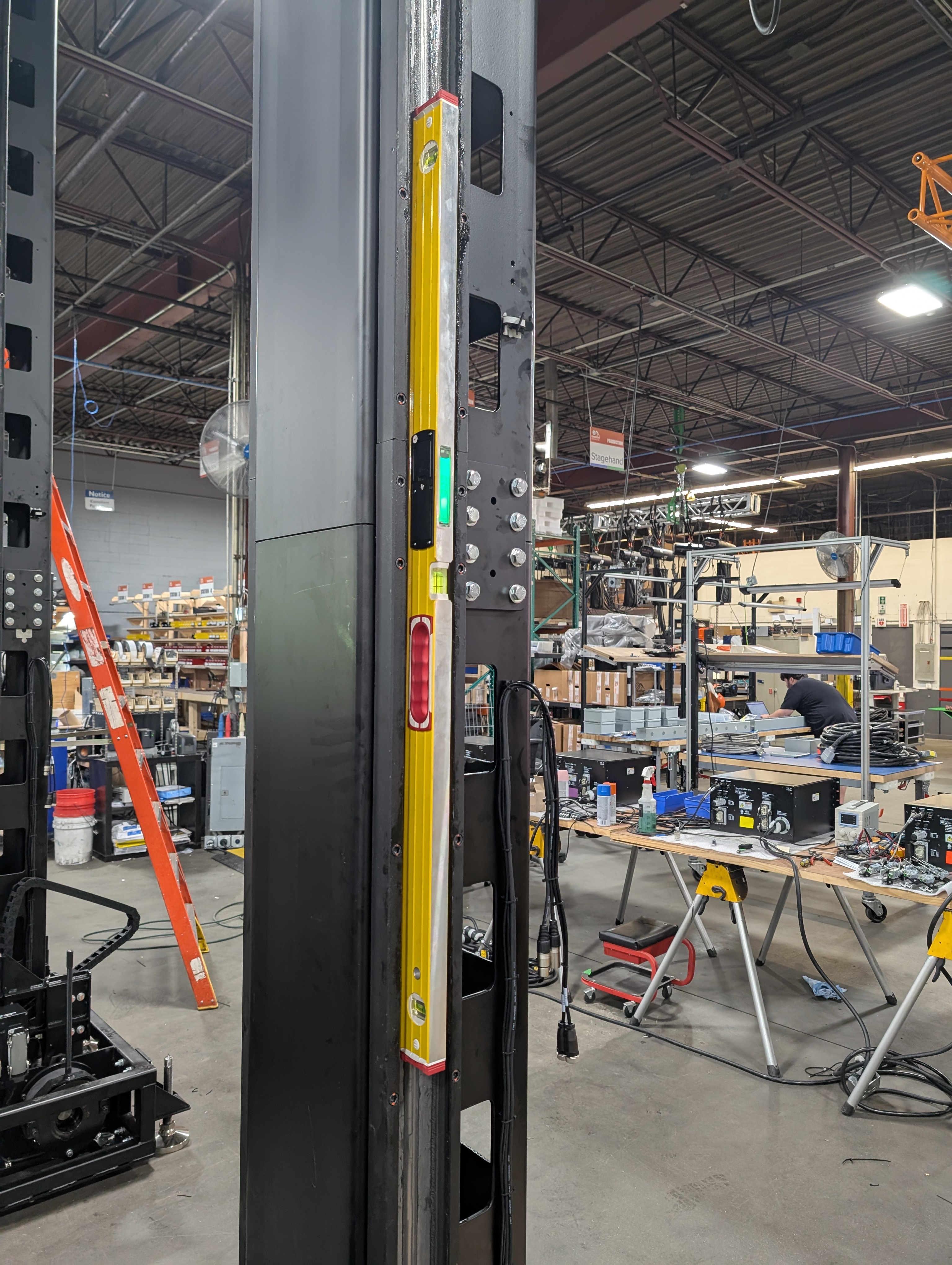

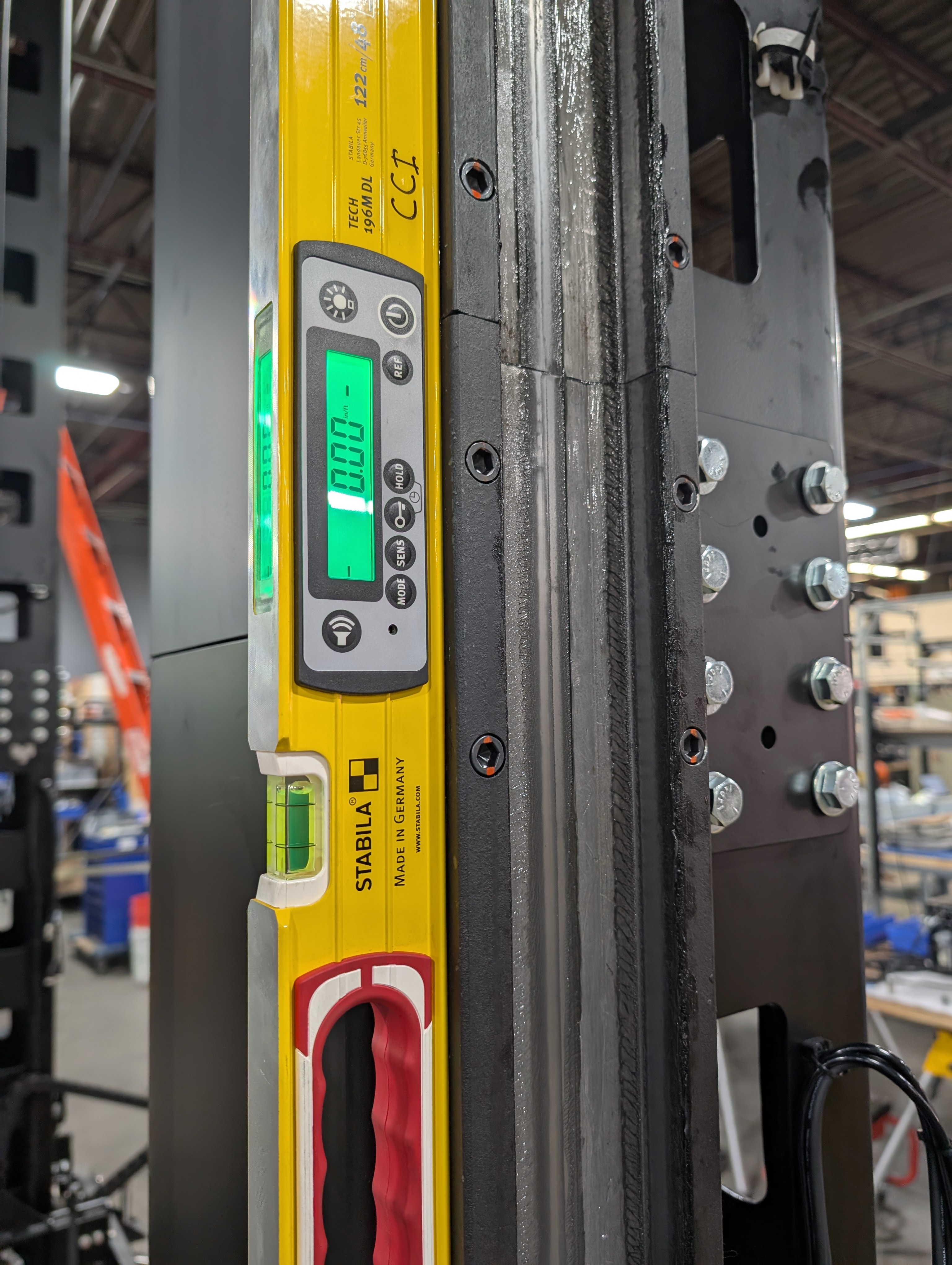

### Level the base platform

Adjust the leveling feet to make sure the hevi-rail is sitting plumb

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-a15a139c0de92cd54a85c4ce939755dd6c0e2c86%2Flevel-1.jpg?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-498311d2969d5079074ceb63f8aae09c1b0129fc%2Flevel-2.jpg?alt=media" alt=""><figcaption></figcaption></figure>
