Cue Status
The status of a cue will be visually displayed in several places:
Stage Model Viewer
Stagehand List
Cue List
Cue Control
Cue Status States
​
Cue Unloaded
​
​
Cue Loaded
​
​
Cue Running
​
​
Cue Complete
​
​
Cue Faulted
​
Cue Unloaded

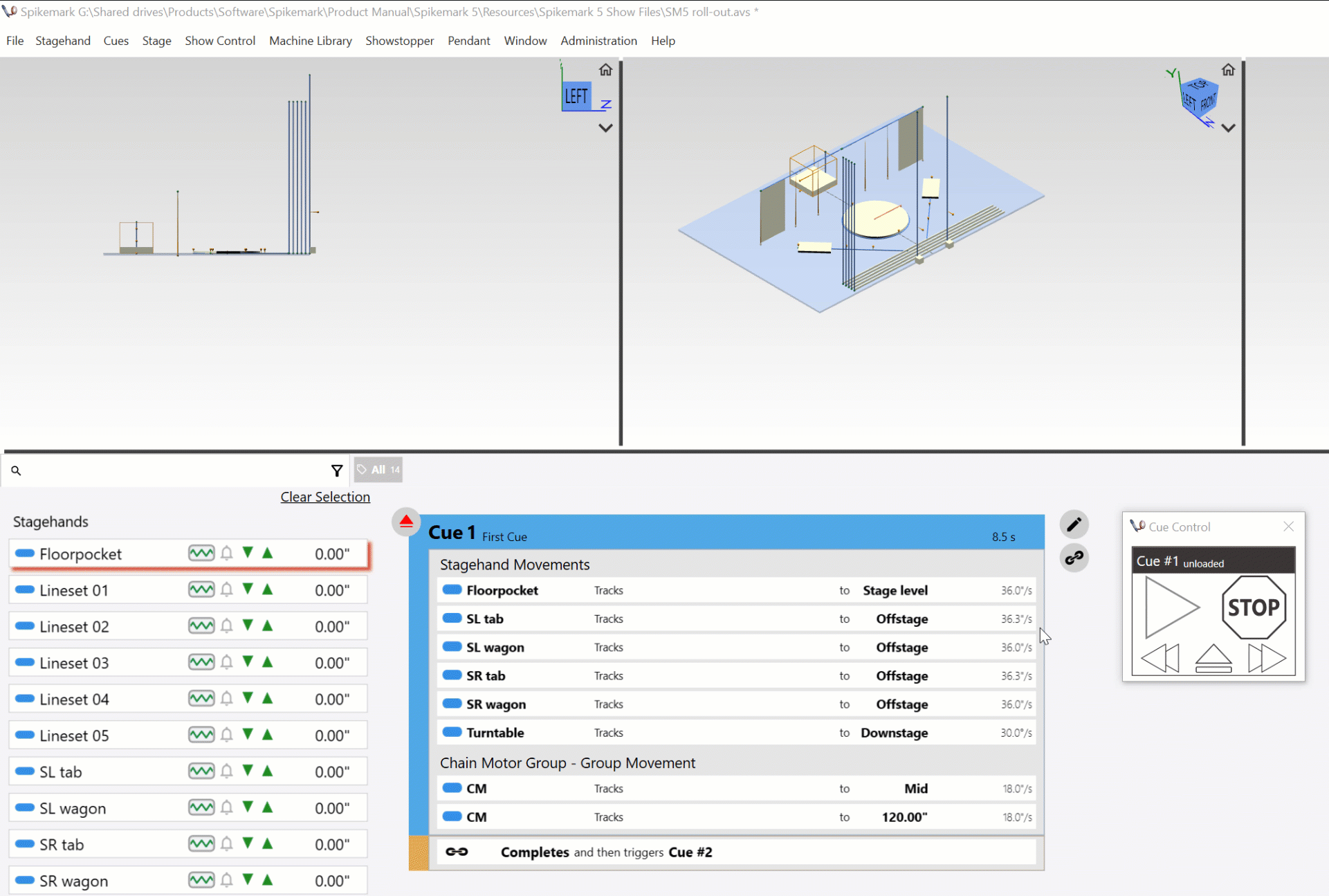

When you first open Spikemark, there will be no cues loaded. If there was a cue loaded already, press the
Stop Icon
in the
Cue Controls
or use the hot key
F6
to
unload
the cue.
Cue Loaded
Cue Control Header:
Cue # Loaded
Stage Model Viewer:
Current Location:
Bright Red
Target Location:
Dark Red
Cue:
Red Outline
Movement:
Red Highlight
Motor Status:
Rocket Icon
Cue Running
Cue Control Header:
Cue # Running
Stage Model Viewer:
Green
Cue:
Highlighted Green
Movement:
Green Progress Bar
Motor Status:
Green Forward Arrow
Cue Complete
Cue Control Header:
Cue # complete
Stage Model Viewer:
Blue
Cue:
Purple Outline
Movement:
Purple Highlight
Motor Status:
Blue Complete Icon
Cue Faulted
Cue Control Header:
Cue # faulted
Stage Model Viewer:
Yellow
Cue:
Yellow Outline
Movement:
Yellow Highlight
Motor Status:
Can be various
Motor Status Icons
, depending on the fault.
