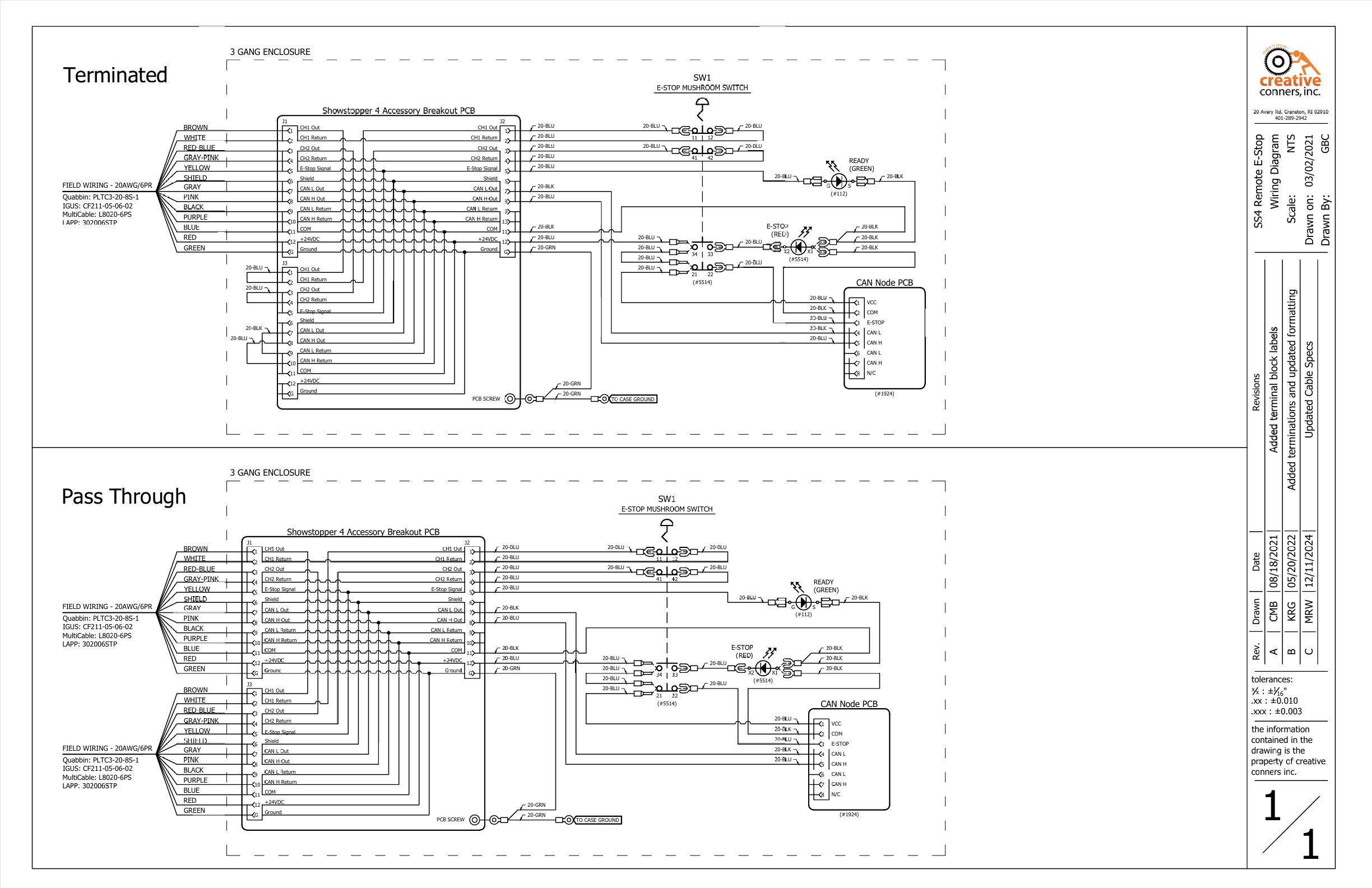

Making The Connections

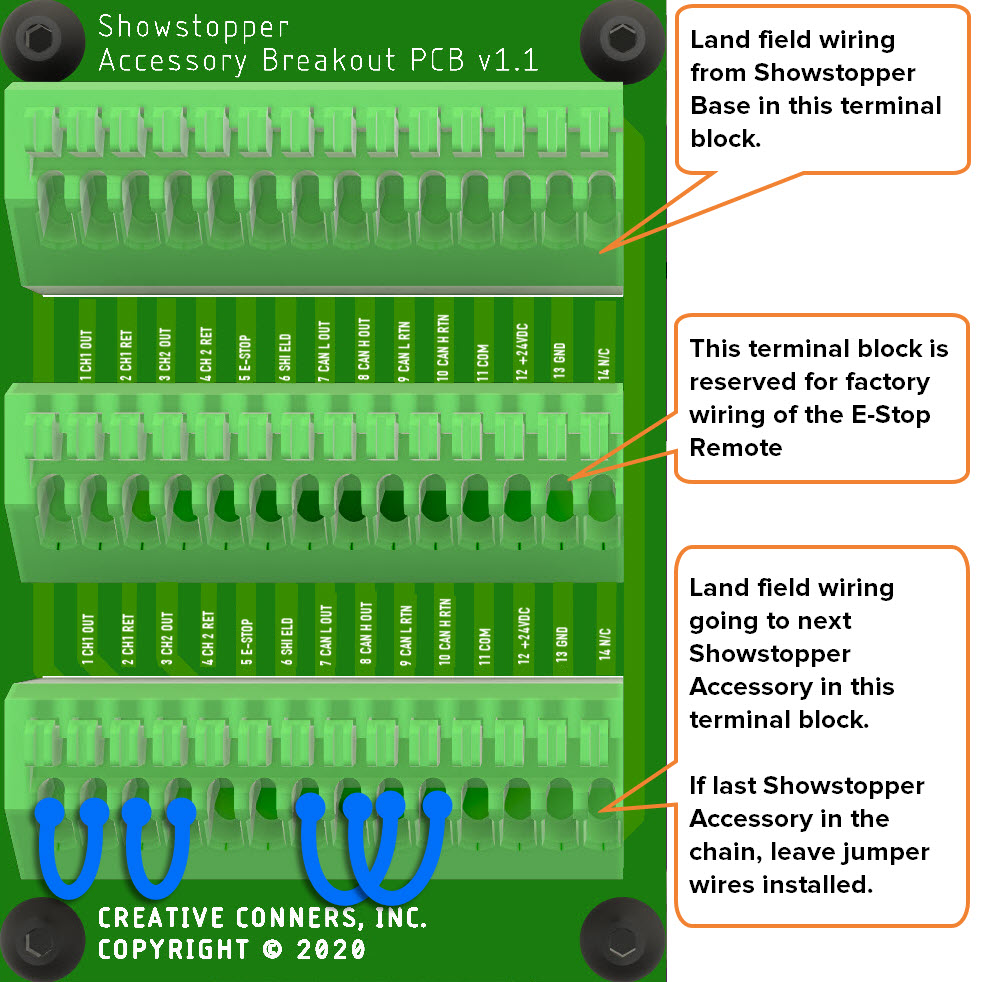

Wire in your cables using the toolless terminal blocks.

The cable must have at least 6 twisted pairs (12 conductors) of 20AWG (20/6 STP). Here are a few purchasing options:

• Quabbin PLTC3-20-8S-1

• Igus CF211-05-06-02

• LAPP 302006STP

• MultiCable L8020-6PS
