Maintain the Machine

Check chain tension quarterly

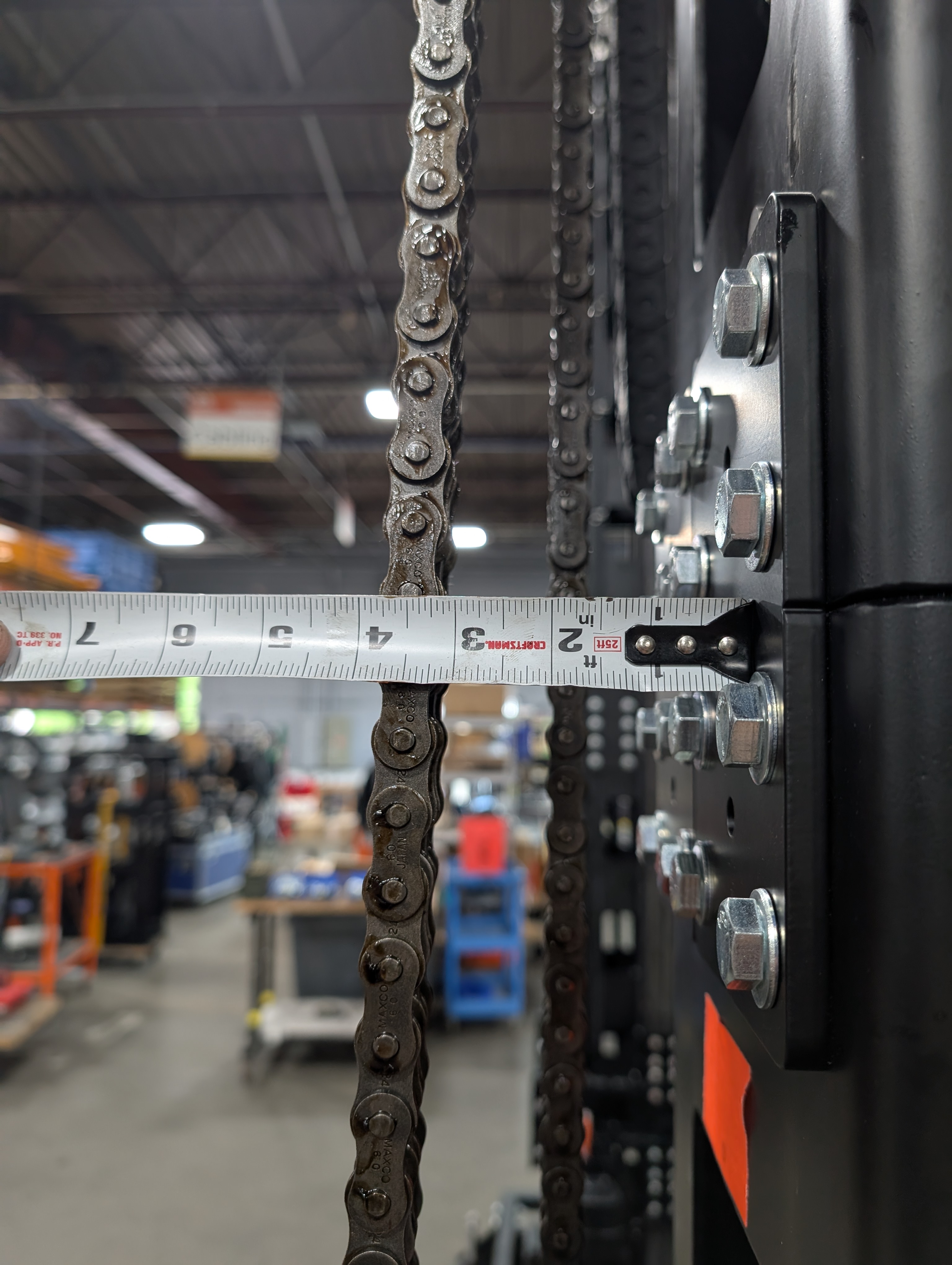

This is roughly the deflection you should expect at center

Lubricate the roller chain annually

Lubricate by using SAE 20 gear Oil. Apply with a soft bristle brush.

Degrease and lubricate chain every 3 years

Degrease the chain. Simply Green will work fine, if you immediatley dry and relube. Lubricate by using SAE 20 gear Oil. Apply with a soft bristle brush.

Grease Bearing when needed. Check Quarterly

Grease the bearings if the bearings start to make noise. Use any lithium-based NLGI #2 grease using a grease gun applied to the zerk fitting on the bearing.

Important Note: Overlubrication is a major cause of bearing failures. Please relubricate conservatively when unsure of bearing requirements
