Docs
Download Spikemark
  • Creative Conners Docs
  • Technical Support
    • Tech Tips
      • Revolver V1 Position Issues
      • Setting Up a New Comptuer for Spikemark
  • Spikemark 6
    • Navigating Spikemark
      • Show Modes
      • Workspaces
        • Jog Workspace
        • Cues Workspace
        • Preset Workspace
        • Customize Your Workspace
      • Selection and Input
      • Tags
      • Filters
      • Search
      • Keyboard Shortcuts
    • Cues
      • Cue Structure
      • Cue Creation
        • Add Movements
        • Add Triggers
        • Add Actions
      • Editing Cue Properties
      • Cue Deletion
    • Movements
      • Motor Movements
      • Locked Group Movements
      • Unlocked Group Movements
      • FX Movements
      • OSC Movements
        • Custom OSC Command Library
      • UDP Movements
      • Modbus Movements
    • Triggers
      • Playback Go Trigger
      • Delay Trigger
      • Completion Trigger
      • Position Trigger
      • FX Input Trigger
      • Stacking Triggers
    • Actions
      • Motor Property Action
      • Motor Method Action
      • Playback Property Action
    • Running Cues
      • Playbacks
        • Playback Editing
        • Playback Control Speed
        • Playback Stacking
      • Cue Controls
      • Consolette
      • Restore Cue
    • Spikes
      • Simple Spikes
      • Dynamic Spikes
        • Incremental Spikes
        • Nearest Forward Multiple Spikes
        • Nearest Reverse Multiple Spikes
        • Nearest Multiple Spikes
      • Locked Group Spikes
    • Presets
      • Presets Overview
      • Creating, Editing, and Deleting Presets
      • Running Presets
    • User Authentication and Authorization
      • Overview
      • Users
      • Roles
      • Permissions
    • Show Control
      • Open Sound Control (OSC)
        • Send OSC Messages
        • OSC Position Output
        • OSC Input Trigger
          • OSC Input Messages
          • Cue Messages
          • Playback Messages
          • Sequence Step Messages
          • Motor Movement Messages
          • Motor Messages
        • Troubleshooting OSC
          • OSC Response Window
          • Medialon Manager Configuration
      • UDP
        • Send UDP Messages
        • UDP Position Output
      • Watchout Position Output
      • PosiStageNet (PSN)
  • Spikemark 5
    • How to Open Spikemark
    • Spikemark Installation
      • User Authorization
      • Windows Settings
    • Quick Start Tutorial
      • Step 1: Adding Motors
        • 1.1 Simulator Mode
        • 1.2 Add Motors from the Machine Library
        • 1.3 Rename Motors
        • 1.4 Add A Group
      • Step 2: Saving
      • Step 3: Jogging
        • 3.1 Single Axis Jogging
        • 3.2 Jogging Multiple Machines (Multi-Jog)
        • 3.3 Move To Position
      • Step 4: Writing Your First Cues
        • 4.1 Cues Workspace
        • 4.2 Add A Movement
        • 4.3 Duplicate A Cue
        • 4.4 Delete A Movement From A Cue
        • 4.5 Edit Movement - Changing Position, Speed, and Time
        • 4.6 Copy to Group
        • 4.7 Cue Total Time
        • 4.8 Load and Run your Cue
        • 4.9 Spikes
        • 4.10 Cue Links
        • 4.11 Restore Cue
        • 4.12 Delete A Cue
      • Step 5: Going Live
        • 5.1 Set Your IP Address
        • 5.2 Test Manual Movement
        • 5.3 Resetting Position
        • 5.4 Program Your Show
      • Sharpen Your Programming Skills
    • Steps to a Successful Load-In
    • Show Modes
    • Locking Changes
    • Workspaces
      • Customize Your Workspace
    • Selection and Input
    • IP Address and Network Connection
      • Setting Computer IP Address
      • Setting Stagehand IP Address
      • Setting Showstopper Consolette IP Address
      • Setting Pendant IP Address
      • Setting Showstopper IP Address
      • Setting Showstopper Node ID
      • Connecting To A Stagehand
      • Connecting To A Showstopper Consolette
      • Connecting To A Pendant
    • Adding Motors or Machines
      • Adding Motors or Machines From The Machine Library
      • Adding Custom Motors or Machines To Spikemark
      • Importing Motors or Machines
      • Exporting Motors or Machines
    • Stage Model Viewer
      • Changing Your Viewer
      • Adjusting the Stage Size
      • Changing the Type of Scenery
      • Adjusting Model Dimensions
      • Adjusting Model Rotation
      • Adjusting Location On Stage
      • Making Models
        • Modeling A Winch
        • Modeling A Lift
        • Modeling A Hoist
        • Modeling A Vertical Curtain
        • Modeling A Split Curtain
        • Modeling A Turntable or Periaktos
    • Tags
    • Editing Direction Labels
    • Filters
    • Search
    • Position
      • Reset Position
      • Units
      • Position Scale
        • Position Scale Wizard
        • Manually Calculate Position Scale
      • Limits
        • Setting Hard Limits
        • Setting Soft Limits
      • Target Tolerance
      • Strict Timing Mode
      • Position Fault and Max Position Error
      • Motor Tuning Overview
        • Motor Tuning - The Practical Approach
    • Load Cell
      • Load Cell Readout
      • Load Cell Configuration
      • Load Cells and Groups
    • Speed
    • Spikes
      • Adding A Spike
      • Removing A Spike
      • Spike Input Fields
      • Simple Spike
      • Incremental Spike
      • Nearest Forward Multiple Spike
      • Nearest Reverse Multiple Spike
      • Nearest Multiple Spike
    • Editing Cues
      • Adding and Deleting Cues
      • Adding and Deleting Movements
      • Edit Movement
      • Edit Cue Options
    • Cue Controls
    • Cue Status
    • Cue Links
      • Completion Link
      • Time Link
      • Position Link
      • Input Link
      • Deleting A Cue Link
    • Presets
    • Motor Groups
    • Showstopper Node Editor
    • Show Control
      • Open Sound Control (OSC)
        • OSC Position Output
        • OSC Messenger
          • Expanding The Command Library
        • OSC Response Window
        • OSC Input Trigger
          • Input Messages
          • Cue Commands
          • Motor Commands
          • My OSC Input Trigger Isn't Working, Is there another way?
      • UDP
        • UDP Position Output
        • UDP Messenger
      • Watchout Position Output
      • Modbus Effect
      • PosiStageNet (PSN)
    • Drive Communication
      • Drive Information
      • Configuring The Drive
      • Analyzing Movements
      • Drive Communication: Compatibility
      • Drive Communication: Setting VFD Parameters
      • RS-485 Upgrade
        • Upgrading an A800
        • Upgrading an A700
        • Drive Communication Troubleshooting
      • VFD Fault Codes
    • Motor Status Icons
    • Keyboard Shortcuts
    • Advanced Cue Techniques
  • Showstopper
    • Showstopper 4 Base
      • Installation
      • Operation
      • Troubleshooting
      • Specifications
    • Spikemark Console
      • Making-The-Connections
      • Using-the-Console
      • Console-Firmware
      • Troubleshooting
      • Specifications
    • Spikemark Pendant V2
      • Getting Started
      • Setup
      • Operation
      • Troubleshooting
      • Specifications
      • Drawings
    • Showstopper 4 E-Stop Hub
      • Getting Started
      • Installation
      • Operation
      • Troubleshooting
      • Specifications
    • Showstopper 4 Accessory Hub
      • Getting Started
      • Installation
      • Operation
      • Troubleshooting
      • Specifications
    • Showstopper Remote E-Stop
      • Installation
      • Making The Connections
      • Operation
      • Troubleshooting
      • Specifications
    • Control Connection
      • Installation
      • Making The connections
      • Operation
      • Troubleshooting
      • Specifications
    • Drive Connection
      • Installation
      • Making The connections
      • Operation
      • Troubleshooting
      • Specifications
    • Showstopper E-Stop Patch Panel
    • Showstopper Accessory Patch Panel
    • 🦺Safety Interlock
      • Safety Interlock Classic
      • Safety Interlock Pro
      • Safety Interlock Pro 4
      • 4-Axis Safety Interlock
    • Legacy
      • Showstopper 3 Base
      • Showstopper 3 Remote
      • Showstopper 3 E-Stop Patch Panel
      • Stage Manager
        • Getting Started
        • Installation
        • Making the Connections
        • Operation
        • Troubleshooting
        • Specifications
      • Showstopper 4 Consolette
        • Features
        • Making the Connections
          • Accessory Cable Connection
          • Ethernet Connection
          • Multiple Consolettes
        • On-Board Settings
        • Operation & Spikemark Integration
        • Connecting the Consolette to Spikemark
        • Jogging Motors
        • Running Cues
        • Emergency Stop
        • Updating Consolette Firmware
        • Troubleshooting
        • Physical Specifications
        • Drawings
  • Stagehand
    • Stagehand Firmware
      • Manually Updating a Stagehand Unipolar V6 Card via SD Card
      • Manually Updating a Stagehand Unipolar V6 Card via USB
    • Stagehand Parameters
      • Stagehand Pro 2 Parameters
      • Stagehand Pro 3/Pro 4 Parameters
      • Stagehand Pro 3e Parameters
      • Stagehand Pro 5 Parameters
      • Stagehand Apprentice 2 Parameters
      • Stagehand Apprentice
      • Stagehand AC - AKA: The Classic
      • Classic+ Parameters
      • Pro+ Parameters
      • Setting the C3 Value
      • Setting the C4 Value
      • All Clear/Parameter Clear
      • How to Use the Mitsubishi VFD Keypad
      • USB Parameter Sets
      • Parameter Library in Spikemark
    • Stagehand Apprentice
      • Getting Started
      • Installing the Stagehand
      • Making the Connections
      • Hooking up a motorized effect
      • Using the Stagehand
      • Troubleshooting
      • Technical Support
      • Specifications
    • Stagehand Apprentice DC
    • Stagehand Apprentice 2
      • Stagehand Apprentice 2: Features
      • Stagehand Apprentice 2: Installation
      • Stagehand Apprentice 2: Making The Connections
        • Stagehand Apprentice 2: Power Input
        • Stagehand Apprentice 2: Motor and Brake Output
        • Stagehand Apprentice 2: Sensor Input
        • Stagehand Apprentice 2: Interlock Inputs
        • Stagehand Apprentice 2: Ethernet Input
        • Stagehand Apprentice 2: Showstopper Emergency Stop Input
      • Stagehand Apprentice 2: Operation
      • Stagehand Apprentice 2: Troubleshooting
      • Stagehand Apprentice 2 Specifications
      • Stagehand Apprentice 2: Drawings
    • Stagehand FX
      • Getting Started
      • Making the Connections
      • Connecting an Effect
      • Operation
      • Troubleshooting
      • Specifications
    • Stagehand Hydraulic
      • Getting Started
      • Features
      • Installation
      • Operation
      • Troubleshooting
      • Technical Support
      • Specifications
      • Drawings
    • Stagehand Pro 3
    • Stagehand Pro 3E
    • Stagehand Pro 4
      • Stagehand Pro 4: Unpacking
      • Stagehand Pro 4: Installation
      • Stagehand Pro 4: Making The Connections
        • Stagehand Pro 4: Power Input
        • Stagehand Pro 4: Motor and Brake Output
        • Stagehand Pro 4: Sensor Input
        • Stagehand Pro 4: Interlock Inputs
        • Stagehand Pro 4: Ethernet Input
        • Stagehand Pro 4: Showstopper Emergency Stop Input
      • Stagehand Pro 4: Operation
        • Stagehand Pro 4: Powering Up
        • Stagehand 4: Machine Configuration
        • Stagehand Pro 4: Manual Operation (Jogging)
        • Stagehand Pro 4: Brake Test
        • Stagehand Pro 4: Connecting to Spikemark
        • Stagehand Pro 4: Status Displays
      • Stagehand Pro 4: Troubleshooting
        • Stagehand Pro 4: Recovering From Faults
        • Stagehand Pro 4: Monitoring Behavior
      • Stagehand Pro 4: Specifications
      • Stagehand Pro 4: Drawings
    • Stagehand Pro 5
      • Stagehand Pro 5: Features
      • Stagehand Pro 5: Installation
      • Stagehand Pro 5: Making The Connections
        • Stagehand Pro 5: Power Input
        • Stagehand Pro 5: Motor and Brake Output
        • Stagehand Pro 5: Sensor Input
        • Stagehand Pro 5: Interlock Inputs
        • Stagehand Pro 5: Ethernet Input
        • Stagehand Pro 5: Showstopper Emergency Stop Input
      • Stagehand Pro 5: Operation
      • Stagehand Pro 5: Troubleshooting
      • Stagehand Pro 5 Specifications
      • Stagehand Pro 5: Drawings
      • Stagehand Pro 5: Replace Control Card
    • Deck Chief 2
      • Getting Started
      • Features
      • Making the Connections
      • Using the Deck Chief
      • Troubleshooting
      • Specifications
    • Stagehand Classic+
    • Stagehand Pro+
    • Legacy Manuals
      • Deck Chief
        • Getting Started
        • Installation
        • Making the Connections
        • Using the Deck Chief
        • Troubleshooting
        • Specifications
        • Deck Chief Legacy Connections
      • Stagehand Mini^2
      • Stagehand Pro AC (Pro 2)
      • Stagehand AC
      • Stagehand Mini
      • Stagehand DC & DC Max
    • X-Groove Override
  • Machinery
    • Smart Chain Hoist
      • Getting Started
      • Installation
      • Making the Connections
      • Under The Hood
      • Troubleshooting
      • Specifications
    • Floorpocket
      • GettingStarted
      • Installation
      • Making the Connections
      • Prepping the Machine for Operation
      • VFD Settings
      • Troubleshooting
      • Specifications
    • Floorpocket v2
      • Get Started
        • Unpack
        • Installation Tools
      • Assembly
        • Base
        • Column Extension
        • Limit Cables
        • Roller Chain
      • Get Moving
        • Power Up
        • Platform
        • Stay Safe
        • Write Cues
      • Maintain the Machine
      • Troubleshooting
      • Floorpocket v2: Specifications
    • Pivot
      • Getting Started
      • Installation
      • Troubleshooting
      • Specifications
    • Pushstick
      • Getting Started
      • Installation
      • Making the Connections
      • Rigging the Pushstick
        • Rigging a Pushstick v2
      • Setting the Limits
      • Troubleshooting
      • Specifications
    • Pushstick Mini
      • Getting Started
      • Installation
      • Making the Connections
      • Rigging the Pushstick Mini
      • Troubleshooting
      • Technical Support
      • Specifications
    • Revolver
      • Installation
      • Making the Connections
      • Making It Move
        • Friction Wheel Tension Guide
      • Position Scaling
        • Encoder Finessing
      • Troubleshooting
      • Specifications
        • Drawing
      • Multi-Motor Configuration
      • Revolver v1 Manual
    • Rotator
      • Getting Started
      • Installation
      • Making the Connections
      • Troubleshooting
      • Technical Support
      • Specifications
    • Spotline
      • Getting Started
      • Installation
      • Rigging the Spotline
      • Operation
      • Troubleshooting
      • Specifications
    • Spotline V2
      • Spotline V2: Setup Process
      • Spotline V2: Installation
      • Spotline V2: Rigging the Spotline
      • Spotline V2: Operation
      • Spotline V2: Troubleshooting
      • Spotline V2 Accessories
      • Spotline V2: Maintenance
      • Spotline V2: Specifications
    • Spotline Mini v2
    • Spotline Practical
      • Practical v2
        • Getting Started
        • Installation
        • Rigging the Machine
        • Setting the Limits
        • Troubleshooting
        • Specifications
      • Practical v1
        • Getting Started
        • Installation
        • Operation
        • Troubleshooting
        • Specifications
    • Turntable Template
      • Overview
      • Bill Of Materials
      • Fabrication
      • Turntable Assembly and Installation
      • Turntable Assembly Guide
      • Tech Support
      • 20' Turntable Specs
      • Turtable Research Notes for Nerds
    • Retired
      • Curtain Call
      • Trickline
        • TricklineProductManualv1.0
        • Getting Started
        • Installation
        • Making the Connections
        • Troubleshooting
        • Specifications
      • Spotline Mini
        • Getting Started
        • Installation
        • Making the Connections
        • Rigging the Spotline Mini
        • Troubleshooting
        • Specifications
      • Pushstick Manual
    • Stromag Limits
  • Broadweigh Load Cells
Powered by GitBook
On this page
  • POWERING UP
  • Input Power
  • LX Power
  • E-Stop
  • Ethernet

Was this helpful?

  1. Machinery
  2. Spotline Practical
  3. Practical v1

Installation

PreviousGetting StartedNextOperation

Last updated 1 year ago

Was this helpful?

The Spotline Practical mounts to any standard 1-½” schedule 40 pipe with the two Mega Slim Couplers on the top of the machine. In addition there is a lifting/safety eye. Once the hoist is clamped to the pipe connect an appropriate secondary safety (not a lighting safety) between the lifting eye and the structure above.

The Spotline Practical weighs 75 pou

nds, has a working load limit of 15 pounds and a minimum load of 5lbs. If your lighting practical weighs more than 15 pounds you will need to use 2 Spotline Practicals connected with a spreader bar or the full-size Spotline hoist. If your practical weighs less than 5 pounds you will need to add ballast.

POWERING UP

The Spotline Practical is a smart machine, meaning the Stagehand controller is on board. You need to provide three connections to make the hoist run, and a fourth to provide power to your lighting fixture. Prior to making any power connections ensure the two breakers on the front of the Practical are in the off position.

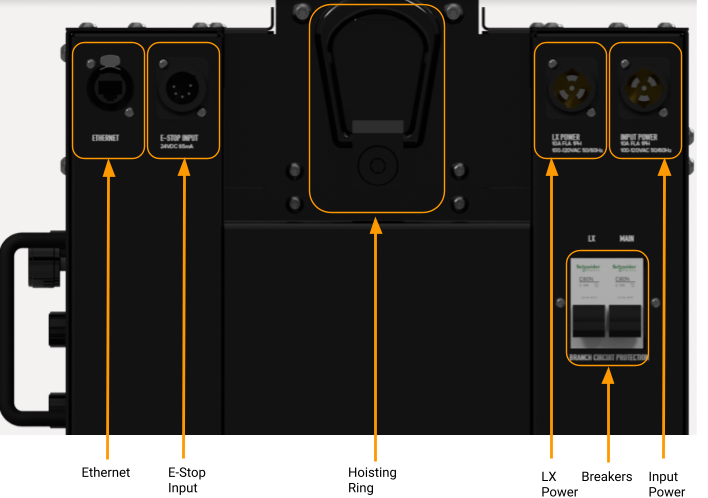

  1. Ethernet - Ethercon or standard RJ45 CAT5 Cable

  2. E-Stop Input - 5 pin XLR-M

  3. Hoisting/Safety Eye

  4. LX Power - Powercon True 1 (10A max)

  5. Input Power - Powercon True 1 (10A)

  6. Input power Breakers

Input Power

The Spotline Practical requires 120VAC, 10A input power. As an added feature there is local branch circuit protection built into the machine. The circuit breaker is a great way to know for certain that the machine will not move when servicing, and is also a convenient method to reboot the internal electronics if required.

The power inlet of the Spotline Practical is a Neutrik powerCON TRUE1 Appliance Inlet (NAC3MPX). The mating connection on the included power cord is a NAC3FX-W connector. The powerCON TRUE1 is is rated for breaking capacity, meaning it is safe to disconnect under load. The TRUE1 connectors are not compatible with standard “Blue” powerCON connectors. See below for wiring details inside the connector.

TERMINAL

WIRE COLOR

L - Line

Black

N - Neutral

White

G - Ground

Green

Detailed wiring instructions can be found in the Specifications section.\

LX Power

The Spotline Practical passes 120VAC, 10A power to the outlet at the end of its lifting line. As an added feature there is local branch circuit protection built into the machine. The circuit breaker is a great way to know for certain that the payload is not energized during loading/unloading.

The LX power inlet of the Spotline Practical is a Neutrik powerCON TRUE1 Appliance Inlet (NAC3MPX). The mating connection on the included power cord is a NAC3FX-W connector. The powerCON TRUE1 is rated for breaking capacity meaning it is safe to disconnect under load. The TRUE1 connectors are not compatible with standard “Blue” powerCON connectors. See below for wiring details inside the connector.

TERMINAL

WIRE COLOR

L - Line

Black

N - Neutral

White

G - Ground

Green

Detailed wiring instructions can be found in the Specifications section.

E-Stop

The Showstopper is Creative Conners, Inc’s emergency stop safety controller. Each Stagehand and smart machine requires a direct connection to a Showstopper 3 Base or Showstopper 3 Hub. These connections are made with a Neutrik 5-pin XLR cable. There’s no tech wizardry here, any 5-pin XLR cable (DMX) will work as long as the polarity is correct. See below for connection details.

PIN

CONNECTION

1

COM

2

N.C.

3

N.C.

4

N.C.

5

+24VDC

Ethernet

Although the Spotline Practical can be manually jogged from the onboard Stagehand controller, the real power is realized when connected through the network to Spikemark software. As with all Stagehands or Smart Machines, each controller must be connected to the network with an Ethernet (CAT5/CAT6) cable back to a network switch. The Spotline Practical has a Neutrik etherCON receptacle which accepts the rugged etherCON connector or a standard RJ45.
