Roller Chain

Step 1: Remove Lower Chain Gaurds

Step 2: Attach both chains to the top of the carriage

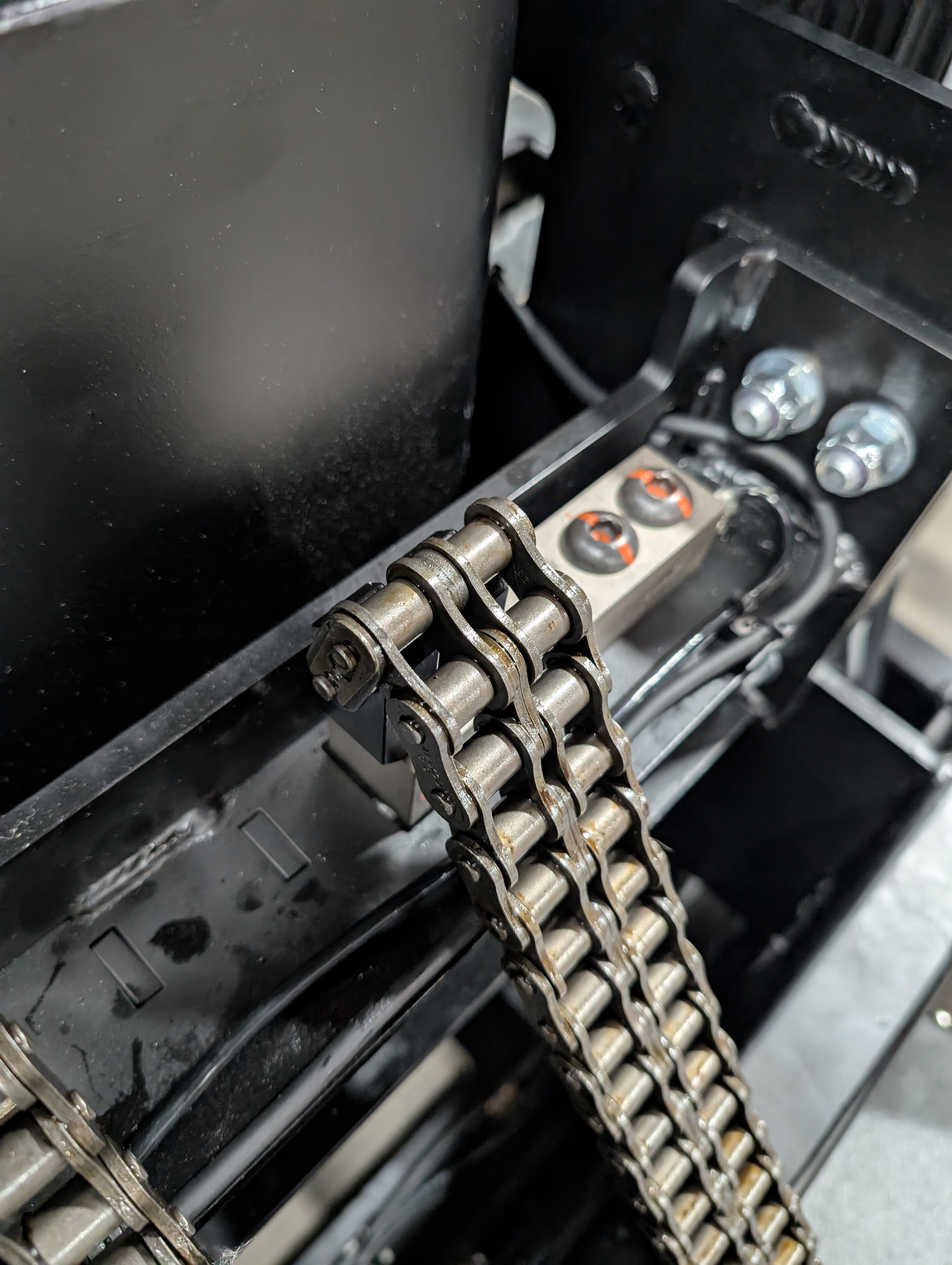

Attached the masterlink to the mount on top of the carriage

Step 3: Run First Chain

Run the first chain over the top of the idler sprocket on Column Extension.

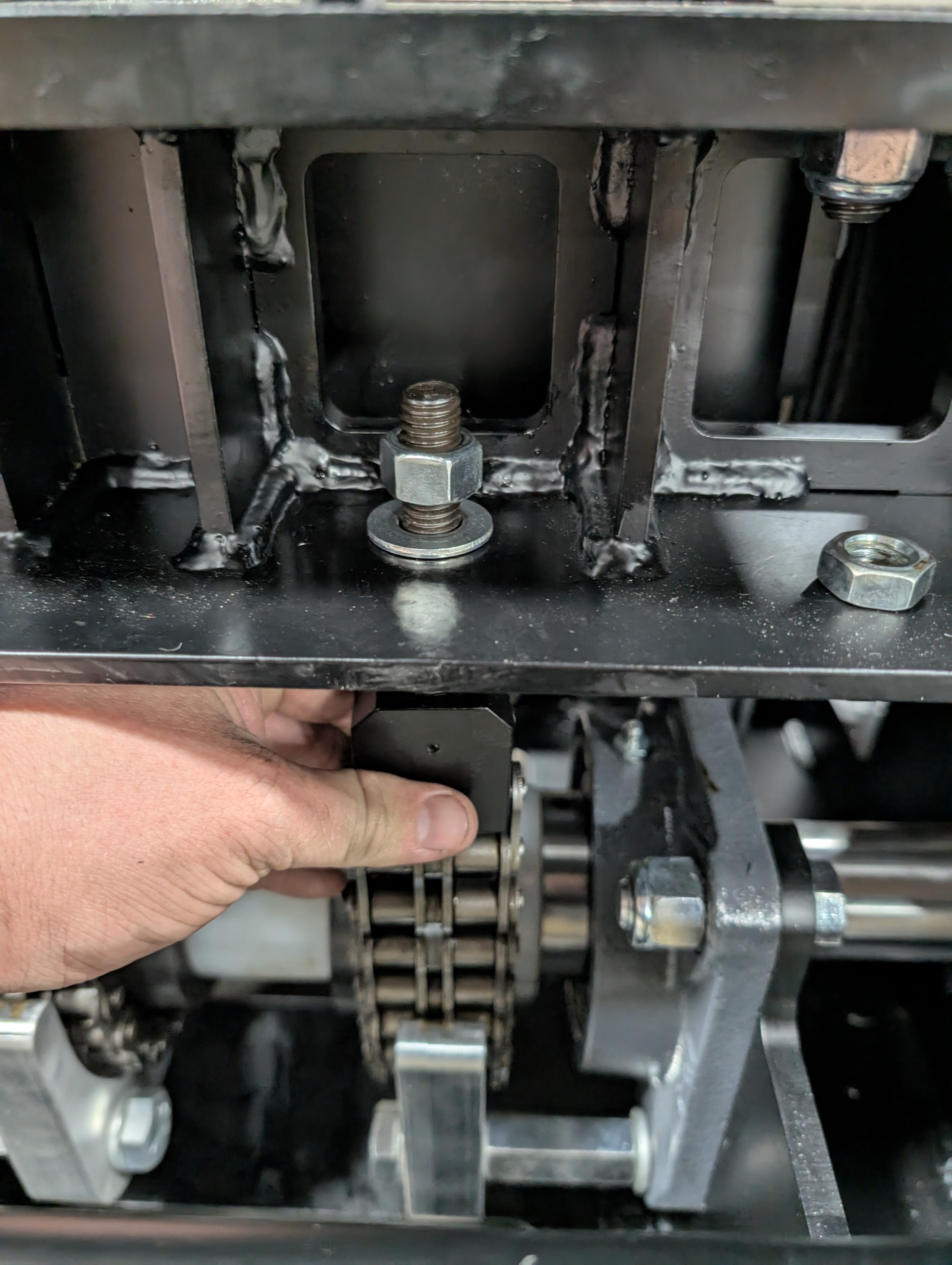

Step 4: Connect First Chain to Bottom Carriage

Step 5: Run Second Chain

Run the second chain over the white bushing between idler sprockets. Once chain is run, lift it onto the sprocket.

Step 6: Connect Second Chain to Bottom Carriage

Connect the chains to the bottom of the carriage.

Step 7: Re-Attach Chain Gaurds

Torque Spec: 112 ft/lbs
