# Deck Chief Legacy Connections

### Motor and Brake Connections <a href="#h.3dy6vkm" id="h.3dy6vkm"></a>

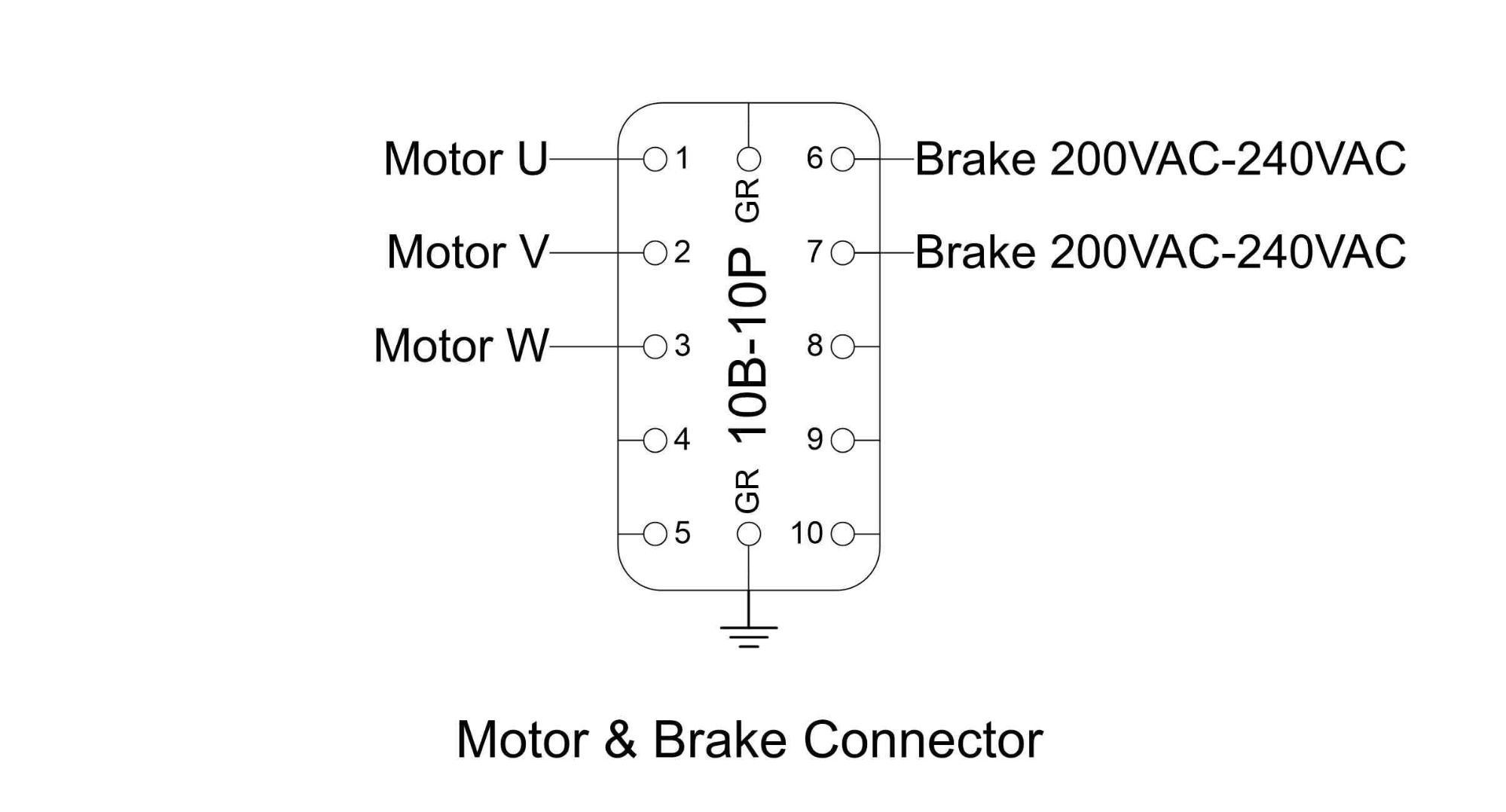

Power output connections for a motor and spring-set, fail-safe brake have been combined into a single connector. The connector is a 10-pin rectangular receptacle (Automation Direct Part #ZP-MC10B-1-FS010). The pin-out is shown below:

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-9a558eca64c025757129693748e8df5ef206bd24%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Motor and Brake Connections <a href="#h.3dy6vkm" id="h.3dy6vkm"></a>

Power output connections for a motor and spring-set, fail-safe brake have been combined into a single connector. The connector is a 10-pin rectangular receptacle (Automation Direct Part #ZP-MC10B-1-FS010). The pin-out is shown below:

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-96dec03bb36c83fd1bef6f9cff0f1844a6f65c95%2Fimage.png?alt=media" alt=""><figcaption><p>Legacy Deck Chief Motor/Brake Pinout</p></figcaption></figure>

{% hint style="warning" %}
**Note:** Pin 6 provides a constant +24VDC supply that can be used to power NPN (sinking) proximity switches with N.C. outputs such as Automation Direct Part #PFK1-BN-3H.
{% endhint %}

### Legacy Drawings

{% file src="/files/kdjzlwW7X6ObX6mEZGAy" %}

{% file src="/files/a7G2qd4mHOkcSxDte7kO" %}

{% file src="/files/XNsy51YUPKCtxO2eUksC" %}

{% file src="/files/0hfxeguCGhFX4yyjUO11" %}


---
