# Stagehand Pro 5: Making The Connections

## **Plug in your Stagehand**

**What you will need**

* [5hp AC Induction Machine](https://docs.creativeconners.com/docs/machinery)
* [Showstopper Base](https://docs.creativeconners.com/docs/showstopper/showstopper-base)
* [PC Computer](https://docs.creativeconners.com/docs/spikemark/spikemark-installation) running Spikemark Software
* Cables

### Back panel overview

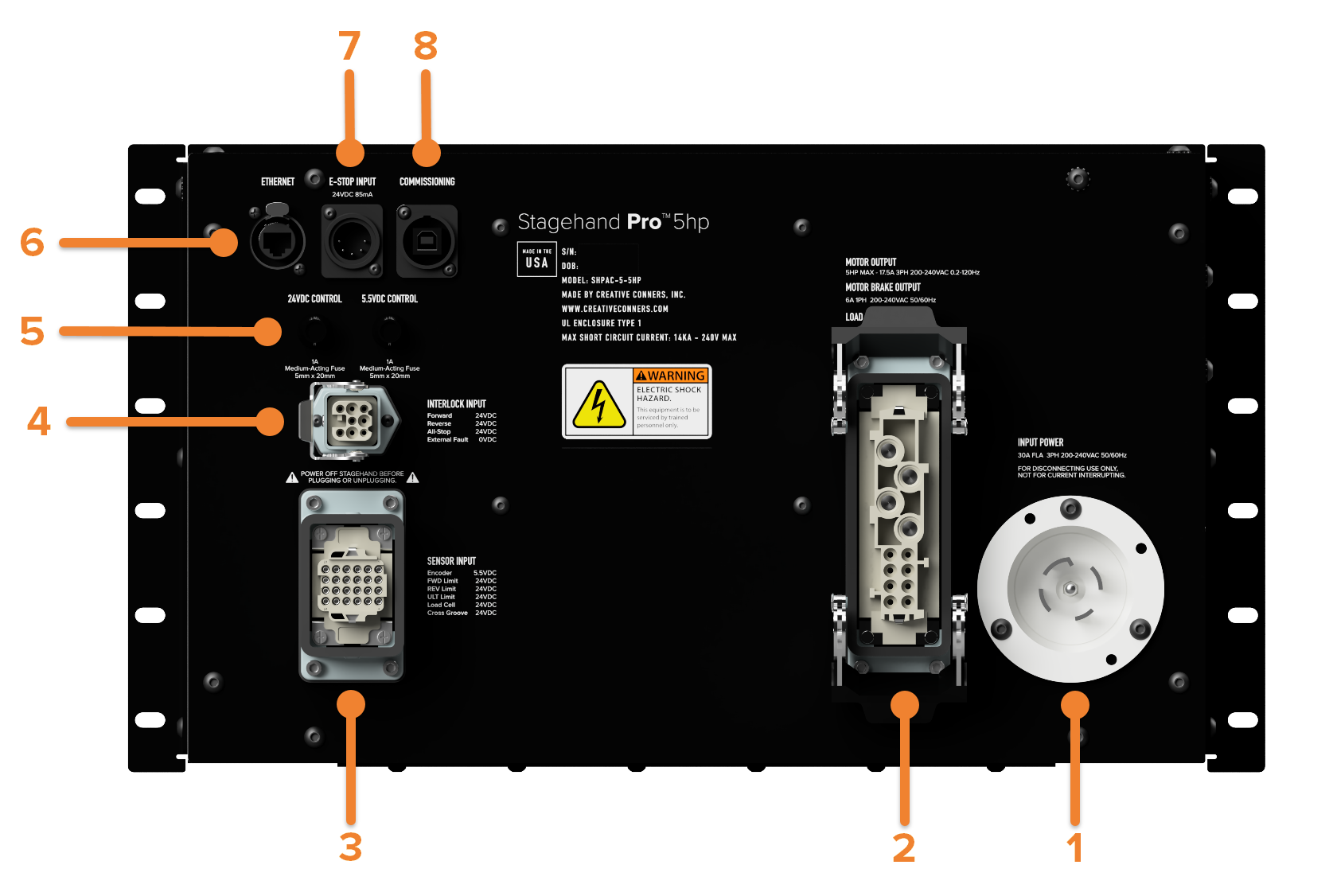

<figure><img src="https://3040525219-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MhFI6SSKpm8M7EkrYqp%2Fuploads%2Fgit-blob-d6d77981748779589d1cedbd7c1a3b8104b9e4d8%2FPro%205%20-%20Rear%20Annotation.png?alt=media" alt=""><figcaption></figcaption></figure>

1. [**Input Power**](https://docs.creativeconners.com/docs/stagehand/stagehand-pro-5/stagehand-pro-5-making-the-connections/stagehand-pro-5-power-input) - Plug in your L21-30 Cable to your power source
   1. Power source: 3 Phase 30 Amp 200-240VAC via L21-30 wall outlet or power distribution unit
2. [**Motor Output**](https://docs.creativeconners.com/docs/stagehand/stagehand-pro-5/stagehand-pro-5-making-the-connections/stagehand-pro-5-motor-and-brake-output) - Plug your Pro Motor Cable in between your machine and Stagehand Pro
3. [**Signal Input**](https://docs.creativeconners.com/docs/stagehand/stagehand-pro-5/stagehand-pro-5-making-the-connections/stagehand-pro-5-sensor-input) - Plug your Signal Cable in between your machine and Stagehand Pro
4. [**Interlock Input**](https://docs.creativeconners.com/docs/stagehand/stagehand-pro-5/stagehand-pro-5-making-the-connections/stagehand-pro-5-interlock-inputs)
   * If you are not using interlock switches or safety bumpers in your system, plug in the included Interlock Jumper
   * If you are using interlock switches or safety bumpers in your system, you will need to connect this to a [Safety Interlock Pro](https://docs.creativeconners.com/docs/showstopper/safety-interlock/safety-interlock-pro-4)
5. Fuse Protection - Control & Encoder Protection
6. [**Ethernet Input**](https://docs.creativeconners.com/docs/stagehand/stagehand-pro-5/stagehand-pro-5-making-the-connections/stagehand-pro-5-ethernet-input) - Using Ethernet Cables, plug in your Stagehand, Computer, and any other networked gear into a Network Switch. So you can Make It Move! Through [Spikemark!](https://docs.creativeconners.com/docs/spikemark/quickstart)
7. [**E-Stop Input**](https://docs.creativeconners.com/docs/stagehand/stagehand-pro-5/stagehand-pro-5-making-the-connections/stagehand-pro-5-showstopper-emergency-stop-input) - Plug in your Showstopper Cable (5 Pin XLR) between the Showstopper Base and the Stagehand pro
8. Commissioning port - Factory Use

## System Diagram
