# Stagehand Apprentice 2: Motor and Brake Output

The **Motor / Brake** output receptacle combines power for a motor a brake into a single, 6-pin connector. The CCEF-06 is used on both 1HP (120VAC) and 5HP (208VAC, 3P) Stagehand Apprentice controllers. The 5HP (\~400VAC, 3P) Stagehand Apprentice utilizes the Weiland 72.300.0653.0 insert.

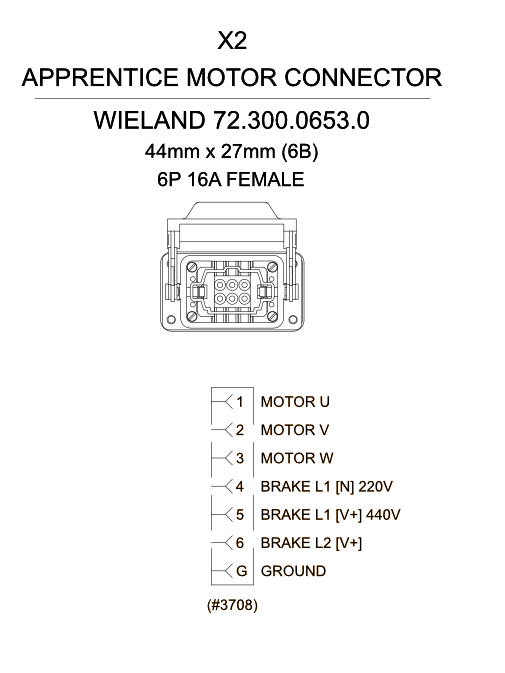

<div><figure><img src="/files/6HwDTYolOCeN6gfbdhPM" alt=""><figcaption><p>230VAC Motor Output: 115VAC/240VAC Brake</p></figcaption></figure> <figure><img src="/files/et85T6cKEcCz2Bdqp2tF" alt=""><figcaption><p>460VAC Motor Output:220VAC/460VAC Brake</p></figcaption></figure></div>

## Motor Output

The motor output is intended for connection to a **3-phase**, **inverter-duty**, **induction motor**. Depending on the input voltage, the attached motor will be wired for **230VAC** or **460VAC** power, and suitable for variable frequency from **0.5Hz-60Hz**.

If using a Stagehand Apprentice 2 with 120VAC or 208VAC 3P input power, connect the motor for 230VAC. If using a \~400VAC Stagehand Apprentice, connect the motor for 460VAC.

| Pin # | Purpose |
| :---: | ------- |
|   1   | Motor U |
|   2   | Motor V |
|   3   | Motor W |

## Motor Brake Output

The **Motor Brake** power circuit is either a 208/230VAC 1P or 120VAC 1P, with a fixed frequency that matches the input power source (*typically 60Hz in the United States and 50Hz abroad*).

| Pin # | 120/208VAC Input                             | 380-460VAC Input                           |
| :---: | -------------------------------------------- | ------------------------------------------ |
|   4   | Motor Brake L1 - 120VAC 6A Max               | Motor Brake L1 - 220VAC 6A Max             |
|   5   | Motor Brake L1 - 208/230VAC 6A Max           | Motor Brake L1 - 440VAC 6A Max             |
|   6   | Motor Brake - L2 (either 120VAC or \~200VAC) | Motor Brake L2 - either \~220VAC or 440VAC |

{% hint style="danger" %}
The 6A Max current rating for the **Motor Brake** output is 6A.
{% endhint %}


---
