> For the complete documentation index, see [llms.txt](https://docs.creativeconners.com/docs/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.creativeconners.com/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation.md). # Stagehand Pro 6: Electrical Connections ## Plug In Your Stagehand **What you will need** * [5hp AC Induction Machine](/docs/machinery.md) * [Showstopper Base](/docs/showstopper/showstopper-base.md) * [PC Computer](/docs/spikemark-6/system-requirements-and-install.md) running Spikemark Software * Cables ### System Diagram ### Back panel overview

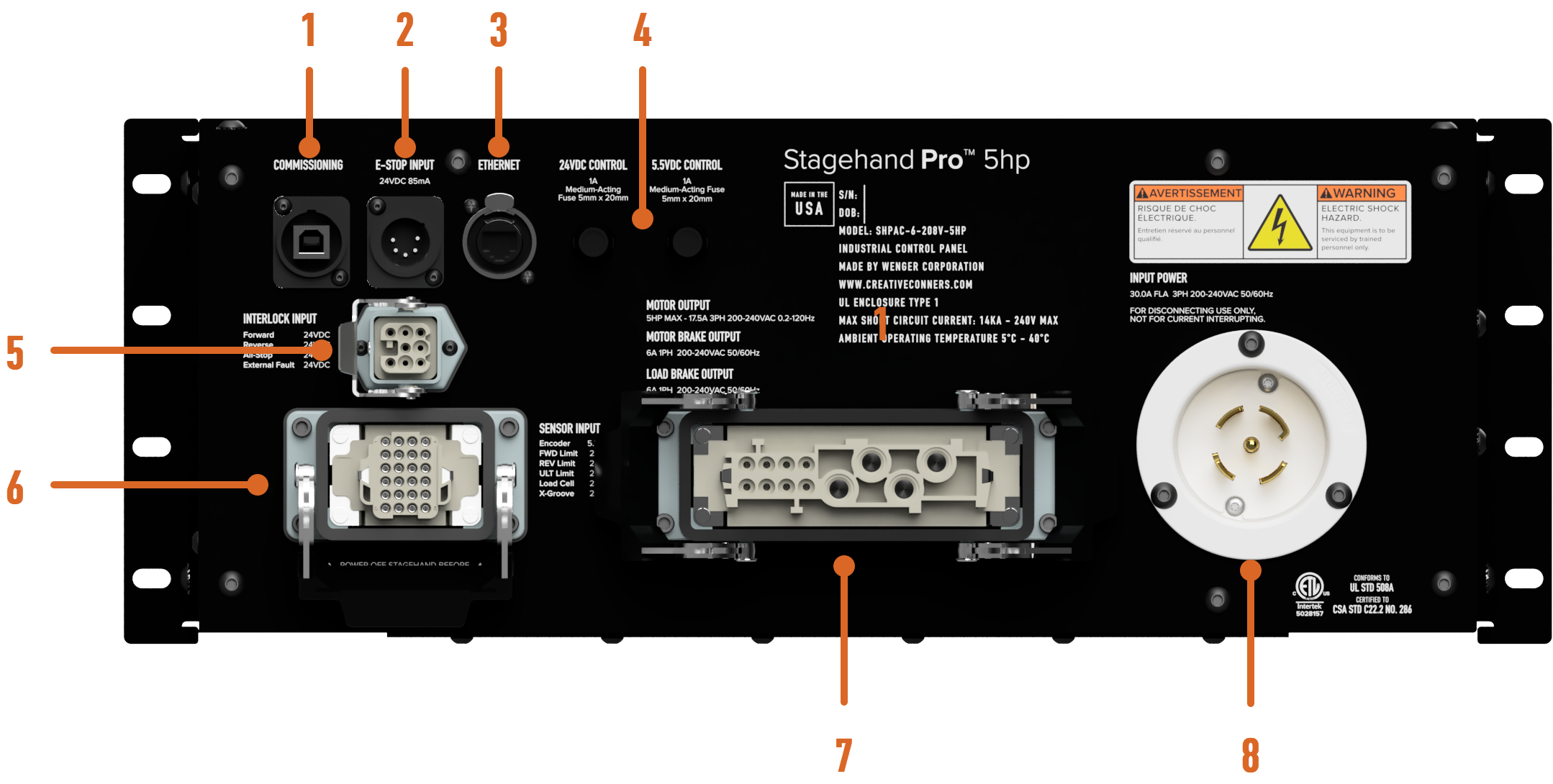

Stagehand connection callout
1. **Commissioning Port** - Factory Use 2. [**E-Stop Input**](/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation/stagehand-pro-6-e-stop-connection.md) - Plug in your Showstopper Cable (5 Pin XLR) between the Showstopper Base and the Stagehand Pro 3. [**Ethernet Input**](/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation/stagehand-pro-6-ethernet-connection.md) - Using Ethernet Cables, plug in your Stagehand, Computer, and any other networked gear into a Network Switch. 4. Fuse Protection - Control power and encoder protection. 5. [**Interlock Input**](/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation/stagehand-pro-6-interlock-connection.md) - If you are not using interlock switches or safety bumpers in your system, plug in the included Interlock Jumper. If you are using interlock switches or safety bumpers in your system, you will need to connect this to a [Safety Interlock Pro](/docs/showstopper/safety-interlock/safety-interlock-pro-4.md). 6. [**Sensor Input**](/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation/stagehand-pro-6-signal-connection.md) - Plug your Signal Cable in between your machine and Stagehand Pro. 7. [**Motor Output**](/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation/stagehand-pro-6-motor-connection.md) - Plug your Pro Motor Cable in between your machine and Stagehand Pro. 8. [**Input Power**](/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation/stagehand-pro-6-power-connection.md) - Plug in your power cable to your power source. --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation by asking a question. Perform an HTTP GET request on the following URL with the `ask` and `goal` query parameters: ``` GET https://docs.creativeconners.com/docs/stagehand/stagehand-pro-6/stagehand-pro-6-electrical-installation.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is what the user is ultimately trying to achieve, the reason they need the answer. Sharing it helps GitBook give you a better, more relevant answer. A goal is most helpful when it describes the outcome the user wants rather than restating the question. For example, with `ask=how do I create an API token`, a goal like `automate deployments from our CI pipeline` lets GitBook tailor the answer to that use case. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
