Installation

The Control Point intended for permanent installations and must be connected to a Showstopper Base or Showstopper Hub with Showstopper Accessory cable. The Ethernet connections must be conected to the network switch in order to communicate with Spikemark software.

Flush Mount Control Point

• Install your 8"x8" Electrical Box on or inside your wall

• Install conduit between the Showstopper Base or previous Showstopper Accessory hub

• Run Accessory Cable and Cat5 Cable through conduit

• Wire your cables into the back of the Control Point

• Attach the green ground wire from the faceplate to the box

• Attach the face plate to the box and and connect the terminator.

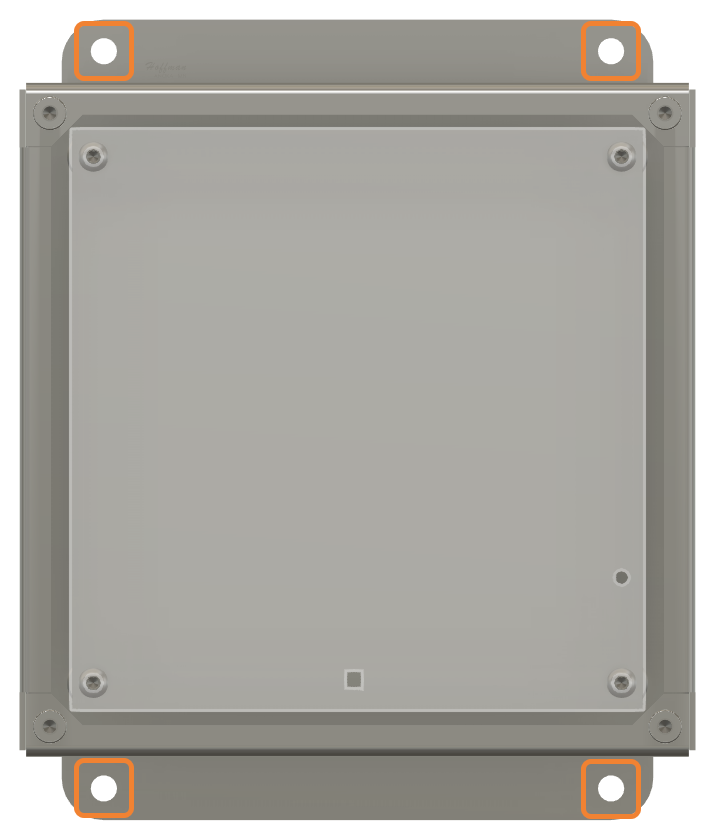

Surface Mount Control Point

• Install the box on the wall. Be sure to use appropriate wall anchors. Holes are cleared for 1/4" hardware


• Install conduit between the Showstopper Base or previous Showstopper Accessory

• Run Accessory Cable and QTY: 2 Cat5 Cable through conduit

• Wire your cables into the back of the Control Point

• Attach the green ground wire from the faceplate to the box

• Attach the face plate to the box and and connect the Showstopper Accessory Terminator and Pendant Terminator.
