Control Point

Getting Started

The Control Point is a Showstopper Accessory designed for permanent installations that allows for any control device to be connected into the system. Easily drop in a Spikemark computer, Console, Showstopper Hub, Remote E-Stop, or a Vantis Pendant without re-running cables! The Control Point even has a built in Remote E-Stop.

This guide will walk you through:

• Installation

• Operation

• Troubleshooting

• Specifications

• Drawing

What's Included

The Control Point will arrive as a partially pre-wired faceplate to be installed on a standard 3 gang wall box, or with a Surface Mount box.

Features

• 1 x EtherCON/RJ45 Ethernet ports

• 1 x Pendant Output

• 1 x Pendant Terminator

• 1 x Showstopper Accessory Output

• 1 x Showstopper Accessory Terminator on a lanyard

• 1 x E-Stop Button

Models

The Control Point comes in 2 configurations.

Flush Mount Control Point

The Flush Mount version is a faceplate with one EtherCON Port, one Pendant Port and the Showstopper Accessory socket and terminator. This is designed to be used with a standard 8"x8" Electircal Box that you can get from any electrical supplier.

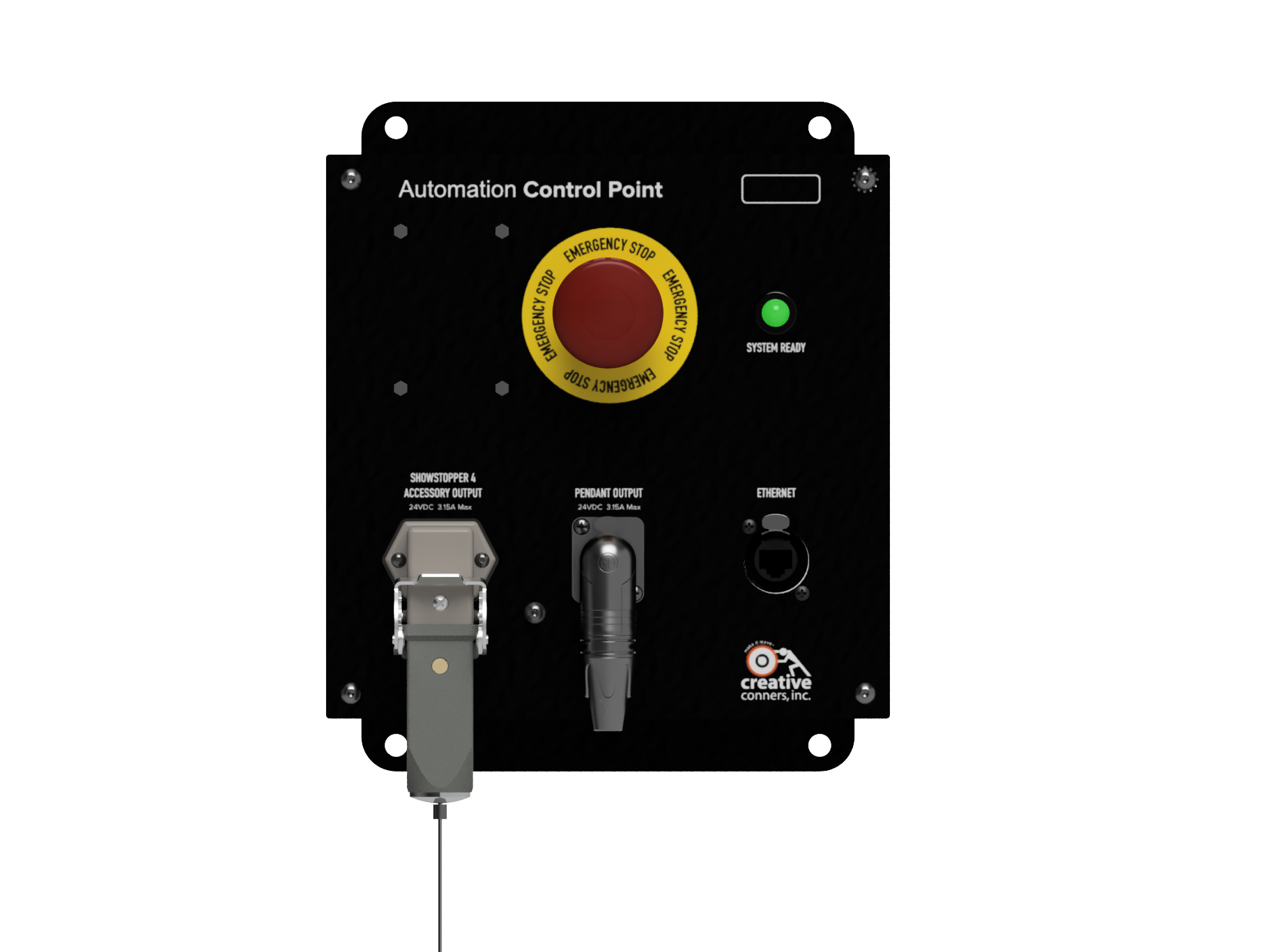

Surface Mount Control Point

The Surface Mount Control Point is the same faceplate, but also includes an enclosure that is mounted directly to your wall.
